NSN 5895-01-158-8728 MD772, DMF-2A-250/23077, DMF2A25023077
Product Details | FREQUENCY MIXER STAGE
5895-01-158-8728 An electronic device which mixes two or more input frequencies which are usually adjustable, combines them linearly in desired proportions to produce a common output signal which is a resultant of the input frequencies. Excludes items having integral oscillators. See also CONVERTER, FREQUENCY, ELECTRONIC and MIXER, CRYSTAL, WAVEGUIDE.20258950037Miscellaneous Communication Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: MD772, DMF-2A-250/23077, DMF2A25023077, FPCDB185, FP-CDB-185, 9545241, 954524-1, 5895-01-158-8728, 01-158-8728, 5895011588728, 011588728
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 30 JUL 1983 | 01-158-8728 | 00334 ( MIXER STAGE, FREQUENCY ) |

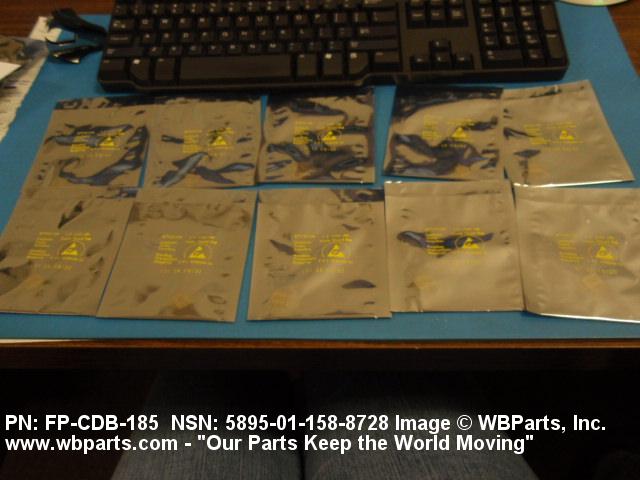

Drawings & Photos | NSN 5895-01-158-8728
Demand History | NSN 5895-01-158-8728
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5895-01-158-8728 | 2013-03-86 | 18 | DIBBS |
| 5895-01-158-8728 | 2013-03-78 | 18 | DIBBS |
| 5895-01-158-8728 | 2010-01-21 | 6 | United States |
| 5895-01-158-8728 | 2009-12-335 | 10 | United States |
| 5895-01-158-8728 | 2009-08-236 | 10 | DIBBS |
Cross Reference | NSN 5895-01-158-8728
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 954524-1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 954524-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| DMF-2A-250/23077 | 12457 | MERRIMAC INDUSTRIES, INC |
| FP-CDB-185 | 0N8W8 | CRANE ELECTRONICS, INC. DIV OLEKTRON |
| FP-CDB-185 | 32252 | SIGNAL TECHNOLOGY CORP |
| MD772 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5895-01-158-8728
Related Products | NSN 5895-01-158-8728
Technical Data | NSN 5895-01-158-8728
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| FREQUENCY PER CHANNEL | 500.0 KILOHERTZ MINIMUM 1ST INPUT CHANNEL AND 500.0 MEGAHERTZ MAXIMUM 1ST INPUT CHANNEL 500.0 KILOHERTZ MINIMUM 2ND INPUT CHANNEL AND 500.0 MEGAHERTZ MAXIMUM 2ND INPUT CHANNEL 0.0 HERTZ MINIMUM 1ST OUTPUT CHANNEL AND 500.0 MEGAHERTZ MAXIMUM 1ST OUTPUT CHANNEL 0.0 HERTZ MINIMUM 2ND OUTPUT CHANNEL AND 500.0 MEGAHERTZ MAXIMUM 2ND OUTPUT CHANNEL |
| AVERAGE POWER RATING PER CHANNEL | 400.0 MILLIWATTS INPUT 400.0 MILLIWATTS INPUT 400.0 MILLIWATTS OUTPUT 400.0 MILLIWATTS OUTPUT |
| IMPEDANCE RATING PER CHANNEL | 50.000 OHMS 1ST INPUT CHANNEL 50.000 OHMS 2ND INPUT CHANNEL 50.000 OHMS 1ST OUTPUT CHANNEL 50.000 OHMS 2ND OUTPUT CHANNEL |
| MAXIMUM CONTINUOUS OPERATING TIME IN HOURS | 30000.0 |
| AVERAGE LIFE MEASUREMENT | INDEFINITE |
| MAXIMUM OPERATING ALTITUDE RATING | 10000.0 FEET |
| OPERATING TEMP RANGE | -18.0 TO 85.0 DEG CELSIUS |
| CONNECTION TYPE AND LOCATION | WIRE LEAD TERMINALS LEFT SIDE AND WIRE LEAD TERMINALS RIGHT SIDE |
| CONNECTION CONTACT TYPE AND QUANTITY | 8 WIRE LEAD TERMINALS EXTERNAL |
| INCLOSURE TYPE | ENCAPSULATED |
| ENVIRONMENTAL PROTECTION | FUNGUS PROOF AND MOISTURE PROOF AND SALT SPRAY RESISTANT AND SHOCK RESISTANT AND VIBRATION |
| INSTALLATION DESIGN | PANEL |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 0.490 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.150 INCHES MAXIMUM |
| OVERALL WIDTH | 0.365 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| IDENTIFICATION DESIGNATOR | 954524-1-49956 |
| III END ITEM IDENTIFICATION | MIXER STAGE FREQUENCY AN/TRC-170 |
