NSN 5895-01-421-1203 40004004006, 4000-40040-06, 40004004012
Product Details | FREQUENCY MIXER STAGE
5895-01-421-1203 An electronic device which mixes two or more input frequencies which are usually adjustable, combines them linearly in desired proportions to produce a common output signal which is a resultant of the input frequencies. Excludes items having integral oscillators. See also CONVERTER, FREQUENCY, ELECTRONIC and MIXER, CRYSTAL, WAVEGUIDE.20258950037Miscellaneous Communication Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: 40004004006, 4000-40040-06, 40004004012, 4000-40040-12, 5895-01-421-1203, 01-421-1203, 5895014211203, 014211203
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01 NOV 1995 | 01-421-1203 | 00334 ( MIXER STAGE, FREQUENCY ) |
Drawings & Photos | NSN 5895-01-421-1203
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5895-01-421-1203
Technical Data | NSN 5895-01-421-1203
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| AVERAGE LIFE MEASUREMENT | NOT RATED |
| INCLOSURE TYPE | ENCASED |
| INSTALLATION DESIGN | MECHANICAL |

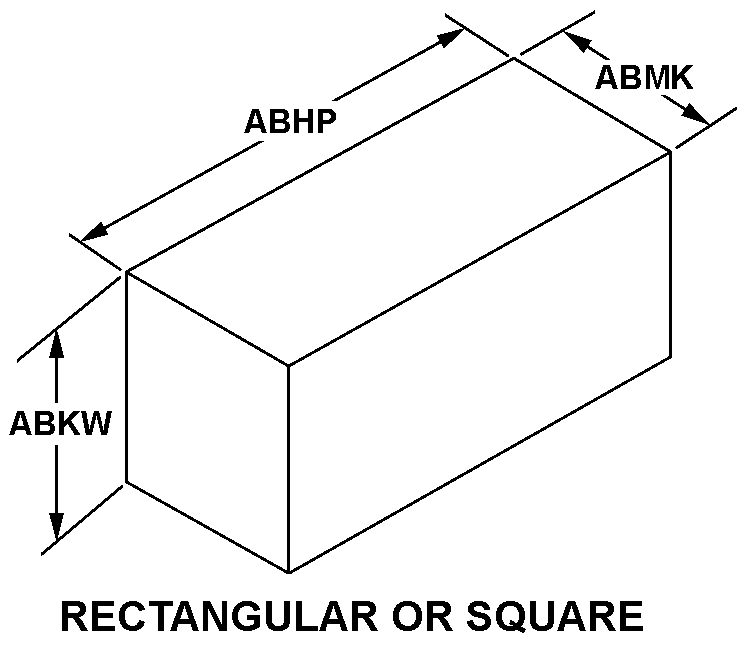

| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.400 INCHES MAXIMUM |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| SPECIAL FEATURES | ELECTROSTATIC DISCHARG SENSITIVE |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | E-3,ESM PROD GRP B |
| III SUPPLEMENTARY FEATURES | DIFFERENTIATED FROM -05 BY PHYSICAL CONFIGURATION |
| MANUFACTURERS CODE | 32562 |
| DESIGN CONTROL REFERENCE | 4000-40040-12 |
