NSN 5895-01-159-4276 WJM9D, WJ-M9D, 77C718001P001
Product Details | FREQUENCY MIXER STAGE
5895-01-159-4276 An electronic device which mixes two or more input frequencies which are usually adjustable, combines them linearly in desired proportions to produce a common output signal which is a resultant of the input frequencies. Excludes items having integral oscillators. See also CONVERTER, FREQUENCY, ELECTRONIC and MIXER, CRYSTAL, WAVEGUIDE.20258950037Miscellaneous Communication Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: WJM9D, WJ-M9D, 77C718001P001, 5895-01-159-4276, 01-159-4276, 5895011594276, 011594276
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 08 AUG 1983 | 01-159-4276 | 00334 ( MIXER STAGE, FREQUENCY ) |

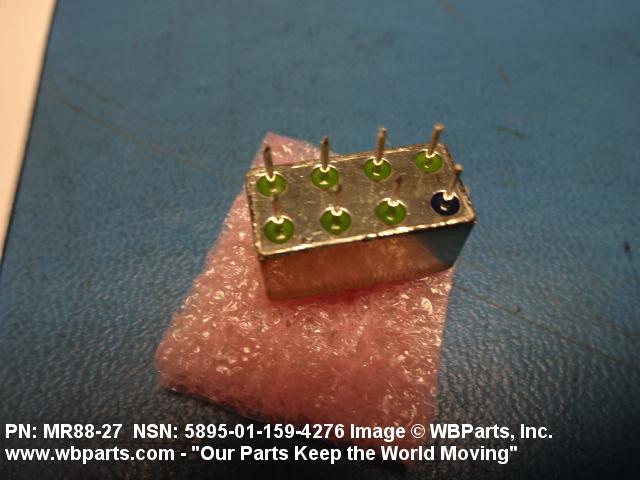

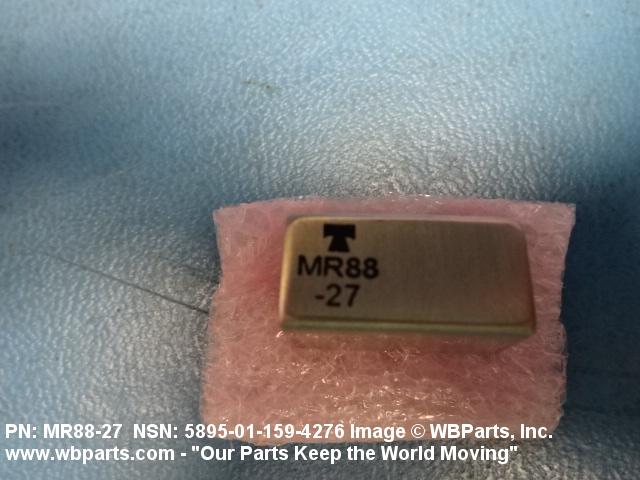

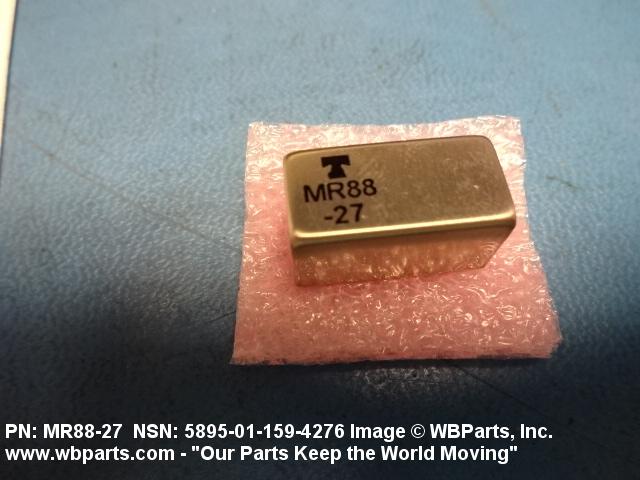

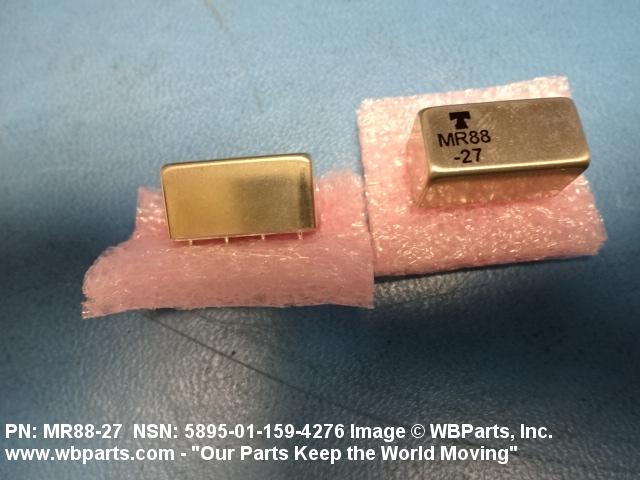

Drawings & Photos | NSN 5895-01-159-4276
Demand History | NSN 5895-01-159-4276
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5895-01-159-4276 | 2023-12-338 | 1 | DIBBS |
| 5895-01-159-4276 | 2021-09-245 | 1 | United States |
| 5895-01-159-4276 | 2018-06-176 | 2 | United States |
| 5895-01-159-4276 | 2018-04-101 | 2 | DIBBS |
| 5895-01-159-4276 | 2012-05-148 | 35 | EG |
| 5895-01-159-4276 | 2011-11-305 | 50 | US |
| 5895-01-159-4276 | 2011-11-305 | 50 | US |
| 5895-01-159-4276 | 2009-05-150 | 3 | DIBBS |
| 5895-01-159-4276 | 2009-05-125 | 2 | DIBBS |
| 5895-01-159-4276 | 2009-04-104 | 10 | South Korea |
| 5895-01-159-4276 | 2008-12-343 | 35 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5895-01-159-4276
Related Products | NSN 5895-01-159-4276
Technical Data | NSN 5895-01-159-4276
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| AVERAGE POWER RATING PER CHANNEL | 400.0 MILLIWATTS INPUT |
| OPERATING CONTROL METHOD | AUTOMATIC |
| CONTROL TYPE | LOCAL |
| AVERAGE LIFE MEASUREMENT | NOT RATED |
| MAXIMUM OPERATING ALTITUDE RATING | 15000.0 FEET |
| OPERATING TEMP RANGE | -57.0 TO 85.0 DEG CELSIUS |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT SPRAY RESISTANT AND SHOCK RESISTANT AND VIBRATION |
| INSTALLATION DESIGN | MODULE |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |

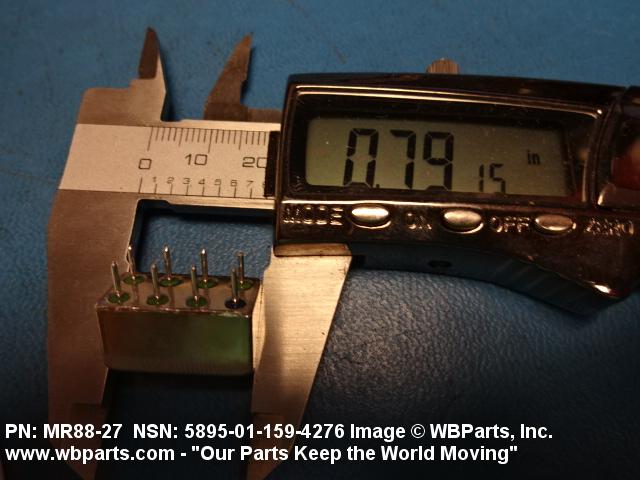

| OVERALL LENGTH | 0.770 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |

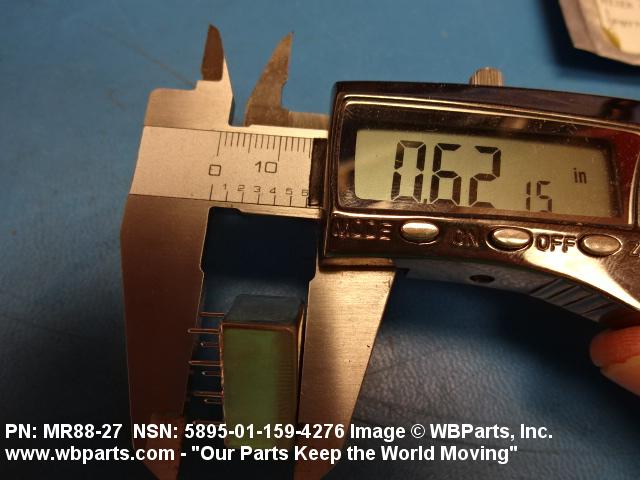

| OVERALL HEIGHT | 0.565 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |

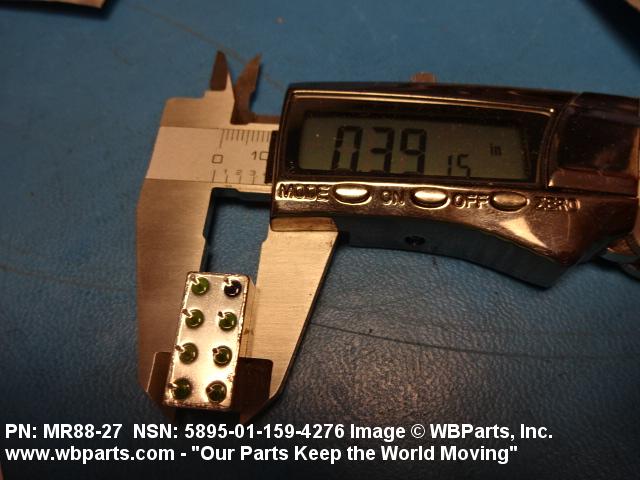

| OVERALL WIDTH | 0.370 INCHES MINIMUM AND 0.470 INCHES MAXIMUM |
| IDENTIFICATION DESIGNATOR | 77C718001P001-03538 |
| III END ITEM IDENTIFICATION | RADAR SYSTEM AN/FPS-117 |
