NSN 5820-01-086-8174 RT980AGRC171V, 6221628002, 622-1628-002
Product Details | RADIO RECEIVER-TRANSMITTER
5820-01-086-8174 A single component capable of performing the functions of a RECEIVER, RADIO; and TRANSMITTER, RADIO.20358200061Radio and Television Communication Equipment, Except Airborne58210054Radio and Television Communication Equipment, Airborne
Part Alternates: RT980AGRC171V, 6221628002, 622-1628-002, 5820-01-086-8174, 01-086-8174, 5820010868174, 010868174
Communication, Detection, and Coherent Radiation Equipment | Radio and Television Communication Equipment, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 05 DEC 1979 | 01-086-8174 | 19506 ( RECEIVER-TRANSMITTER, RADIO ) |

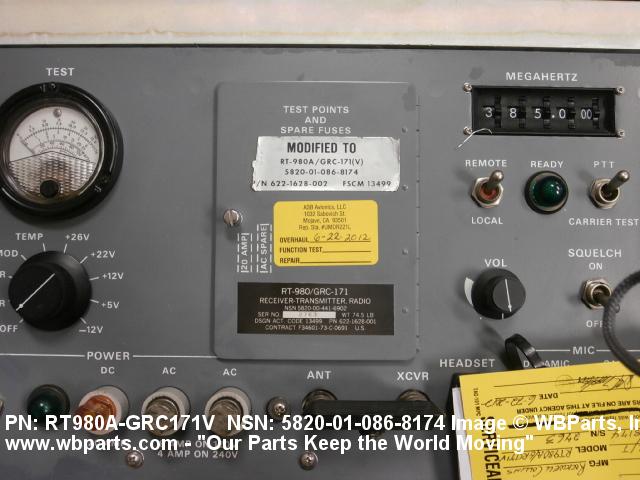

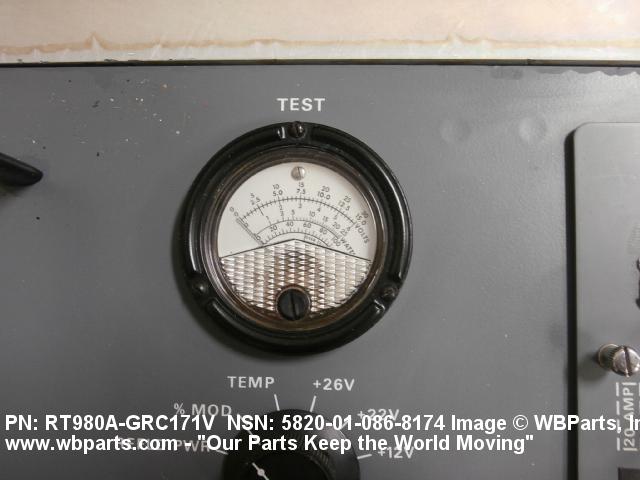

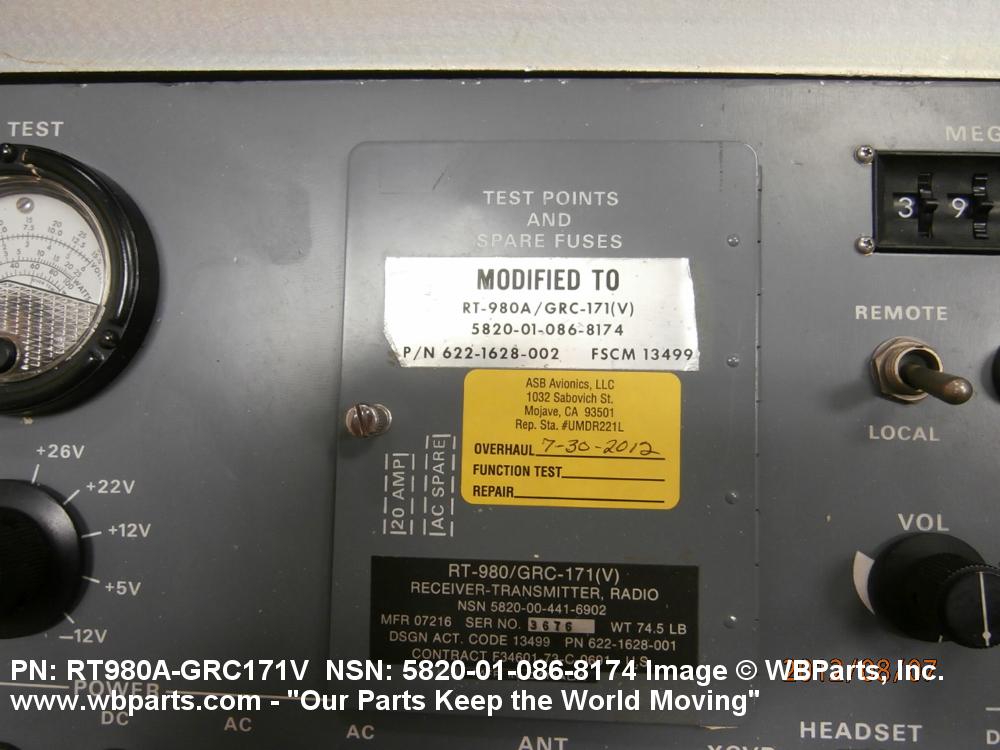

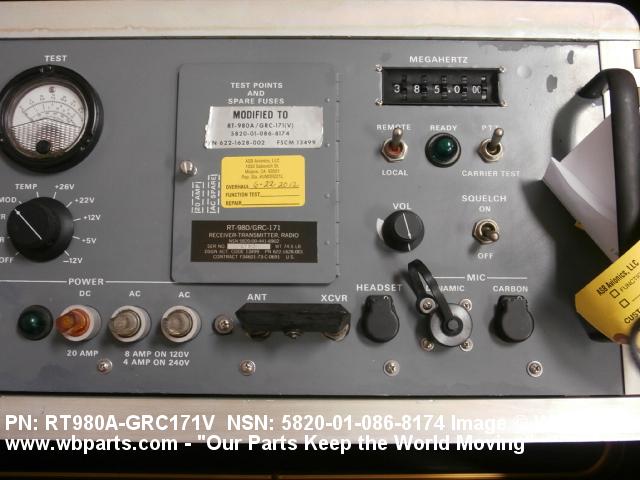

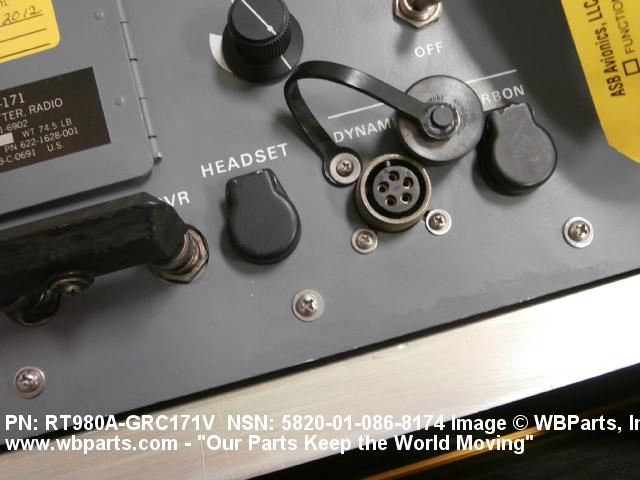

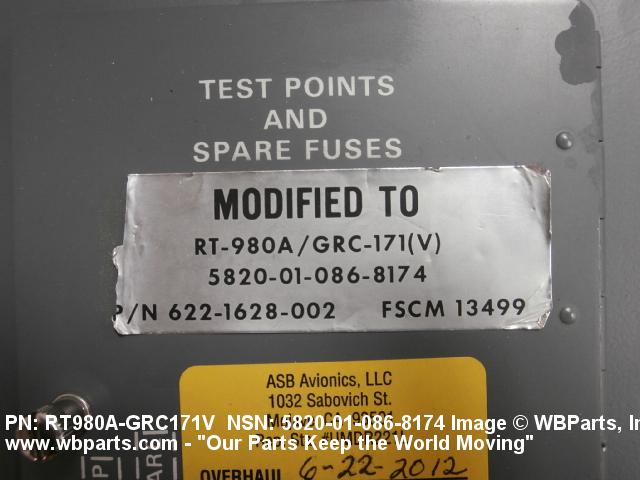

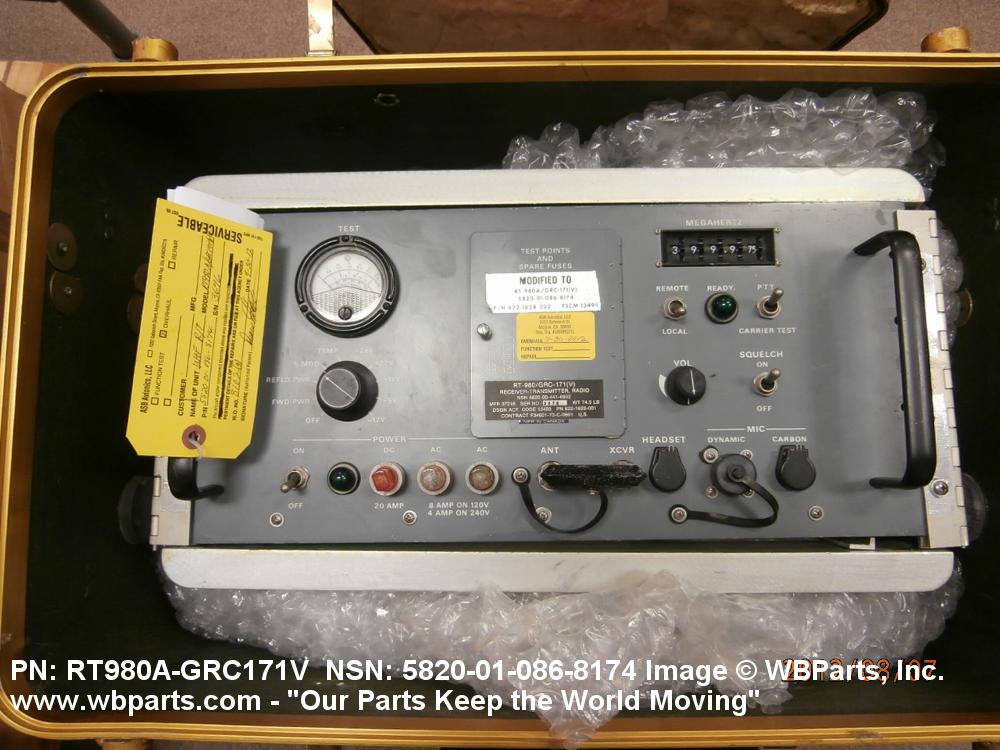

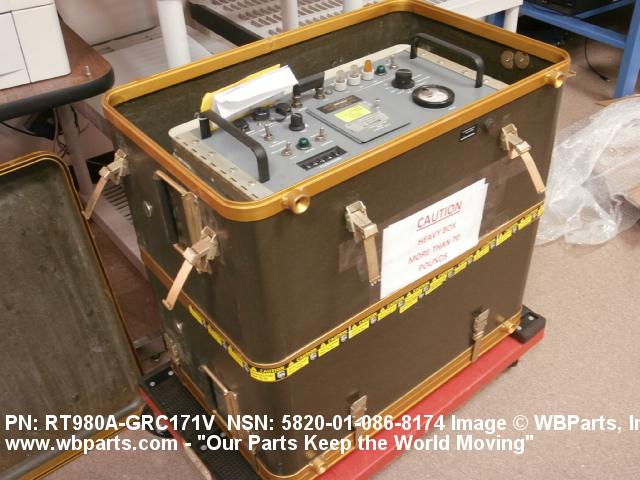

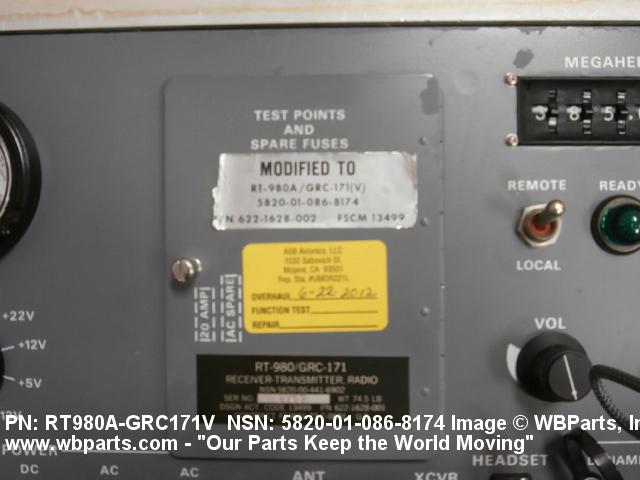

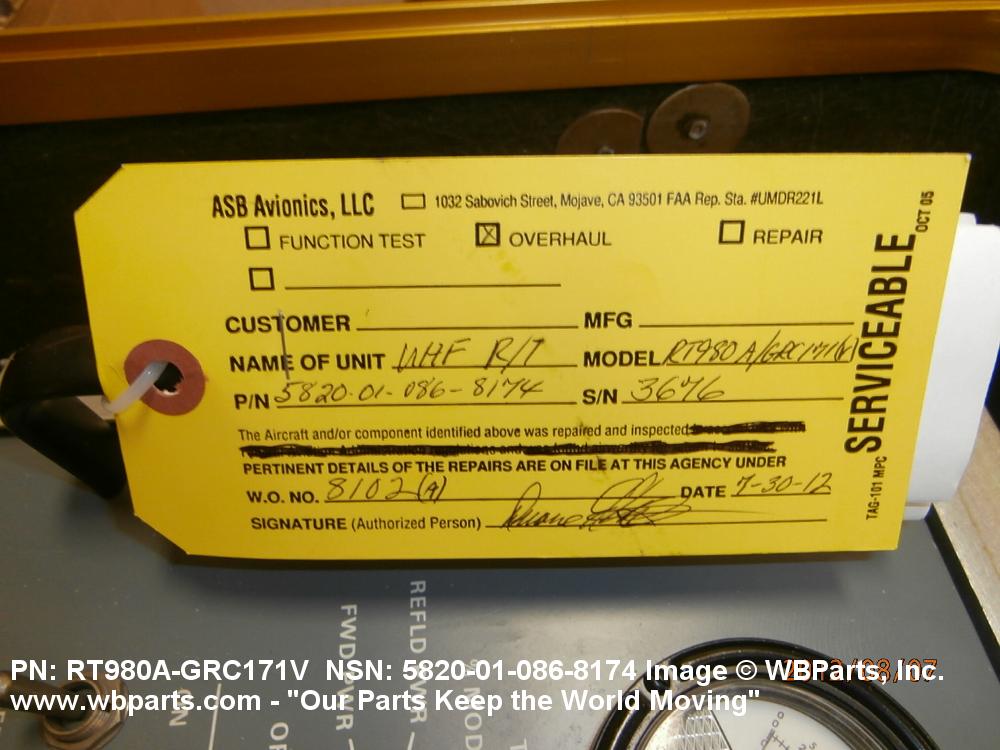

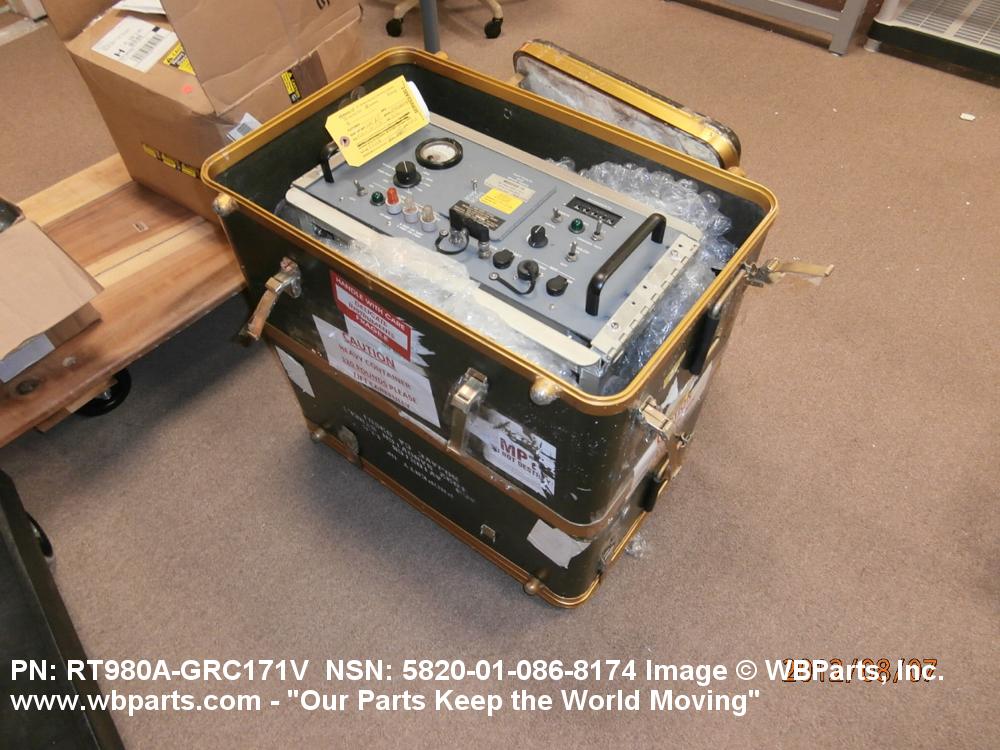

Drawings & Photos | NSN 5820-01-086-8174
Demand History | NSN 5820-01-086-8174
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5820-01-086-8174 | 2024-06-165 | 35 | US |
| 5820-01-086-8174 | 2017-11-313 | 1 | US |
| 5820-01-086-8174 | 2012-06-158 | 1 | us |
| 5820-01-086-8174 | 2012-03-88 | 1 | us |
| 5820-01-086-8174 | 2012-03-88 | 2 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5820-01-086-8174
Related Products | NSN 5820-01-086-8174
Technical Data | NSN 5820-01-086-8174
| Characteristic | Specifications |
|---|---|
| JOINT ELECTRONICS TYPE DESIGNATION SYSTEM ITEM NAME | RECEIVER TRANSMITTER |
| JOINT ELECTRONICS TYPE DESIGNATION SYSTEM ITEM TYPE NUMBER | RT-980A/GRC-171(V) |
| TRANSMITTER EMISSION TYPE | F3 AND A3 |
| POWER OUTPUT | 25.000 WATTS NOMINAL |
| OUTPUT FREQUENCY RATING | 225.000 MEGAHERTZ MINIMUM AND 399.975 MEGAHERTZ MAXIMUM |
| TRANSMITTER BAND QUANTITY | 1 |
| TRANSMITTER CHANNEL QUANTITY | 7000 |
| RECEIVER EMISSION TYPE | F3 AND A3 |
| INPUT FREQUENCY RATING | 225.000 MEGAHERTZ MINIMUM AND 399.975 MEGAHERTZ MAXIMUM |
| RECEIVER BAND QUANTITY | 1 |
| RECEIVER CHANNEL QUANTITY | 7000 |
| SPECIAL FEATURES | CAN BE OPERATED REMOTELY OVER A CABLE DISTANCE OF UP TO 600 FT. |
| III SUPPLEMENTARY FEATURES | HAS A 25 KHZ CHANNELIZATION MODIFICATION INSTALLED |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 622-1628-002 |
Restrictions/Controls & Freight Information | NSN 5820-01-086-8174
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS SUB1 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5820-01-086-8174
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RY | TG:RADIO/TV (FSC RESIDUAL MMAC) |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7E | Depot level reparable ordnance equipment, ordnance repair parts and air missile repair parts related to Naval Air Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
