NSN 5670-01-073-4513 5009X60, 500-9X60, 01-073-4513
Product Details | NONSKID METALLIC TREAD
5670-01-073-4513 The upper, horizontal part of a step upon which the foot is placed, or a section placed upon or set into a deck, walkway, or coaming, made of metal, and corrugated or otherwise specially constructed to resist skidding. May have added material or inserts such as wood strip or abrasive particles to prevent sparking. Excludes door saddle, floor plates, gratings and elevator sills.20320900039Miscellaneous Ship and Marine Equipment25100052Vehicular Cab, Body, and Frame Structural Components56700034Building Components, Prefabricated
Part Alternates: 5009X60, 500-9X60, 5670-01-073-4513, 01-073-4513, 5670010734513, 010734513
Construction and Building Materials | Building Components, Prefabricated
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 16 MAR 1979 | 01-073-4513 | 11472 ( TREAD, METALLIC, NONSKID ) |

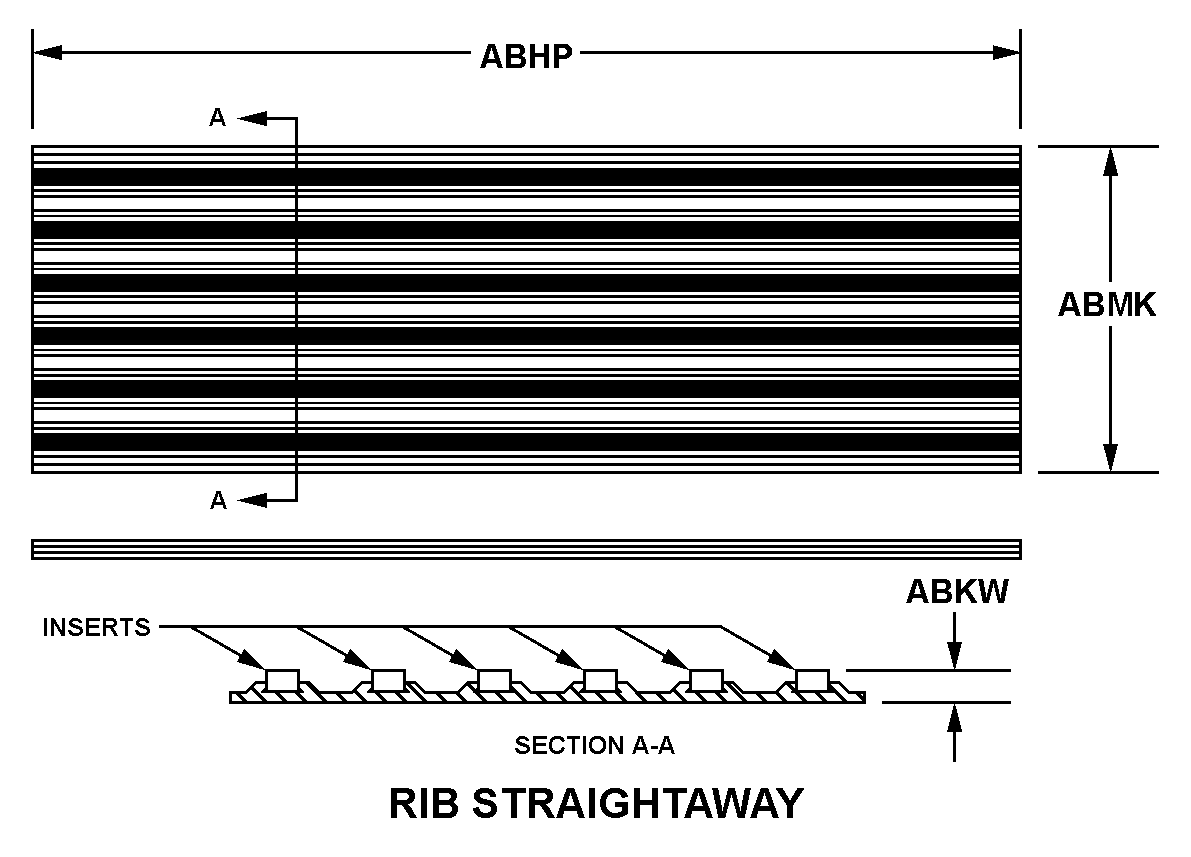

Drawings & Photos | NSN 5670-01-073-4513
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5670-01-073-4513
Technical Data | NSN 5670-01-073-4513
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 9 RIB STRAIGHTAWAY |
| OVERALL LENGTH | 60.000 INCHES NOMINAL |
| OVERALL WIDTH | 9.000 INCHES NOMINAL |
| BASIC MATERIAL | ALUMINUM ALLOY |
| INSERT/ADDITIVE TYPE | ALUMINUM OXIDE ABRASIVE |
| MOUNTING FEATURE | INCLUDED |
| MOUNTING METHOD | TOP DRILLED-COUNTERSUNK HOLES |
Restrictions/Controls & Freight Information | NSN 5670-01-073-4513
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
