NSN 2040-00-753-2868 S1604860041TYPEGPC48, S1604-860041TYPEGPC48, 51604860041
Product Details | NONSKID METALLIC TREAD
2040-00-753-2868 The upper, horizontal part of a step upon which the foot is placed, or a section placed upon or set into a deck, walkway, or coaming, made of metal, and corrugated or otherwise specially constructed to resist skidding. May have added material or inserts such as wood strip or abrasive particles to prevent sparking. Excludes door saddle, floor plates, gratings and elevator sills.20320900039Miscellaneous Ship and Marine Equipment25100052Vehicular Cab, Body, and Frame Structural Components56700034Building Components, Prefabricated
Part Alternates: S1604860041TYPEGPC48, S1604-860041TYPEGPC48, 51604860041, 5-1604-860041, 2040-00-753-2868, 00-753-2868, 2040007532868, 007532868
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 01 JAN 1962 | 00-753-2868 | 11472 ( TREAD, METALLIC, NONSKID ) |

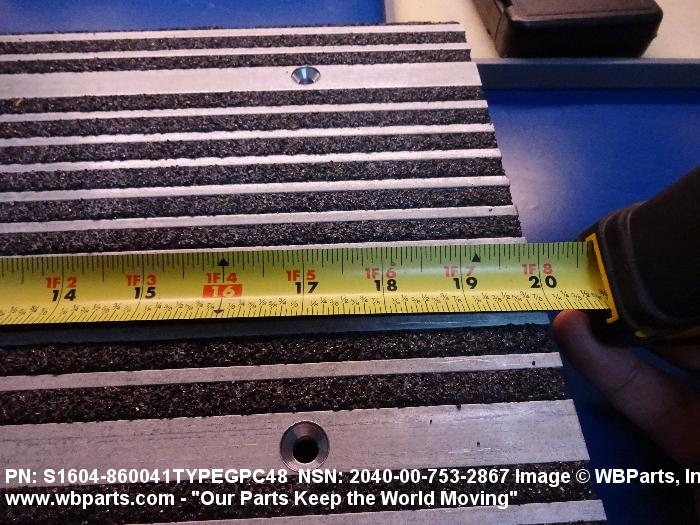

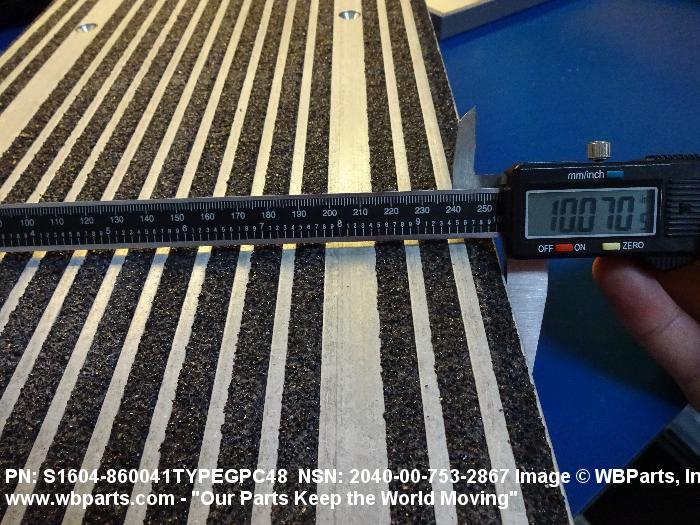

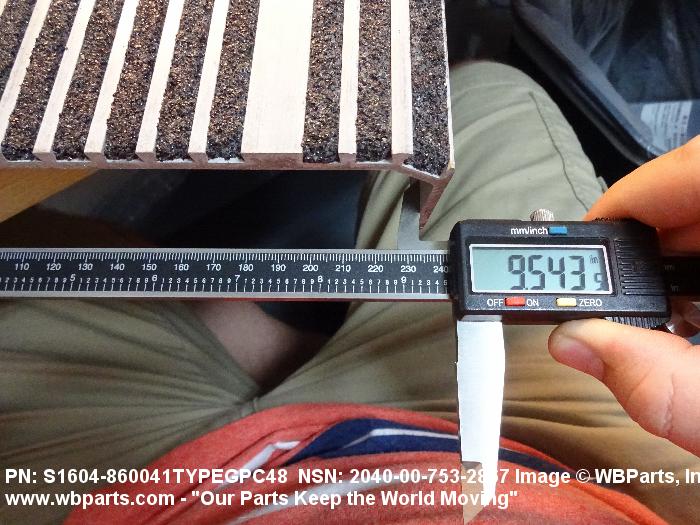

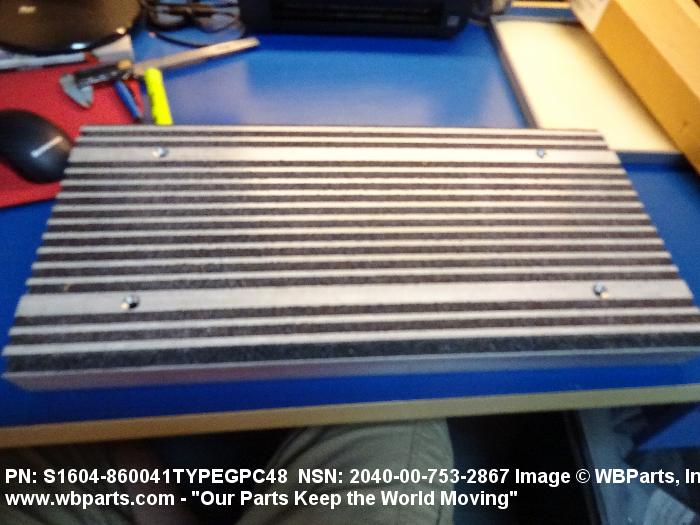

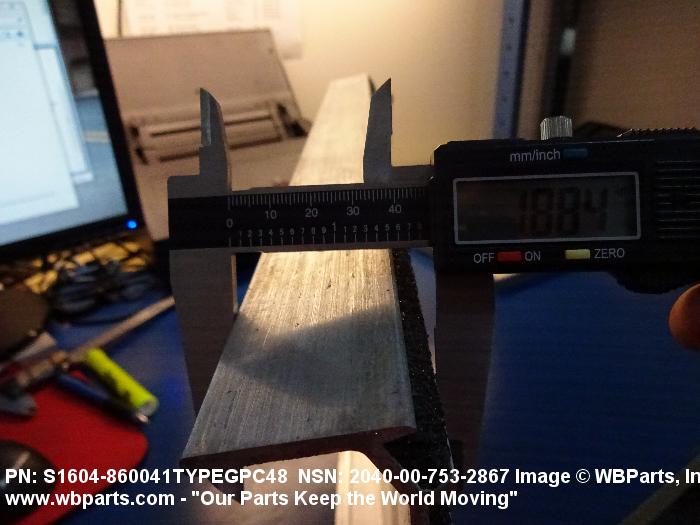

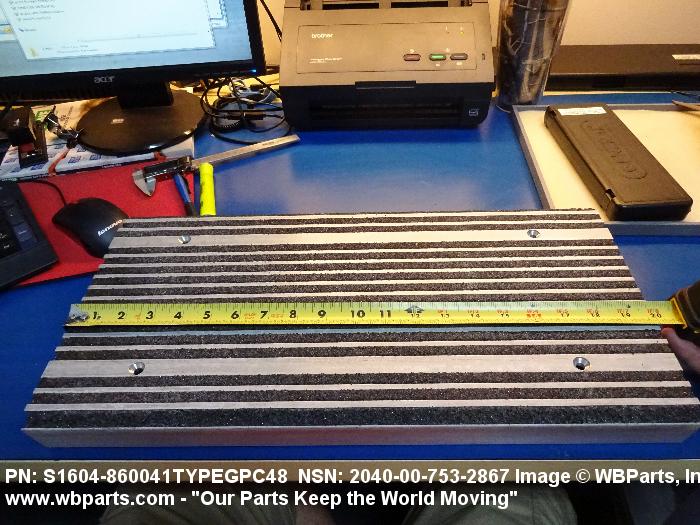

Drawings & Photos | NSN 2040-00-753-2868
Demand History | NSN 2040-00-753-2868
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S1604860041TYPEGPC48 | 2017-07-205 | 20 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2040-00-753-2868
Technical Data | NSN 2040-00-753-2868
| Characteristic | Specifications |
|---|---|

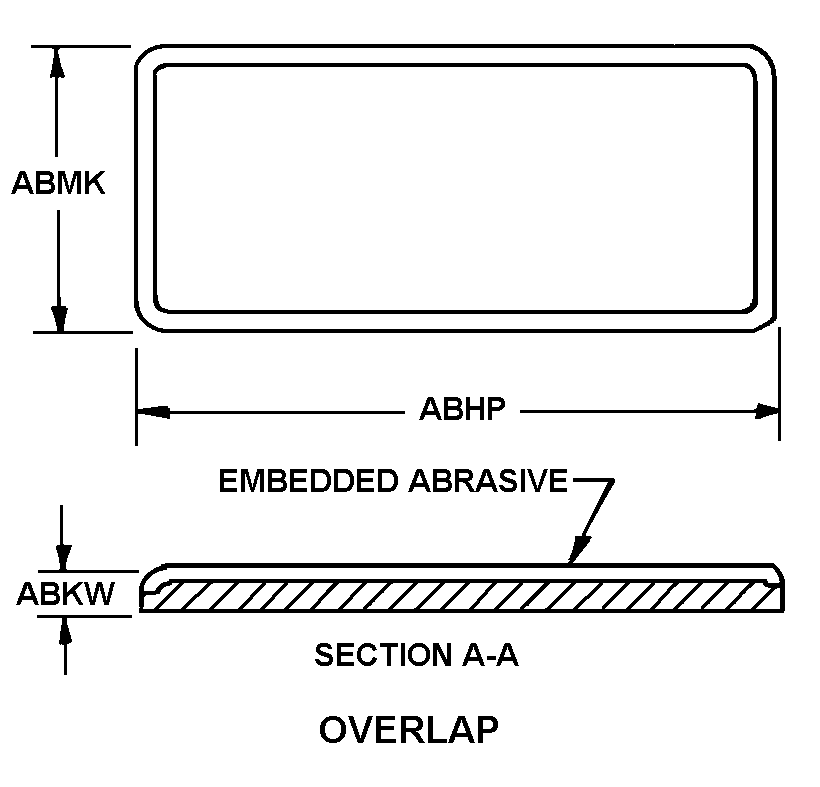

| STYLE DESIGNATOR | 10 OVERLAP |
| OVERALL LENGTH | 24.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| OVERALL WIDTH | 9.000 INCHES NOMINAL |
| BASIC MATERIAL | STEEL |
| INSERT/ADDITIVE TYPE | BONDERIZED AND EPOXY RESIN ABRASIVE AND GALVANIZED |
| SURFACE TREATMENT | GALVANIZED |
| MOUNTING FEATURE | INCLUDED |
| MOUNTING METHOD | END BOLT HOLES |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MARINE |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | S1604-860041TYPEGPC48 |
Restrictions/Controls & Freight Information | NSN 2040-00-753-2868
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019100 | AUTOMOBILS:PARTS,NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-00-753-2868
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
