NSN 5365-01-243-0484 30100438, 01-243-0484, 012430484
Product Details | MACHINE THREAD BUSHING
5365-01-243-0484 A straight nonfluid fitting with wrenching facilities on one end and external threads, other than pipe or hose series, on the other end. It has an unthreaded through hole in its axis which may be countersunk and/or counterbored on one or both ends. It is designed to accommodate a shaft, or the like, or used to reinforce a hole in a bulkhead, or the like. For similar items specifically designed for use in a stuffing box, see PACKING NUT. For nonfluid items with an internal thread, see INSERT, SCREW THREAD; or ADAPTER BUSHING. Excludes REDUCER, BOSS; and items designed to accommodate a tube or tube fitting.
Part Alternates: 30100438, 5365-01-243-0484, 01-243-0484, 5365012430484, 012430484
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 OCT 1986 | 01-243-0484 | 18019 ( BUSHING, MACHINE THREAD ) |

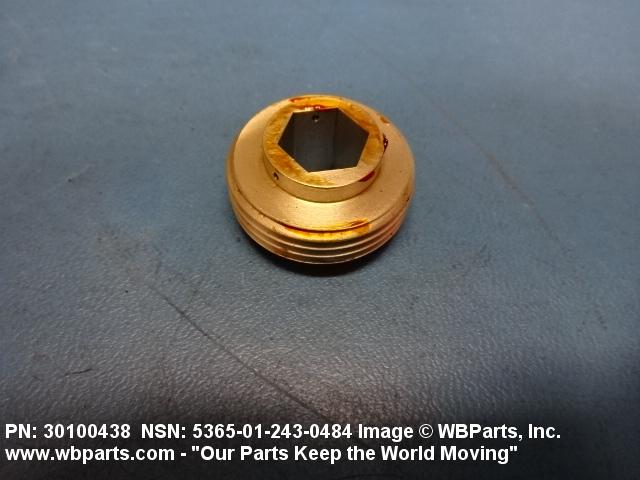

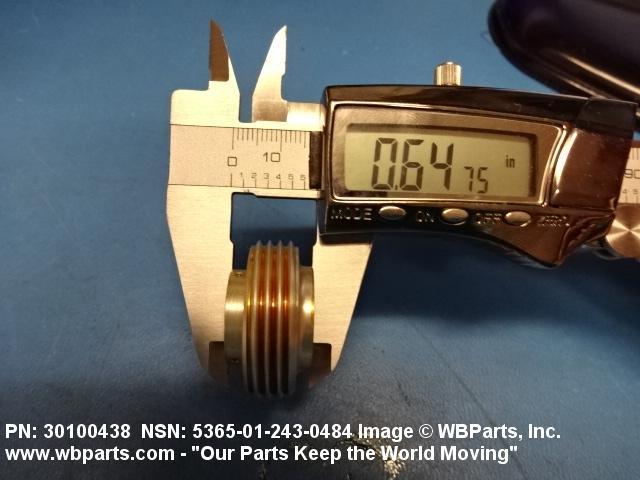

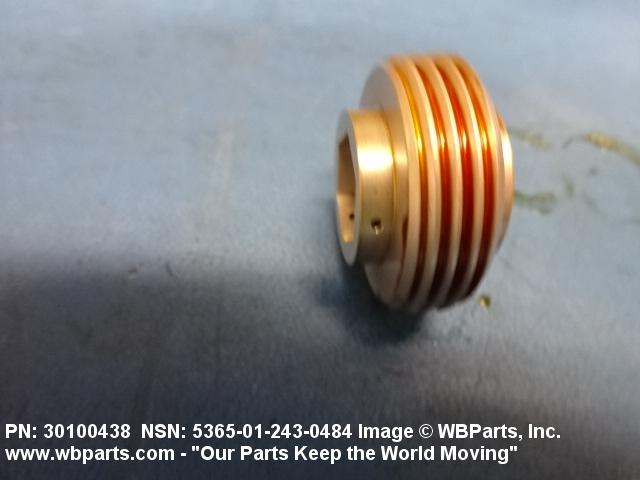

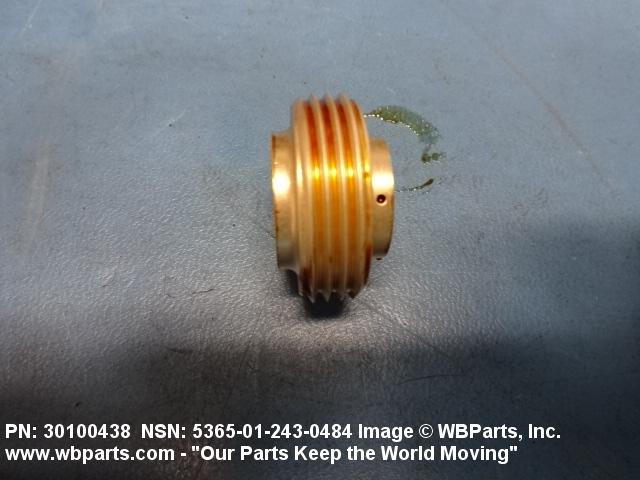

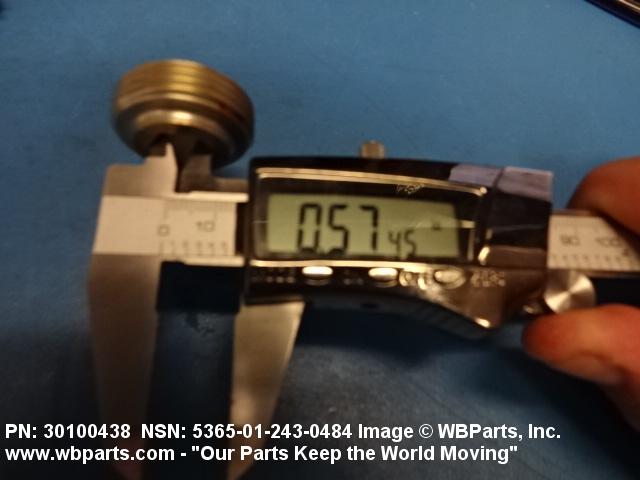

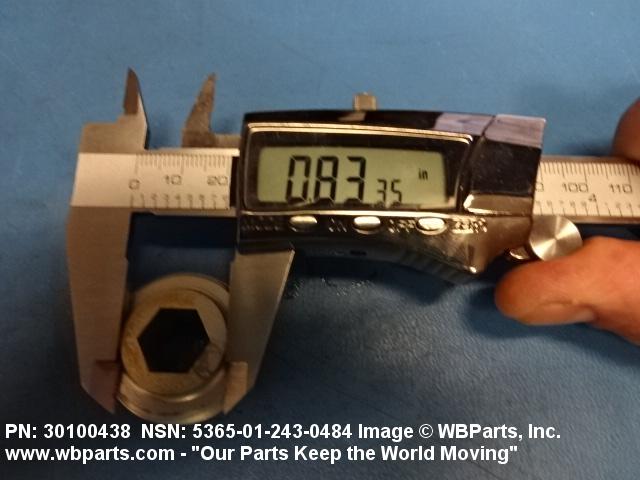

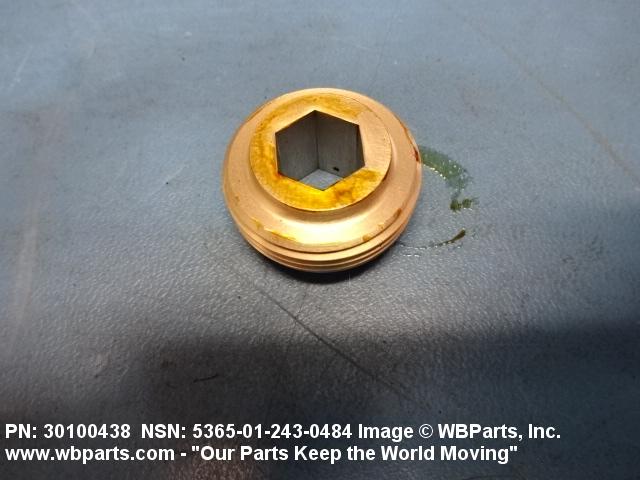

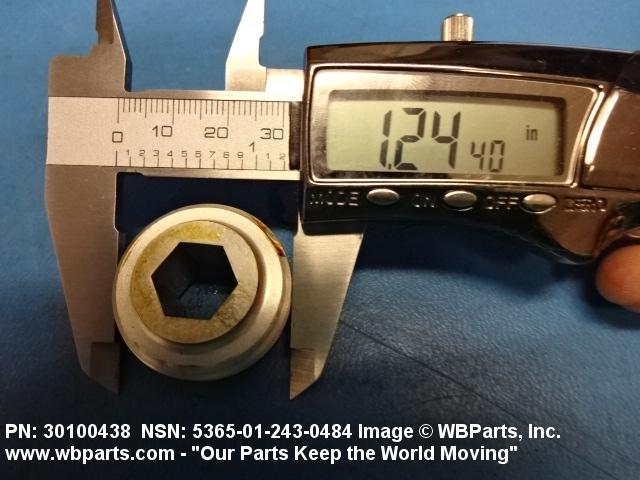

Drawings & Photos | NSN 5365-01-243-0484
Demand History | NSN 5365-01-243-0484
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-243-0484 | 2018-02-26 | 33 | United States |
| 5365-01-243-0484 | 2018-02-07 | 33 | DIBBS |
Cross Reference | NSN 5365-01-243-0484
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30100438 | 81873 | WOODWARD HRT, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-243-0484
Restrictions/Controls & Freight Information | NSN 5365-01-243-0484
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-243-0484
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | HS | SX:AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
