NSN 5365-00-163-9364 3020T09P02, 00-163-9364, 001639364
Product Details | MACHINE THREAD BUSHING
5365-00-163-9364 A straight nonfluid fitting with wrenching facilities on one end and external threads, other than pipe or hose series, on the other end. It has an unthreaded through hole in its axis which may be countersunk and/or counterbored on one or both ends. It is designed to accommodate a shaft, or the like, or used to reinforce a hole in a bulkhead, or the like. For similar items specifically designed for use in a stuffing box, see PACKING NUT. For nonfluid items with an internal thread, see INSERT, SCREW THREAD; or ADAPTER BUSHING. Excludes REDUCER, BOSS; and items designed to accommodate a tube or tube fitting.
Part Alternates: 3020T09P02, 5365-00-163-9364, 00-163-9364, 5365001639364, 001639364
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 FEB 1973 | 00-163-9364 | 18019 ( BUSHING, MACHINE THREAD ) |

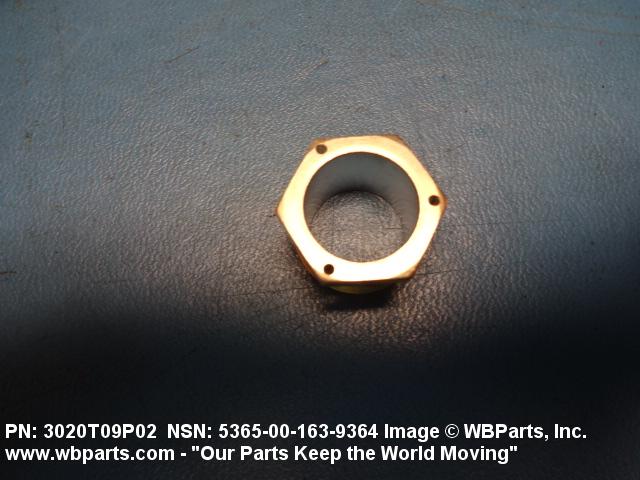

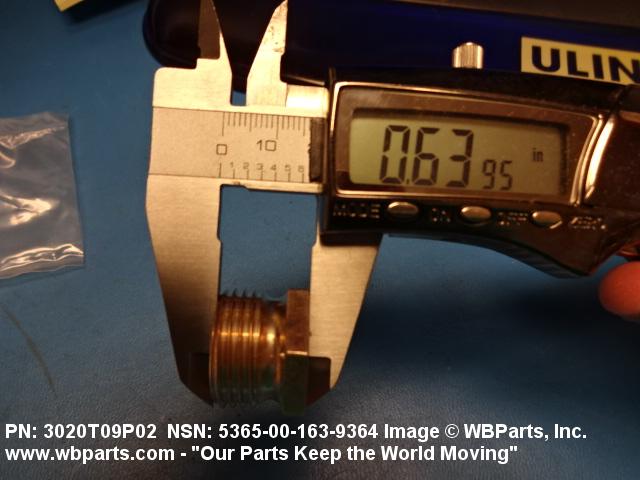

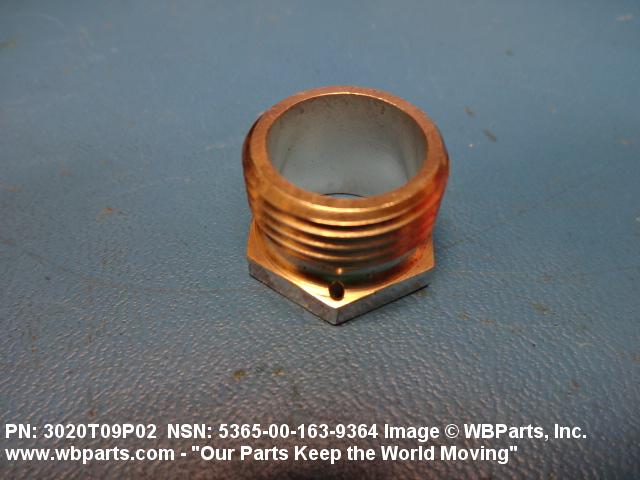

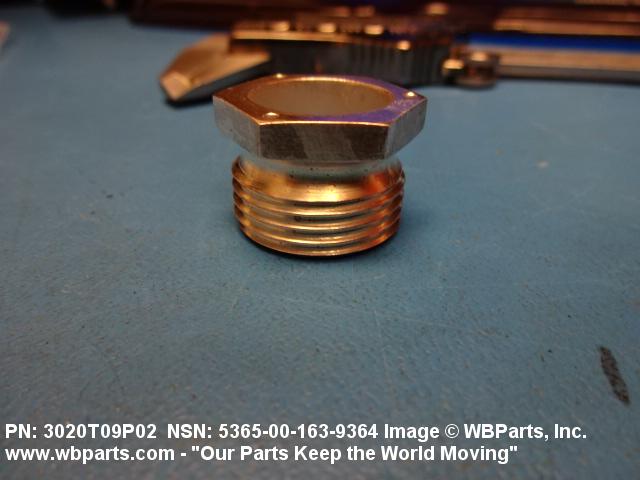

Drawings & Photos | NSN 5365-00-163-9364
Demand History | NSN 5365-00-163-9364
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-163-9364 | 2020-01-08 | 95 | DIBBS |
| 5365-00-163-9364 | 2019-12-338 | 74 | DIBBS |
| 5365-00-163-9364 | 2019-11-323 | 63 | DIBBS |
| 5365-00-163-9364 | 2019-10-283 | 55 | DIBBS |
| 5365-00-163-9364 | 2018-08-241 | 60 | United States |
| 5365-00-163-9364 | 2018-07-201 | 1 | DIBBS-RFPs |
| 5365-00-163-9364 | 2018-06-170 | 156 | DIBBS |
| 5365-00-163-9364 | 2018-05-130 | 84 | DIBBS |
| 5365-00-163-9364 | 2018-04-99 | 130 | DIBBS |
| 5365-00-163-9364 | 2013-02-45 | 908 | DIBBS |
| 5365-00-163-9364 | 2012-08-223 | 966 | DIBBS |
| 5365-00-163-9364 | 2011-05-139 | 473 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-163-9364
Related Products | NSN 5365-00-163-9364
Technical Data | NSN 5365-00-163-9364
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,CORROSION RESISTING,AMS 5639 |
| SURFACE TREATMENT | SILVER PLATED,AMS 2410 |
| THREAD SIZE | 7/8-14 |
| SCREW THREAD SERIES DESIGNATOR | UNJF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SCREW THREAD LENGTH | 0.335 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| HOLE INSIDE DIAMETER | 0.655 INCHES MINIMUM AND 0.660 INCHES MAXIMUM |
| COUNTERBORE FEATURE | NOT INCLUDED |
| COUNTERSUNK FEATURE | NOT INCLUDED |
| WRENCHING FACILITY SHAPE | HEXAGONAL |

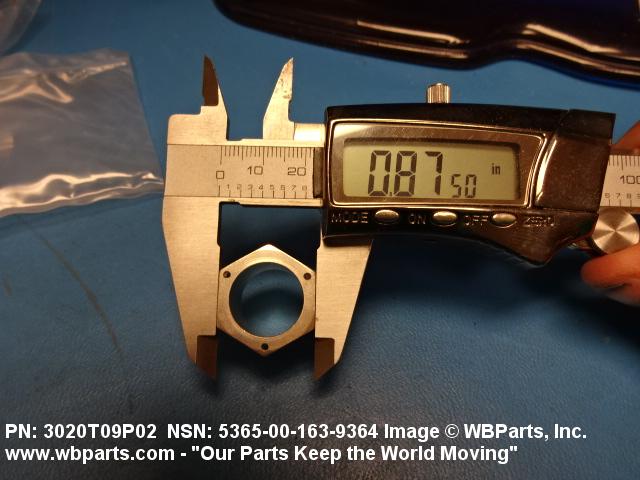

| WIDTH ACROSS FLATS | 0.870 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |

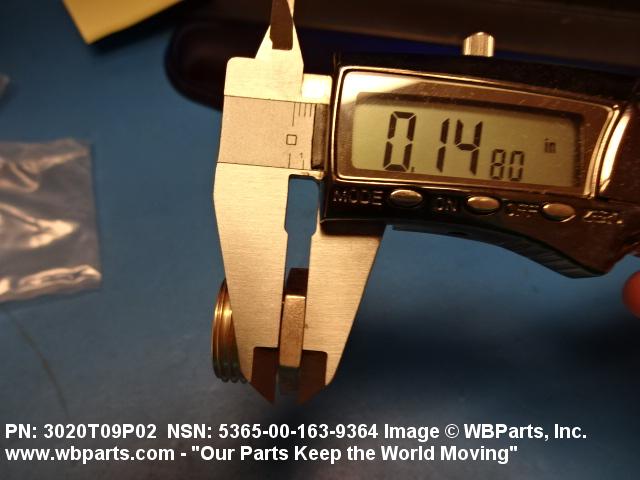

| THICKNESS | 0.145 INCHES MINIMUM AND 0.165 INCHES MAXIMUM |

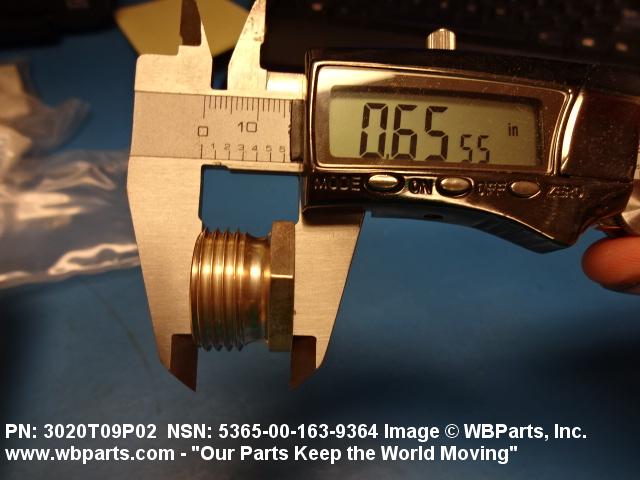

| OVERALL LENGTH | 0.645 INCHES MINIMUM AND 0.655 INCHES MAXIMUM |
| MANUFACTURERS CODE | 03350 |
| DESIGN CONTROL REFERENCE | 3020T09P02 |
Restrictions/Controls & Freight Information | NSN 5365-00-163-9364
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 115620 | BUSHINGS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-163-9364
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
