NSN 5365-01-193-7062 803-841499 PIECE 4-1/2IN, 803841499PIECE412IN, 01-193-7062
Product Details | MACHINE THREAD PLUG
5365-01-193-7062 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 803-841499 PIECE 4-1/2IN, 803841499PIECE412IN, 5365-01-193-7062, 01-193-7062, 5365011937062, 011937062
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 NOV 1984 | 01-193-7062 | 03801 ( PLUG, MACHINE THREAD ) |

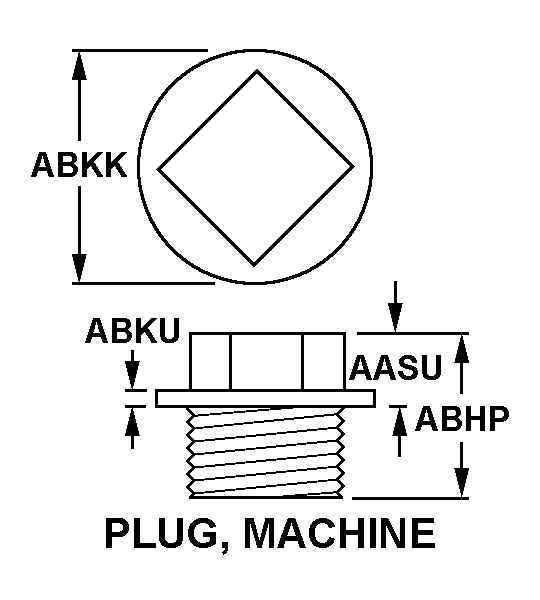

Drawings & Photos | NSN 5365-01-193-7062
Demand History | NSN 5365-01-193-7062
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-193-7062 | 2021-07-206 | 45 | DIBBS |
| 5365-01-193-7062 | 2015-09-273 | 40 | DIBBS |
| 5365-01-193-7062 | 2014-05-134 | 38 | DIBBS |
| 5365-01-193-7062 | 2014-05-126 | 38 | DIBBS |
| 5365-01-193-7062 | 2012-09-250 | 37 | DIBBS |
Cross Reference | NSN 5365-01-193-7062
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 803-841499 PIECE 4-1/2IN | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-193-7062
Related Products | NSN 5365-01-193-7062
Technical Data | NSN 5365-01-193-7062
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 922 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B61 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C3 PLUG, MACHINE |
| HEAD HEIGHT | 0.469 INCHES NOMINAL |
| OVERALL LENGTH | 0.812 INCHES NOMINAL |
| FLANGE DIAMETER | 1.188 INCHES NOMINAL |
| FLANGE THICKNESS | 0.141 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 0.938 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 16 EXTERNAL |
| THREAD CLASS | 2A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.344 INCHES MINIMUM AND 0.359 INCHES MAXIMUM EXTERNAL |
| HEAD TYPE | SOLID |
| BODY TYPE | CORED |
| BODY CORE DIAMETER | 0.625 INCHES MINIMUM AND 0.628 INCHES MAXIMUM |
| CORE DEPTH | 0.344 INCHES MINIMUM AND 0.359 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5365-01-193-7062
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
