NSN 5365-01-146-0564 MS24391K4L, AN8144KL, AN814-4KL

Product Details | MACHINE THREAD PLUG

5365-01-146-0564 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.

Part Alternates: MS24391K4L, AN8144KL, AN814-4KL, AS5169K04L, 284732-0001 ITEM 87, 2847320001ITEM87, 428961 ITEM 9, 428961ITEM9, 5365-01-146-0564, 01-146-0564, 5365011460564, 011460564

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	24 JAN 1983	01-146-0564	03801 ( PLUG, MACHINE THREAD )

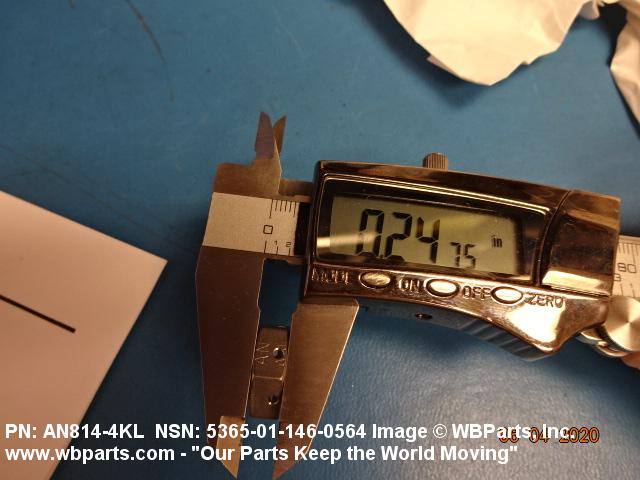

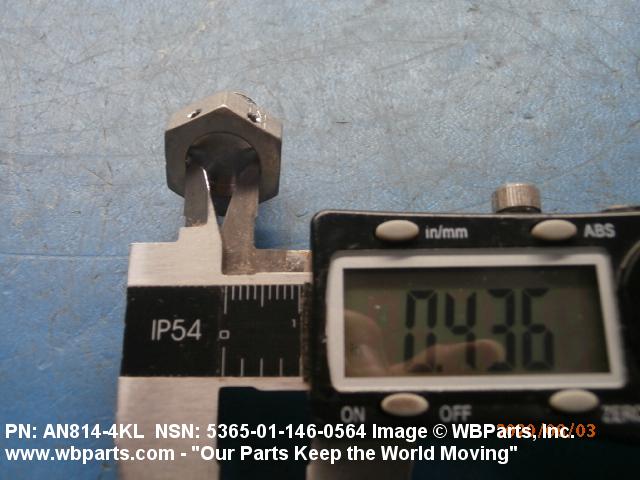

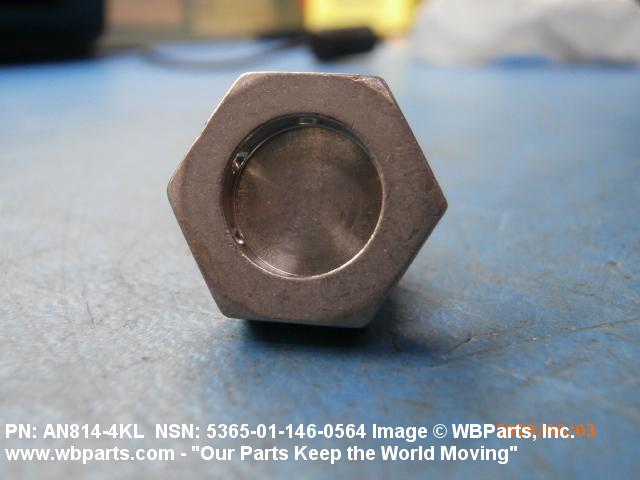

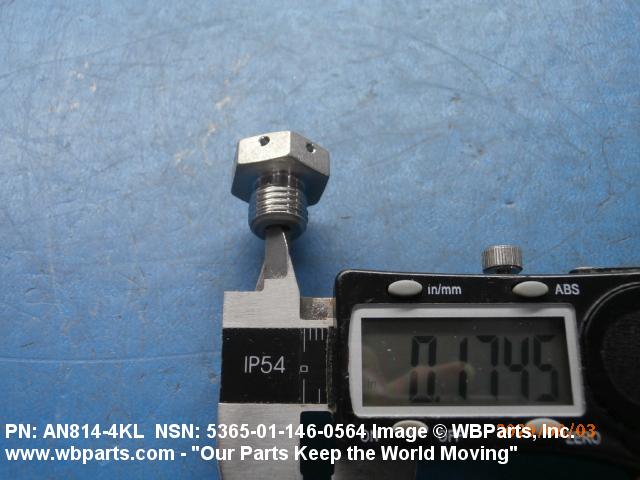

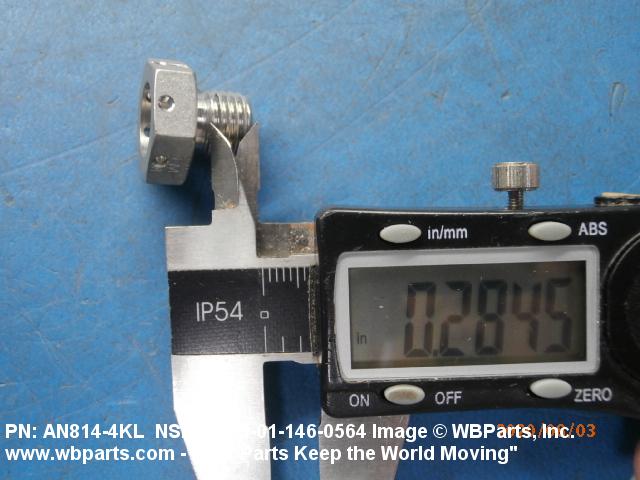

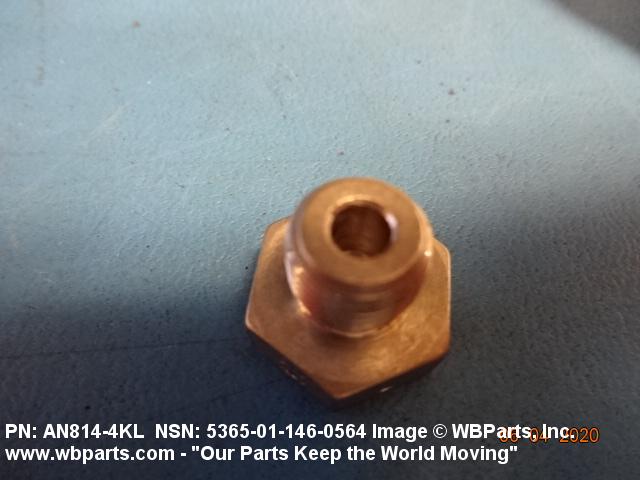

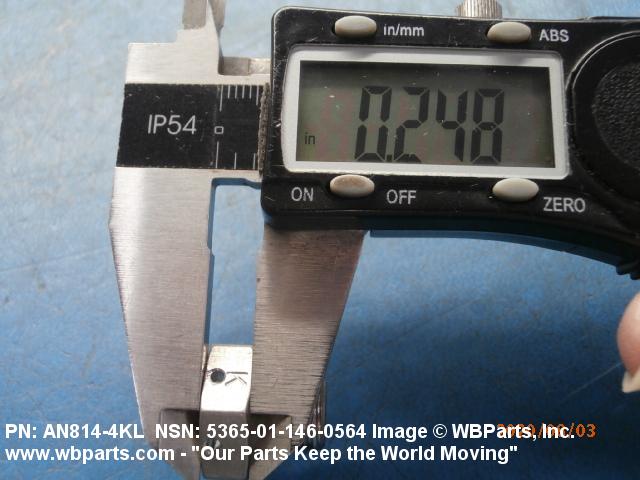

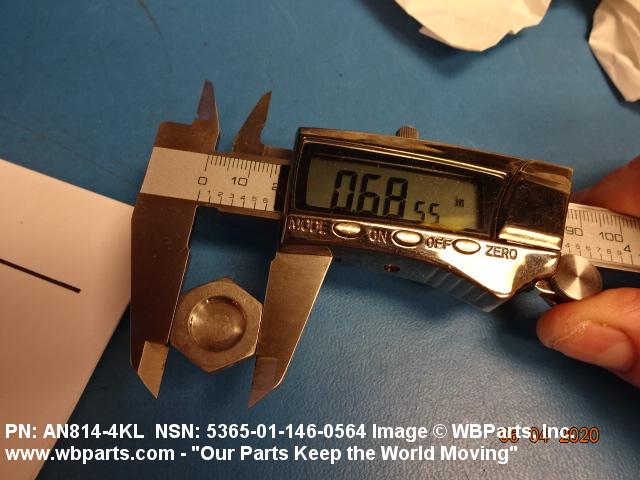

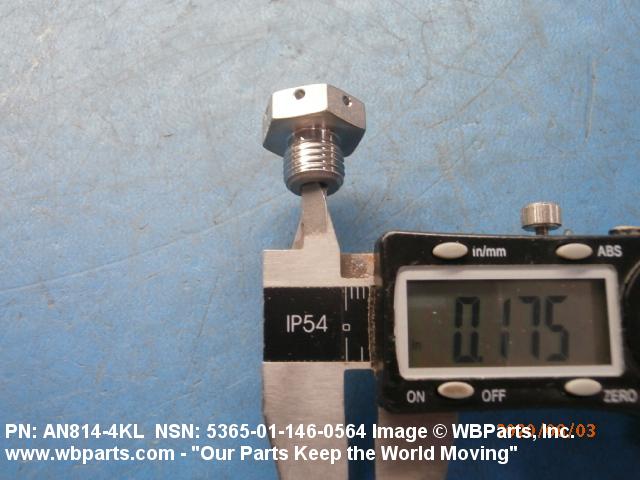

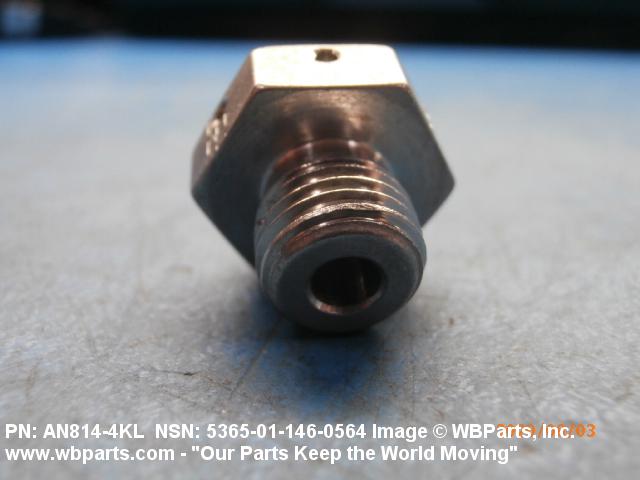

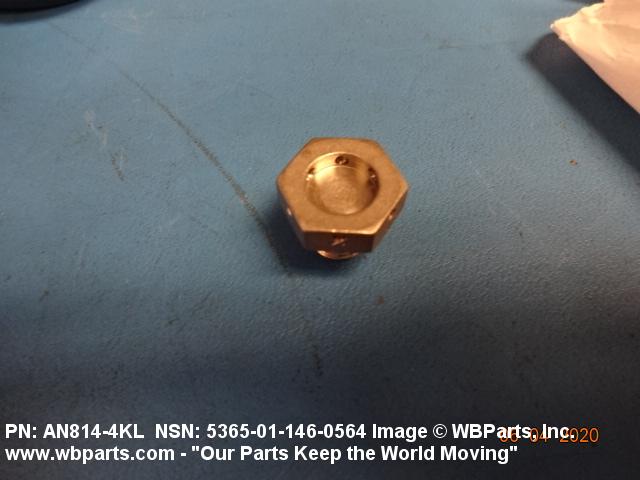

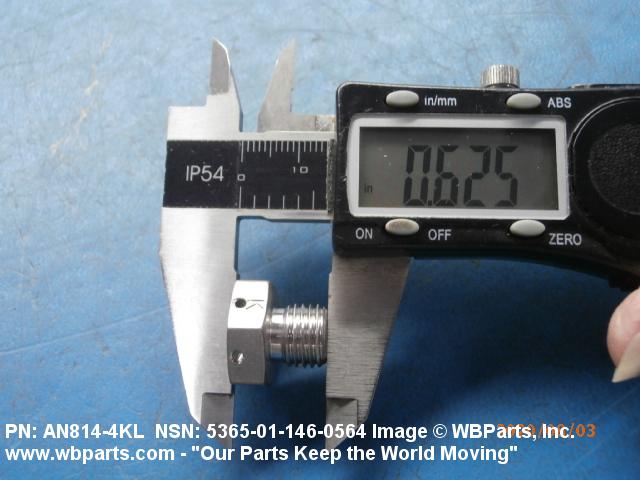

Drawings & Photos | NSN 5365-01-146-0564

Part Number	Request Date	QTY	Origin
5365-01-146-0564	2023-06-174	270	DIBBS
5365-01-146-0564	2023-06-166	270	DIBBS
5365-01-146-0564	2022-12-349	183	DIBBS
5365-01-146-0564	2022-12-340	13	DIBBS
5365-01-146-0564	2022-11-327	15	US
5365-01-146-0564	2022-10-290	270	DIBBS
5365-01-146-0564	2022-10-279	270	DIBBS
5365-01-146-0564	2022-09-258	10	US
5365-01-146-0564	2022-06-178	21	DIBBS
5365-01-146-0564	2022-06-152	117	DIBBS
5365-01-146-0564	2022-03-89	101	DIBBS
AS5169K04L	2020-09-253	16	US
5365-01-146-0564	2020-07-212	200	United States
5365-01-146-0564	2020-05-147	88	United States
5365-01-146-0564	2016-09-246	1	DIBBS-RFPs
5365-01-146-0564	2016-05-125	5	TW
5365-01-146-0564	2012-01-23	100	us
5365-01-146-0564	2012-01-19	93	DIBBS
5365-01-146-0564	2011-02-45	1196	DIBBS

Cross Reference | NSN 5365-01-146-0564

Part Number	Cage Code	Manufacturer
284732-0001 ITEM 87	99657	MAROTTA CONTROLS, INC.
428961 ITEM 9	13520	WESTERN FILTER, A DIVISION OF DONALDSON COMPANY, INC.
AN814-4KL	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS5169K04L	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS24391K4L	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5365-01-146-0564

Compare

Related Products | NSN 5365-01-146-0564

5365-01-146-0975, 5365-01-146-1160, 5365-01-146-1173, 5365-01-146-1206, 5365-01-146-1230

Technical Data | NSN 5365-01-146-0564

Characteristic	Specifications
MATERIAL	STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

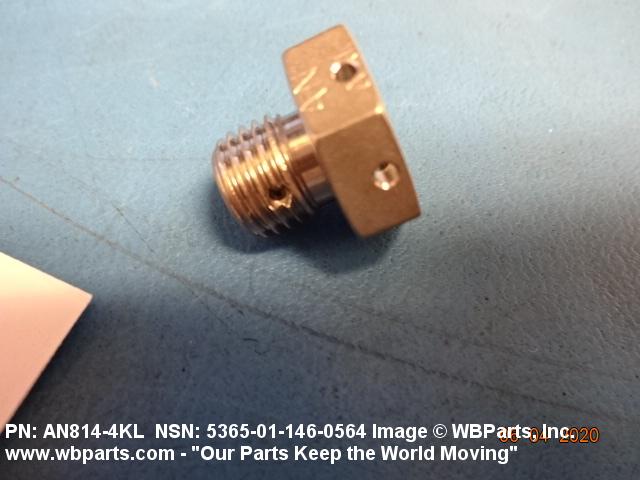

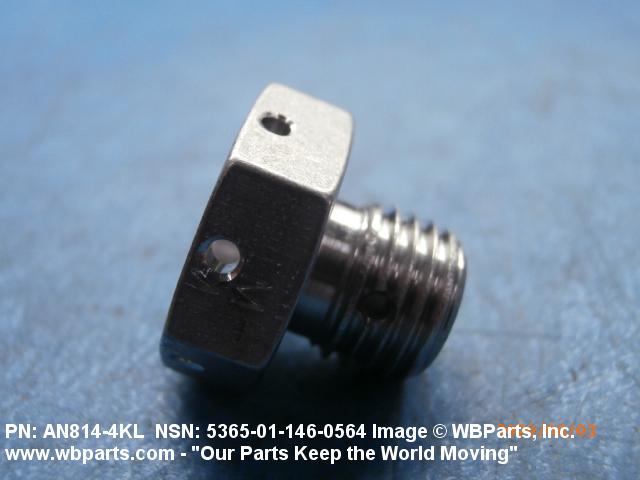

STYLE DESIGNATOR	C35A PLUG, MACHINE, W/BLEEDER HOLE
HEAD HEIGHT	0.250 INCHES NOMINAL

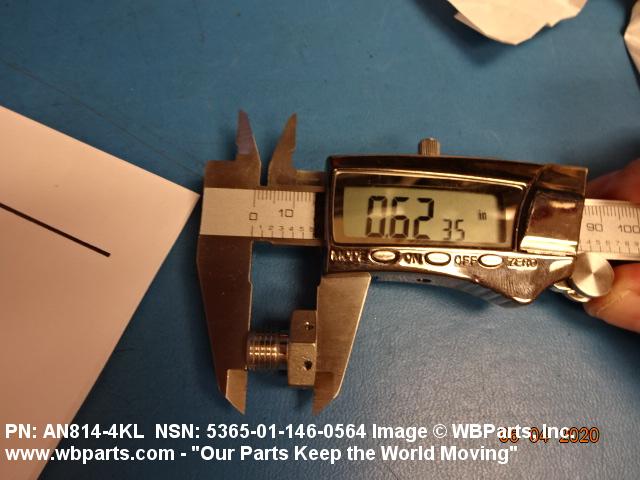

OVERALL LENGTH	0.656 INCHES NOMINAL
BLEEDER HOLE CENTER TO THREADED END DISTANCE	0.157 INCHES MINIMUM AND 0.219 INCHES MAXIMUM
BLEEDER HOLE DIAMETER	0.062 INCHES NOMINAL
CONNECTION STYLE	J1 PLAIN

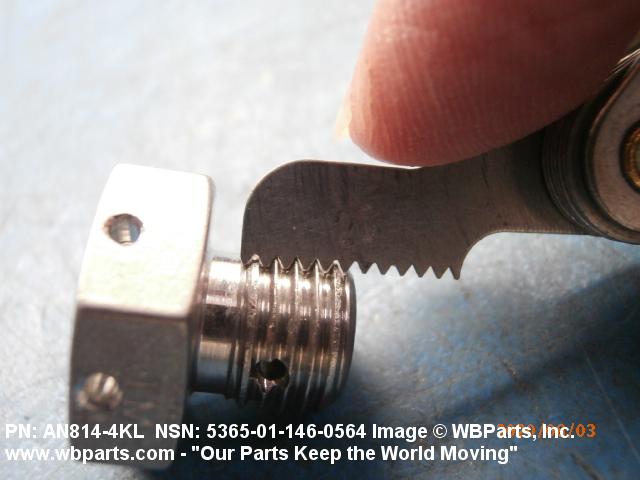

THREAD SERIES DESIGNATOR	UNF EXTERNAL

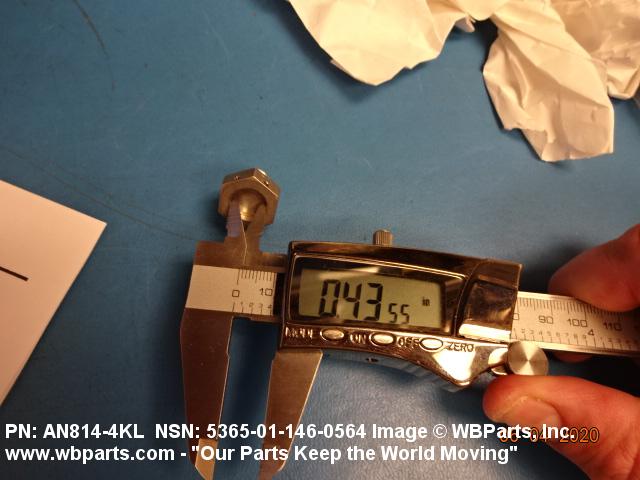

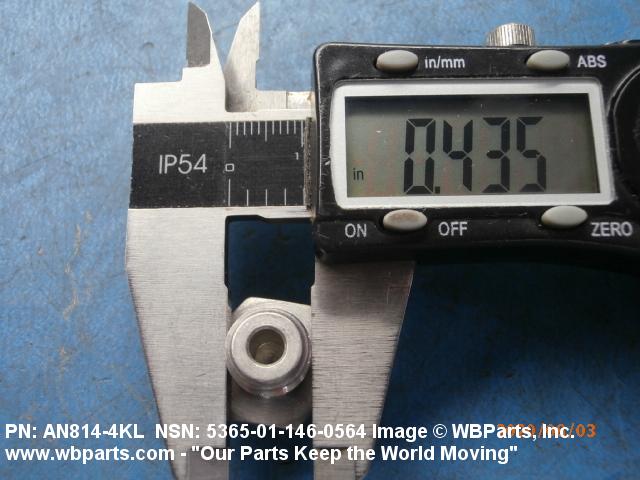

NOMINAL THREAD SIZE	0.438 INCHES EXTERNAL
THREAD CLASS	3A EXTERNAL
THREAD DIRECTION	RIGHT-HAND EXTERNAL
THREAD LENGTH	0.297 INCHES NOMINAL EXTERNAL

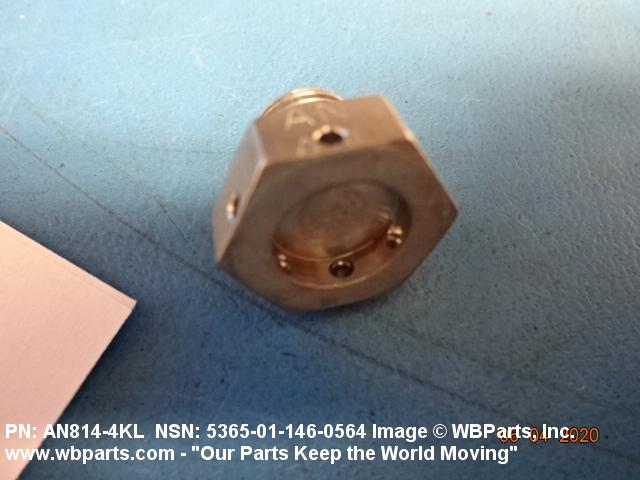

HEAD TYPE	CORED
HEAD CORE DIAMETER	0.438 INCHES NOMINAL
BODY TYPE	CORED
BODY CORE DIAMETER	0.171 INCHES NOMINAL
CORE DEPTH	0.297 INCHES MINIMUM AND 0.312 INCHES MAXIMUM

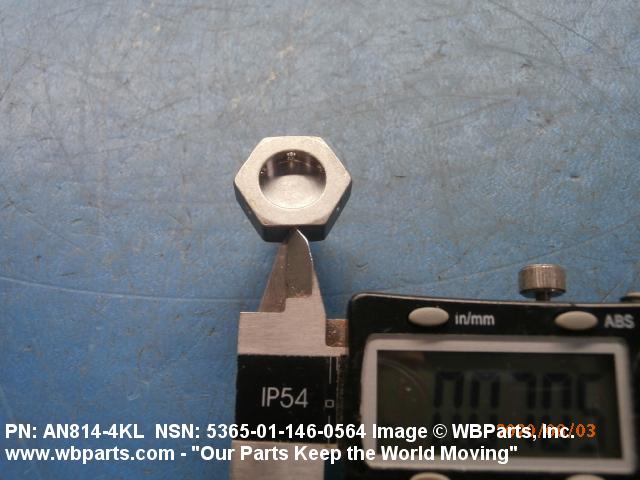

SPECIAL FEATURES	HEX HEAD,WIDTH ACROSS FLATS 0.684 IN. MIN,0.692 IN. MAX
(NON-CORE DATA) SAFETY WIRE HOLE QUANTITY	6

Restrictions/Controls & Freight Information | NSN 5365-01-146-0564

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5365-01-146-0564

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material ID	V2	MV-22 aircraft
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
