Product Details | MACHINE THREAD PLUG

5365-01-115-7943 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.

Part Alternates: 50044400, 82056, 5365-01-115-7943, 01-115-7943, 5365011157943, 011157943

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG) NSN Assign. NIIN
53 14 JUL 1981 01-115-7943

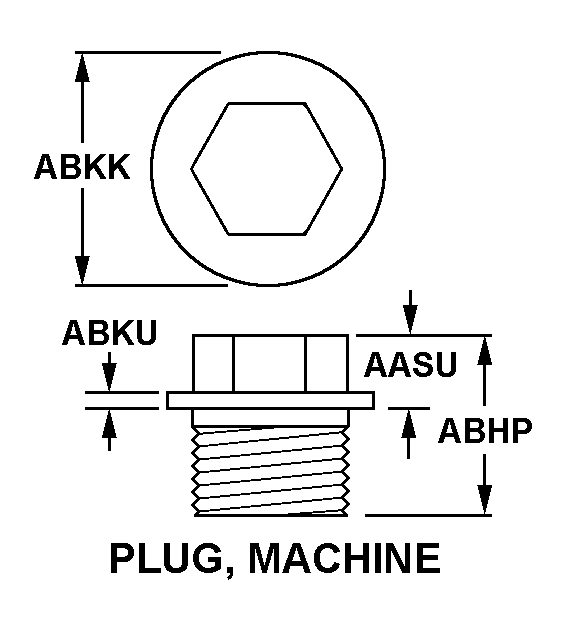

Drawings & Photos | NSN 5365-01-115-7943


Demand History | NSN 5365-01-115-7943

Part Number Request Date QTY Origin
5365-01-115-7943 2014-02-41 317 DIBBS
5365-01-115-7943 2013-12-352 314 DIBBS
5365-01-115-7943 2013-12-351 314 DIBBS
5365-01-115-7943 2010-07-195 135 DIBBS
5365-01-115-7943 2010-06-165 135 DIBBS

Cross Reference | NSN 5365-01-115-7943

Part Number Cage Code Manufacturer
50044400 61080 HATZ DIESEL OF AMERICA INC
82056 16004 DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5365-01-115-7943

Technical Data | NSN 5365-01-115-7943

Characteristic Specifications
MATERIAL STEEL OVERALL
STYLE DESIGNATOR C27 PLUG, MACHINE
HEAD HEIGHT 8.0 MILLIMETERS NOMINAL
OVERALL LENGTH 17.0 MILLIMETERS NOMINAL
FLANGE DIAMETER 27.0 MILLIMETERS NOMINAL
FLANGE THICKNESS 2.0 MILLIMETERS NOMINAL
CONNECTION STYLE J1 PLAIN
THREAD SERIES DESIGNATOR ISO M EXTERNAL
NOMINAL THREAD SIZE 22.00 MILLIMETERS EXTERNAL
THREAD DIRECTION RIGHT-HAND EXTERNAL
THREAD LENGTH 1.0 MILLIMETERS NOMINAL EXTERNAL
HEAD TYPE SOLID
BODY TYPE CORED
BODY CORE DIAMETER 14.0 MILLIMETERS NOMINAL
CORE DEPTH 8.0 MILLIMETERS NOMINAL
MANUFACTURERS CODE 61080
DESIGN CONTROL REFERENCE 50044400
