NSN 5365-01-101-8260 153778, 01-101-8260, 011018260
Product Details | TAPERED BUSHING

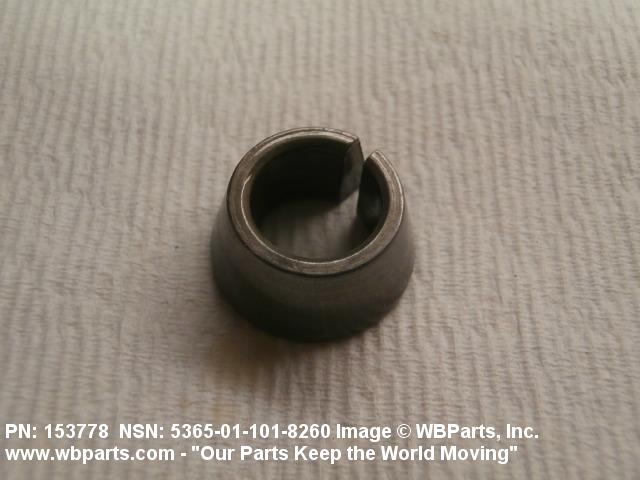

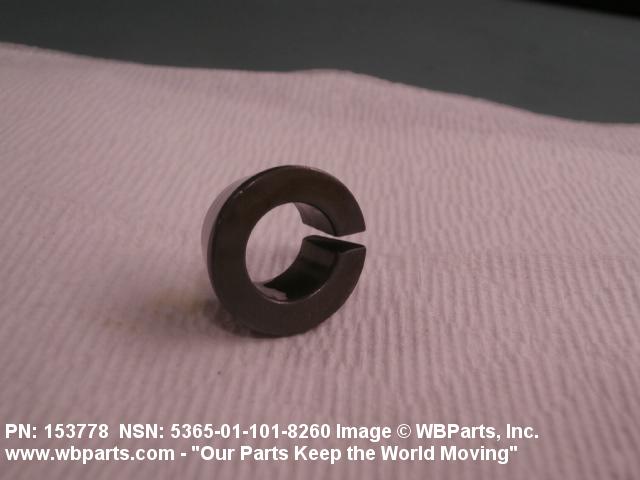

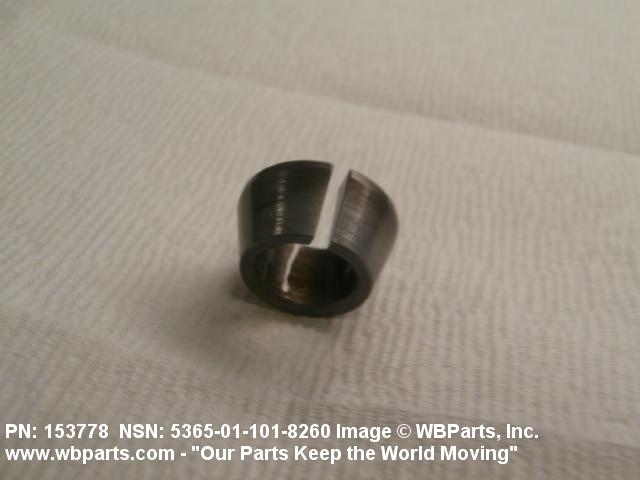

5365-01-101-8260 A trunicated cone-shaped metal item generally tapered along its entire peripheral length, with a centrally located hole. It may be split (cut) through the material parallel to the axis.
Part Alternates: 153778, 5365-01-101-8260, 01-101-8260, 5365011018260, 011018260
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 OCT 1980 | 01-101-8260 | 13738 ( BUSHING, TAPERED ) |

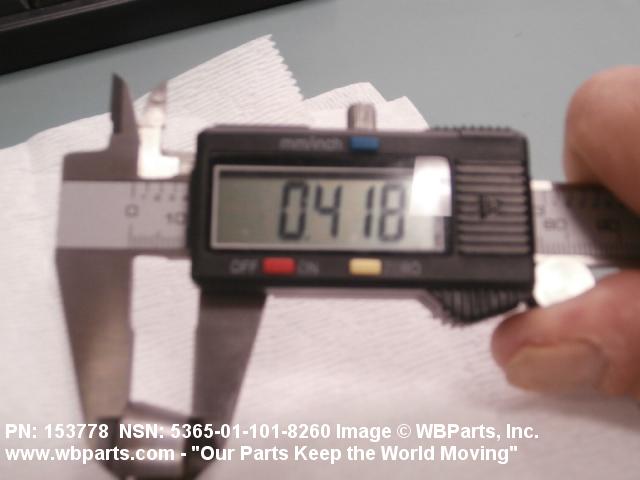

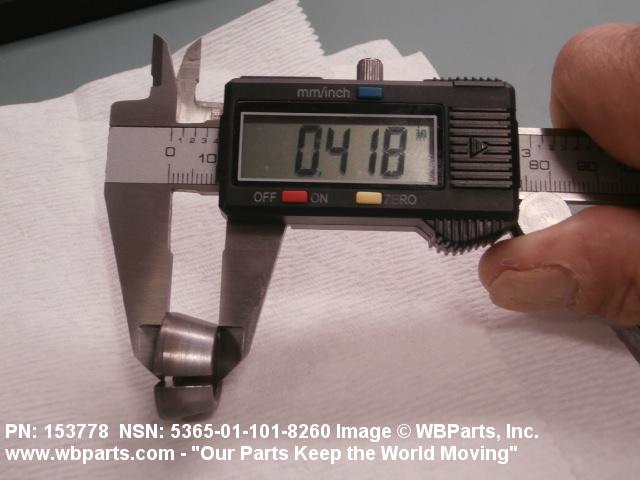

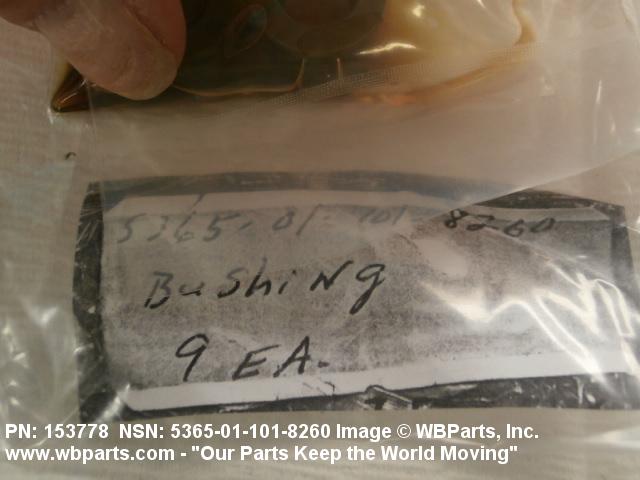

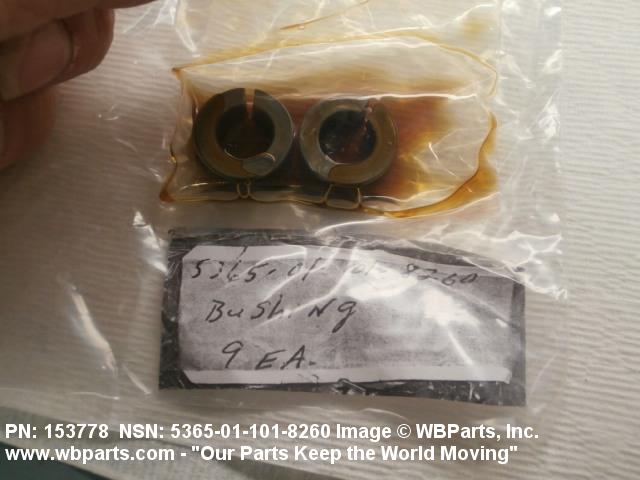

Drawings & Photos | NSN 5365-01-101-8260
Demand History | NSN 5365-01-101-8260
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-101-8260 | 2014-05-136 | 2 | United States |
| 5365-01-101-8260 | 2014-05-136 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-101-8260
Related Products | NSN 5365-01-101-8260
Technical Data | NSN 5365-01-101-8260
| Characteristic | Specifications |
|---|---|
| METALLIC HARDNESS RATING | NOT RATED |
| INSIDE DIAMETER | 0.503 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |

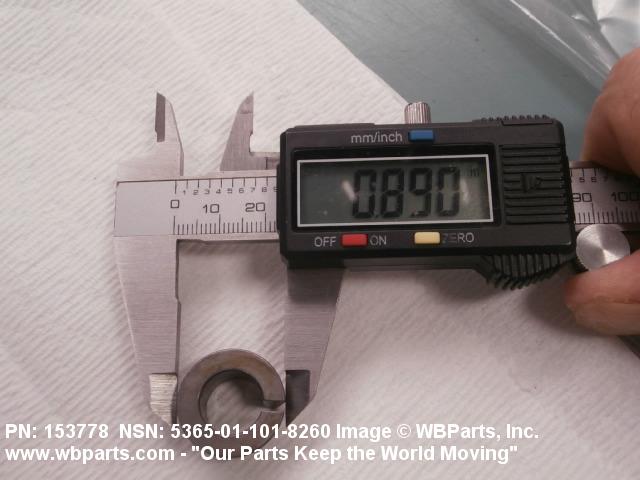

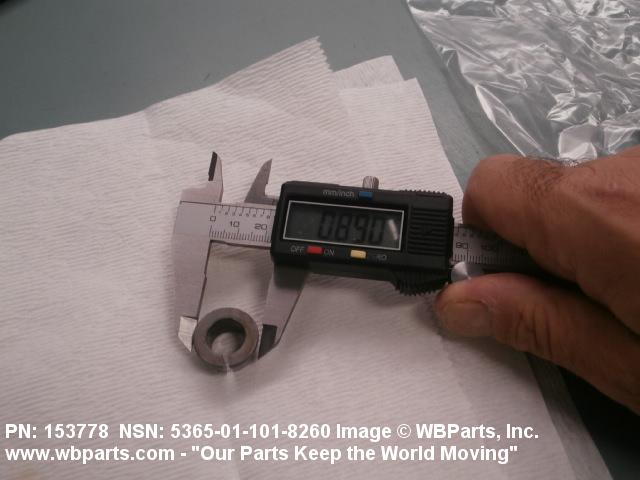

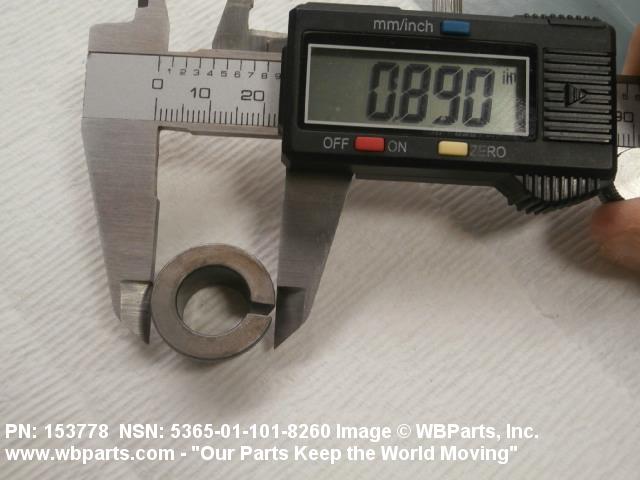

| LARGE END OUTSIDE DIAMETER | 0.890 INCHES NOMINAL |
| OVERALL LENGTH | 0.405 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| SPLIT WIDTH | 0.079 INCHES MINIMUM AND 0.109 INCHES MAXIMUM |

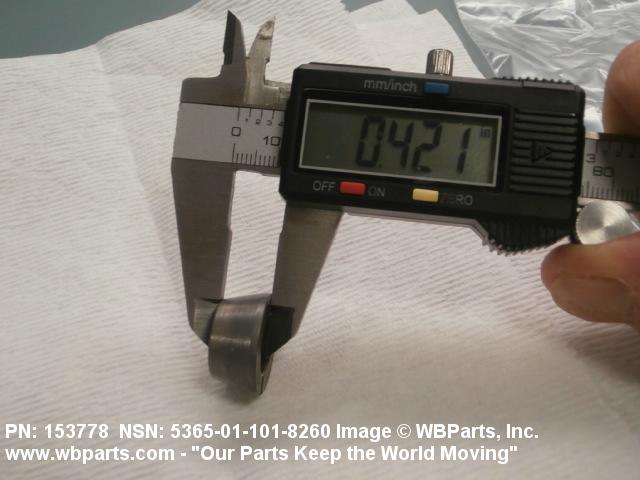

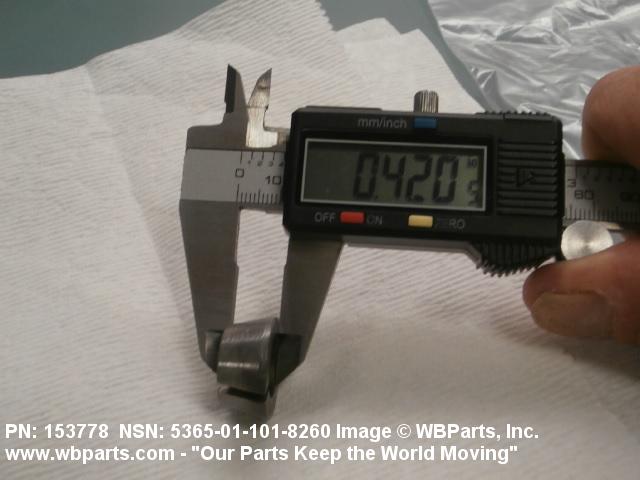

| TAPERED PORTION LENGTH | 0.421 INCHES NOMINAL |
| TAPER INCLUDED ANGLE | 26 DEGREES 30 MINUTES |
| ROUNDED CORNERS | NOT PROVIDED |
| MANUFACTURERS CODE | 04627 |
| DESIGN CONTROL REFERENCE | 153778 |
Restrictions/Controls & Freight Information | NSN 5365-01-101-8260
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 115620 | BUSHINGS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-101-8260
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
