NSN 5365-01-093-5517 7035806343, 70358-06343, 70358-06343-103
Product Details | TAPERED BUSHING

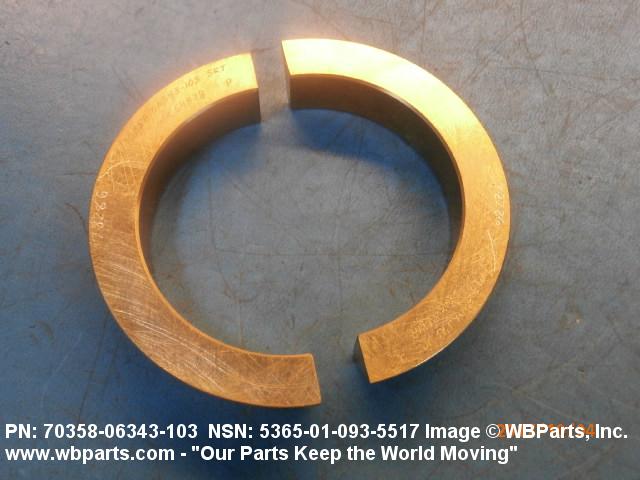

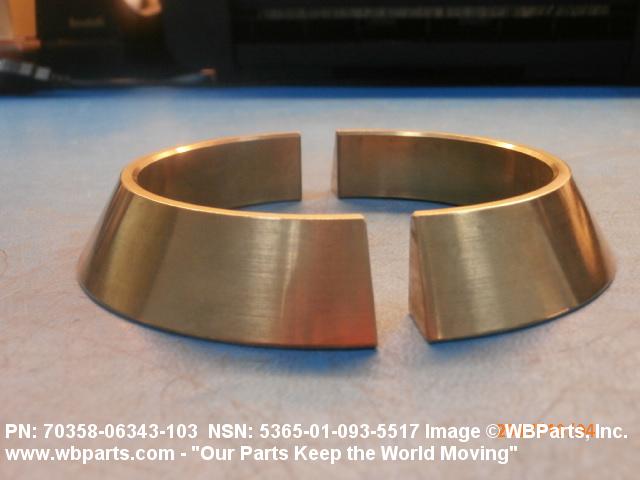

5365-01-093-5517 A trunicated cone-shaped metal item generally tapered along its entire peripheral length, with a centrally located hole. It may be split (cut) through the material parallel to the axis.

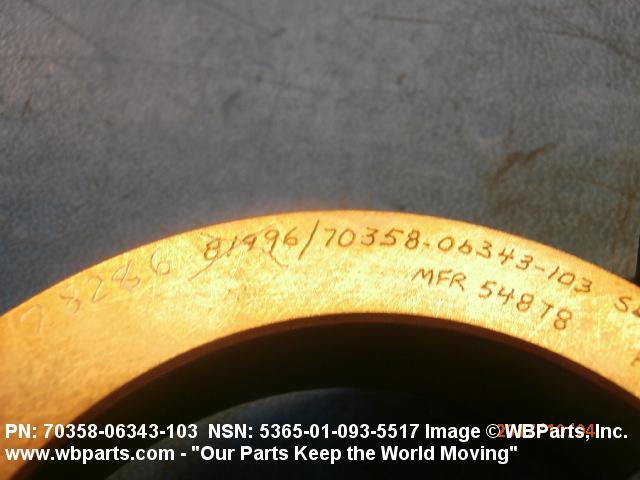

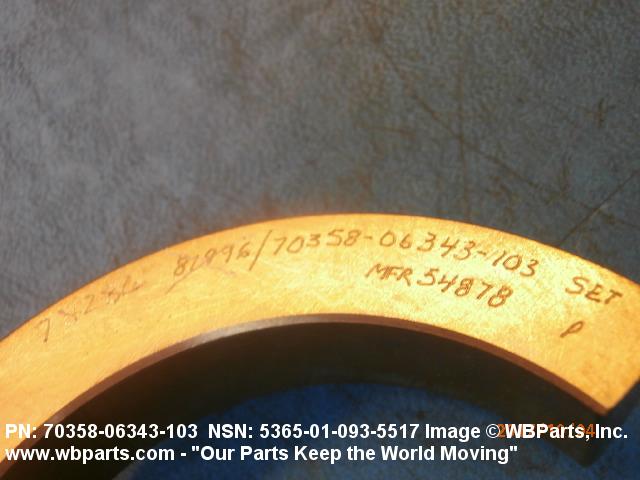

Part Alternates: 7035806343, 70358-06343, 70358-06343-103, 5365-01-093-5517, 01-093-5517, 5365010935517, 7035806343103, 010935517
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 APR 1980 | 01-093-5517 | 13738 ( BUSHING, TAPERED ) |

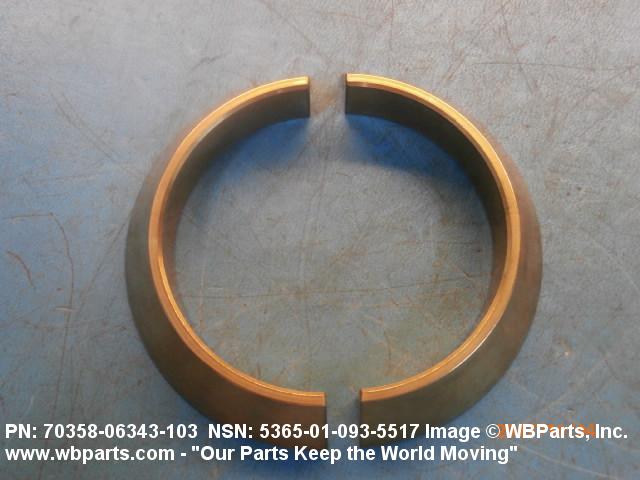

Drawings & Photos | NSN 5365-01-093-5517
Demand History | NSN 5365-01-093-5517
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-093-5517 | 2023-09-251 | 1 | United States |
| 5365-01-093-5517 | 2023-08-236 | 1 | United States |
| 5365-01-093-5517 | 2023-07-200 | 1 | United States |
| 5365-01-093-5517 | 2023-07-199 | 1 | United States |
| 70358-06343-103 | 2021-04-112 | 571 | DIBBS |
| 70358-06343-103 | 2020-11-321 | 22 | DIBBS |
| 70358-06343-103 | 2020-10-301 | 293 | DIBBS |
| 70358-06343-103 | 2020-10-301 | 29 | DIBBS |
| 70358-06343-103 | 2020-06-177 | 5 | DIBBS |
| 70358-06343-103 | 2020-06-161 | 12 | DIBBS |
| 70358-06343-103 | 2020-05-133 | 18 | DIBBS |
| 70358-06343-103 | 2020-05-132 | 53 | DIBBS |
| 70358-06343-103 | 2020-04-110 | 325 | DIBBS |
| 70358-06343-103 | 2020-03-83 | 145 | DIBBS |
| 70358-06343-103 | 2020-02-41 | 29 | DIBBS |
| 70358-06343-103 | 2019-11-321 | 25 | DIBBS |
| 70358-06343-103 | 2019-11-310 | 31 | DIBBS |
| 70358-06343-103 | 2019-10-296 | 21 | DIBBS |
| 5365-01-093-5517 | 2019-06-157 | 1 | DIBBS-RFPs |
| 70358-06343-103 | 2019-05-143 | 125 | DIBBS |
| 5365-01-093-5517 | 2019-02-46 | 1 | DIBBS-RFPs |
| 7035-80-634-3103 | 2018-03-86 | 1 | United States |
| 5365-01-093-5517 | 2017-10-293 | 10 | MANUAL |
| 5365-01-093-5517 | 2017-05-139 | 3 | MANUAL |
| 70358-06343-103 | 2017-05-139 | 3 | Taiwan |
| 7035-80-634-3103 | 2017-04-100 | 1 | Canada |
| 5365-01-093-5517 | 2014-05-142 | 125 | DIBBS |
| 5365-01-093-5517 | 2014-05-135 | 89 | DIBBS |
| 5365-01-093-5517 | 2013-11-331 | 1 | DIBBS-RFPs |
| 5365-01-093-5517 | 2013-07-203 | 544 | DIBBS |
| 5365-01-093-5517 | 2013-04-120 | 5 | United States |
| 5365-01-093-5517 | 2013-03-71 | 606 | DIBBS |
| 5365-01-093-5517 | 2012-12-361 | 561 | DIBBS |
| 5365-01-093-5517 | 2010-05-125 | 96 | DIBBS |
| 5365-01-093-5517 | 2010-02-57 | 118 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-093-5517
Related Products | NSN 5365-01-093-5517
Technical Data | NSN 5365-01-093-5517
| Characteristic | Specifications |
|---|---|
| METALLIC HARDNESS RATING | NOT RATED |

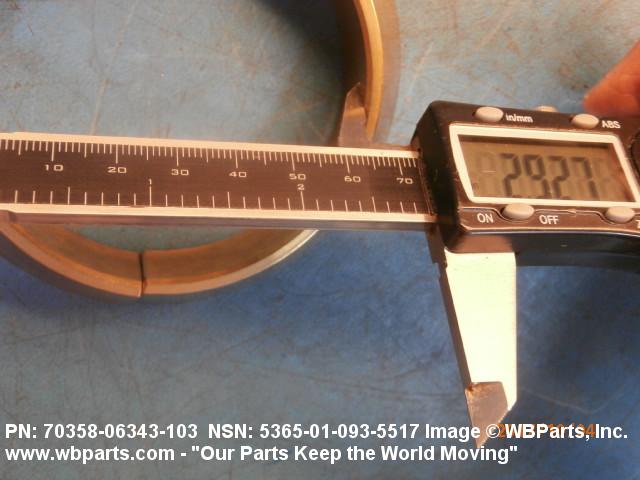

| INSIDE DIAMETER | 2.992 INCHES MINIMUM AND 2.993 INCHES MAXIMUM |

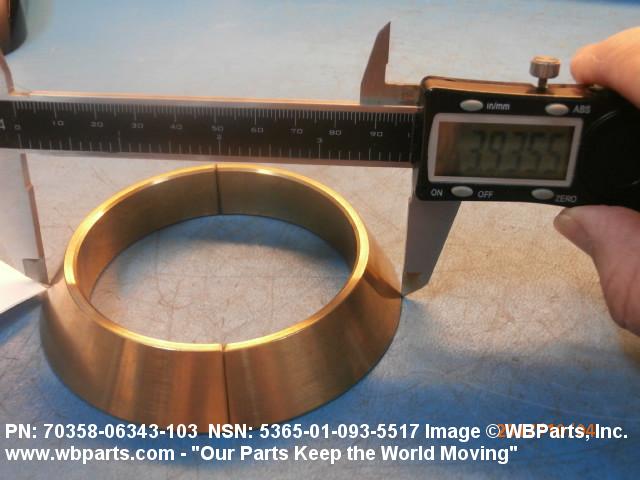

| LARGE END OUTSIDE DIAMETER | 4.000 INCHES NOMINAL |

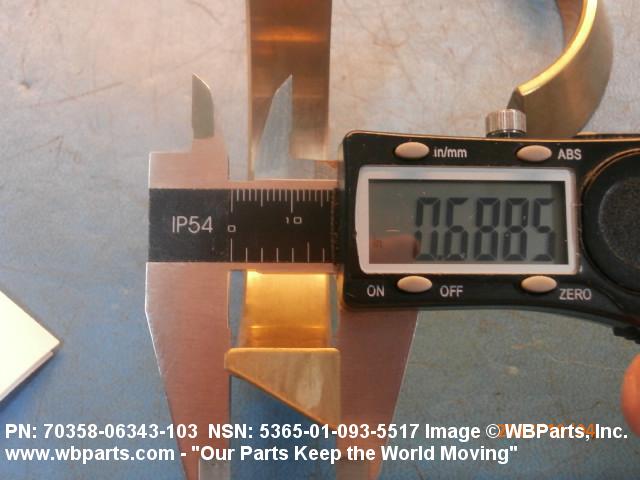

| OVERALL LENGTH | 0.688 INCHES NOMINAL |
| SPLIT WIDTH | 0.063 INCHES NOMINAL |
| TAPER INCLUDED ANGLE | 29 DEGREES 59 MINUTES 45 SECONDS |
| ROUNDED CORNERS | PROVIDED |
| RADIUS | 0.030 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5365-01-093-5517
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | R | 65 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-093-5517
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
