NSN 5365-01-099-3731 AN81410JL, AN814-10JL, AN81410KL
Product Details | MACHINE THREAD PLUG

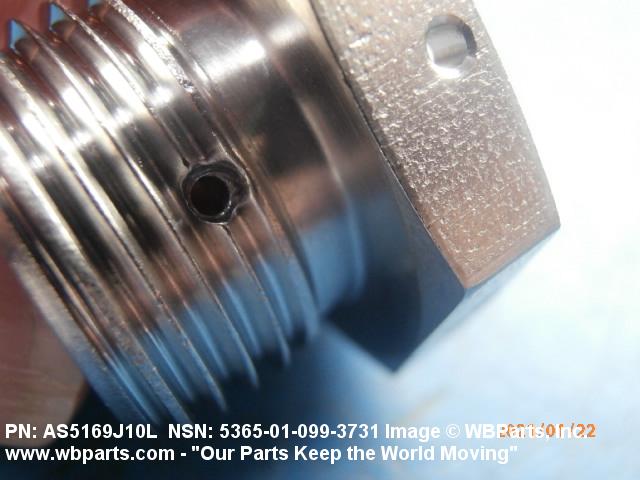

5365-01-099-3731 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: AN81410JL, AN814-10JL, AN81410KL, AN814-10KL, AS5169, AS5169J10L, AS5169K10L, 10163948 , 5365-01-099-3731, 01-099-3731, 5365010993731, 010993731
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 AUG 1980 | 01-099-3731 | 03801 ( PLUG, MACHINE THREAD ) |

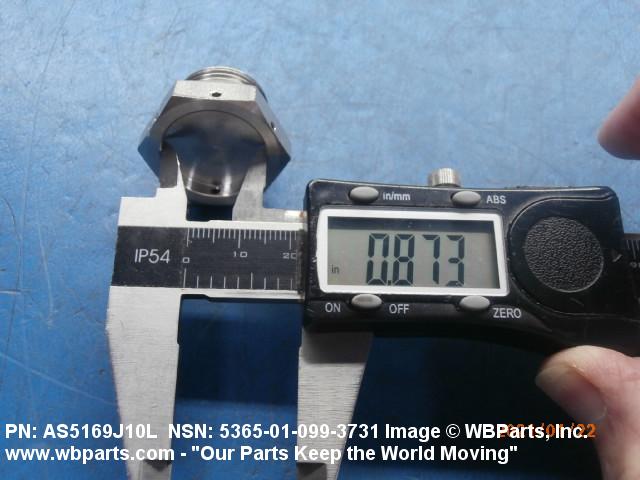

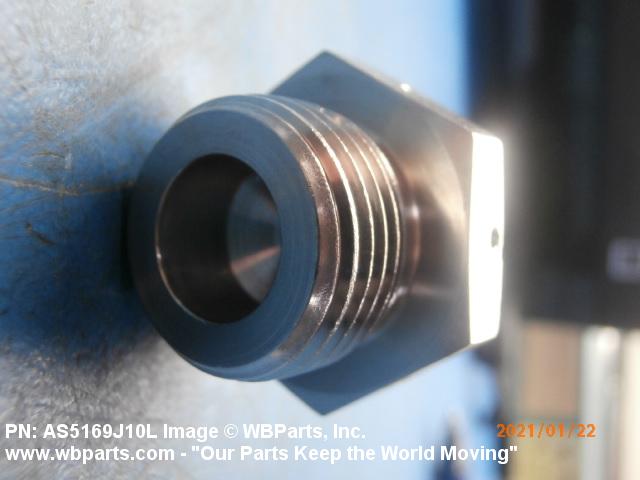

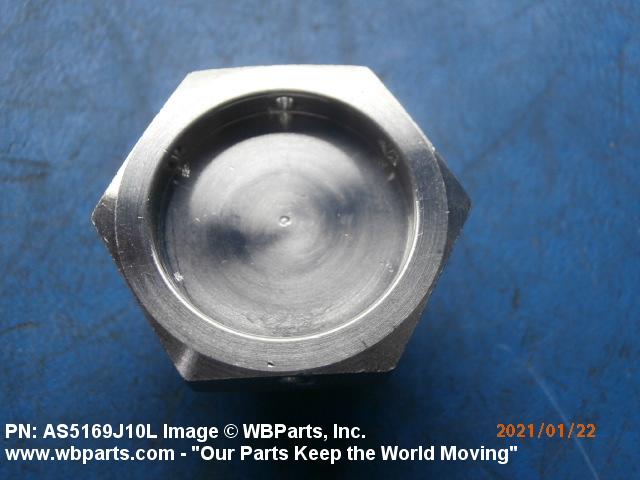

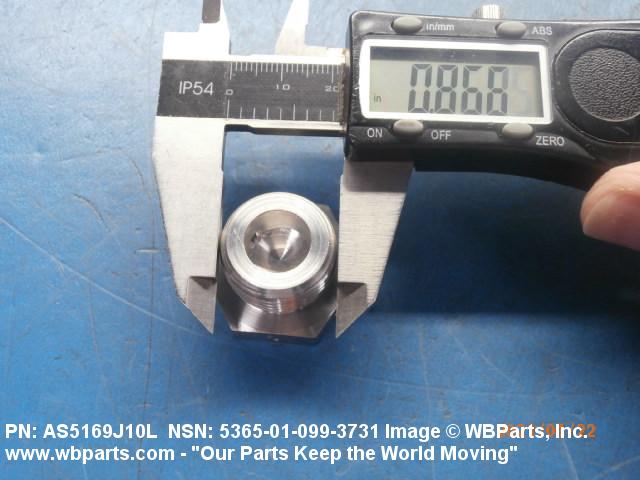

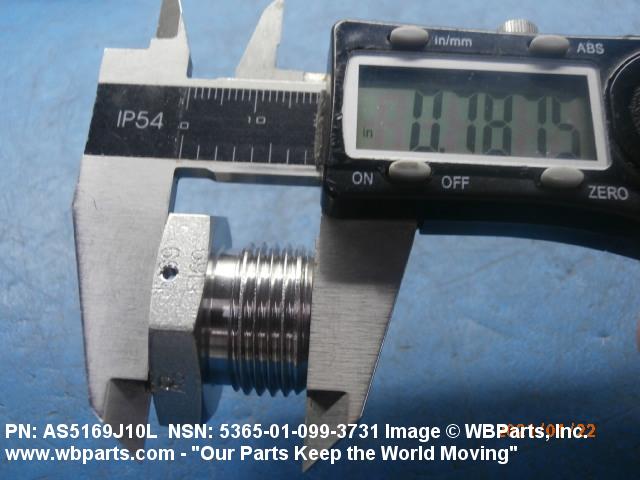

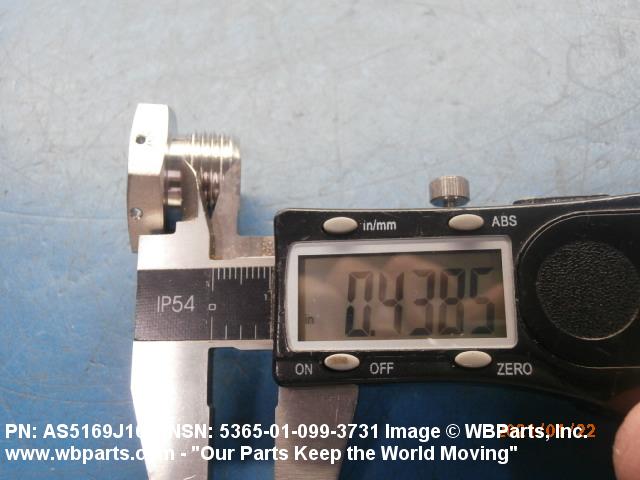

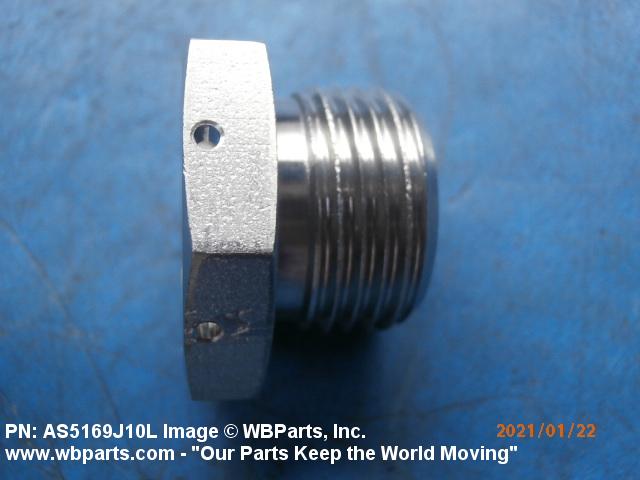

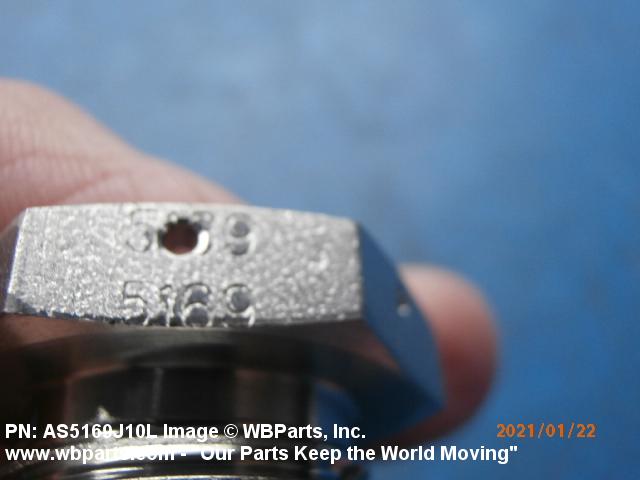

Drawings & Photos | NSN 5365-01-099-3731
Demand History | NSN 5365-01-099-3731
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-099-3731 | 2023-04-93 | 1128 | DIBBS |
| 5365-01-099-3731 | 2022-11-319 | 1128 | DIBBS |
| 5365-01-099-3731 | 2022-08-222 | 440 | DIBBS |
| 5365-01-099-3731 | 2022-07-185 | 316 | DIBBS |
| AS5169J10L | 2021-01-13 | 6 | United States |
| 5365-01-099-3731 | 2020-11-321 | 229 | DIBBS |
| AS5169J10L | 2019-12-336 | 50 | United States |
| AS5169J10L | 2019-11-323 | 1 | United States |
| AS5169K10L | 2019-11-323 | 1 | United States |
| 5365-01-099-3731 | 2014-12-343 | 150 | DIBBS |
Cross Reference | NSN 5365-01-099-3731
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN814-10JL | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| AN814-10KL | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS5169 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5169J10L | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5169K10L | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-099-3731
Related Products | NSN 5365-01-099-3731
Technical Data | NSN 5365-01-099-3731

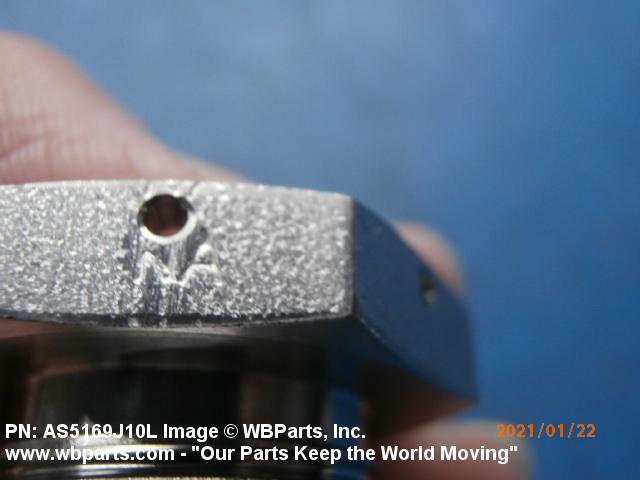

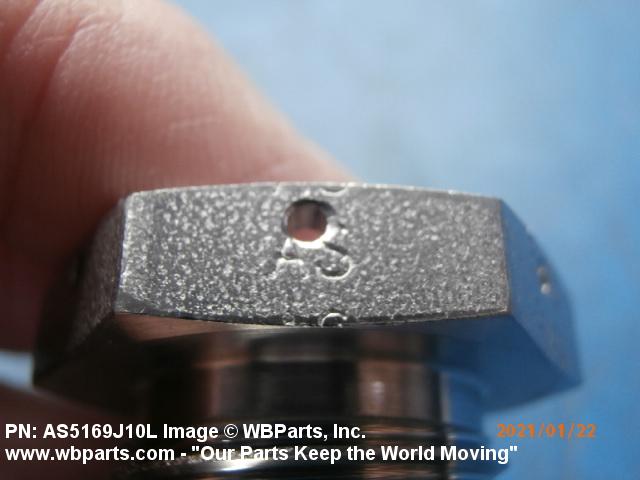

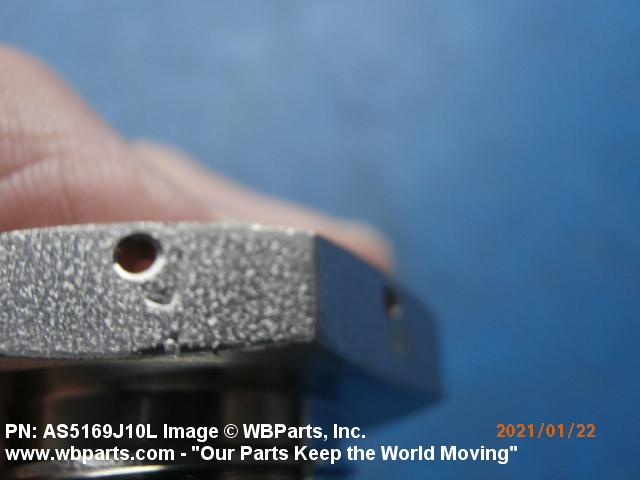

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TY 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C35A PLUG, MACHINE, W/BLEEDER HOLE |

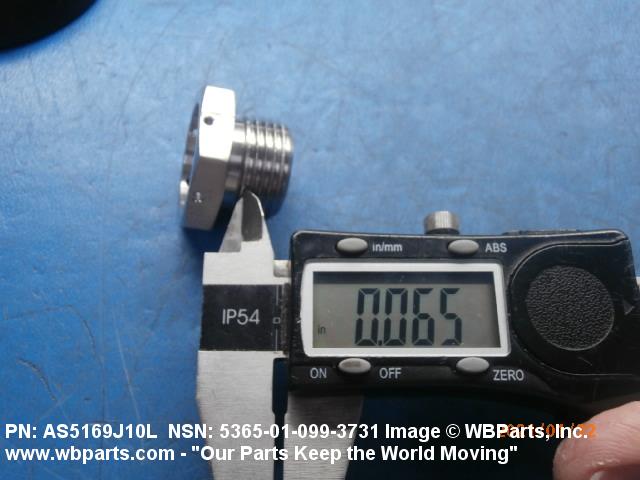

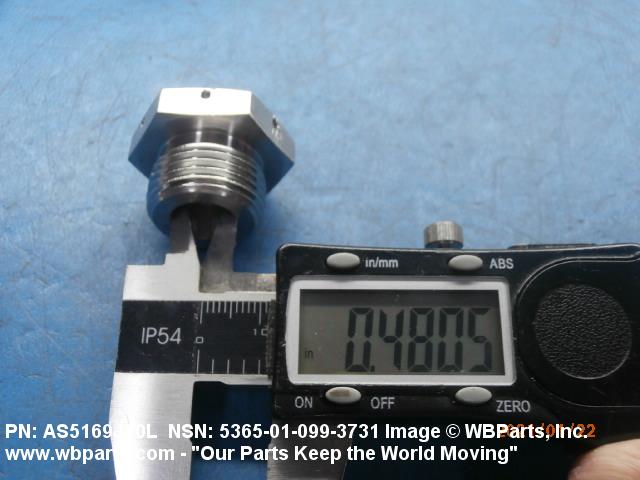

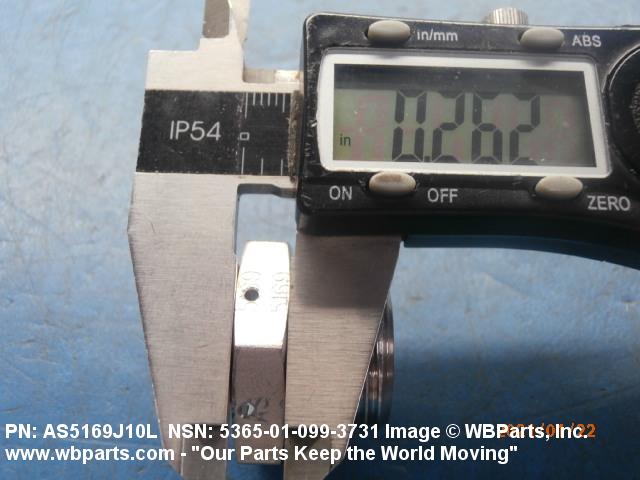

| HEAD HEIGHT | 0.250 INCHES NOMINAL |
