NSN 5365-01-095-6106 12S17787, 12S1778-7, 01-095-6106
Product Details | SLEEVE SPACER
5365-01-095-6106 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: 12S17787, 12S1778-7, 5365-01-095-6106, 01-095-6106, 5365010956106, 010956106
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUN 1980 | 01-095-6106 | 13207 ( SPACER, SLEEVE ) |

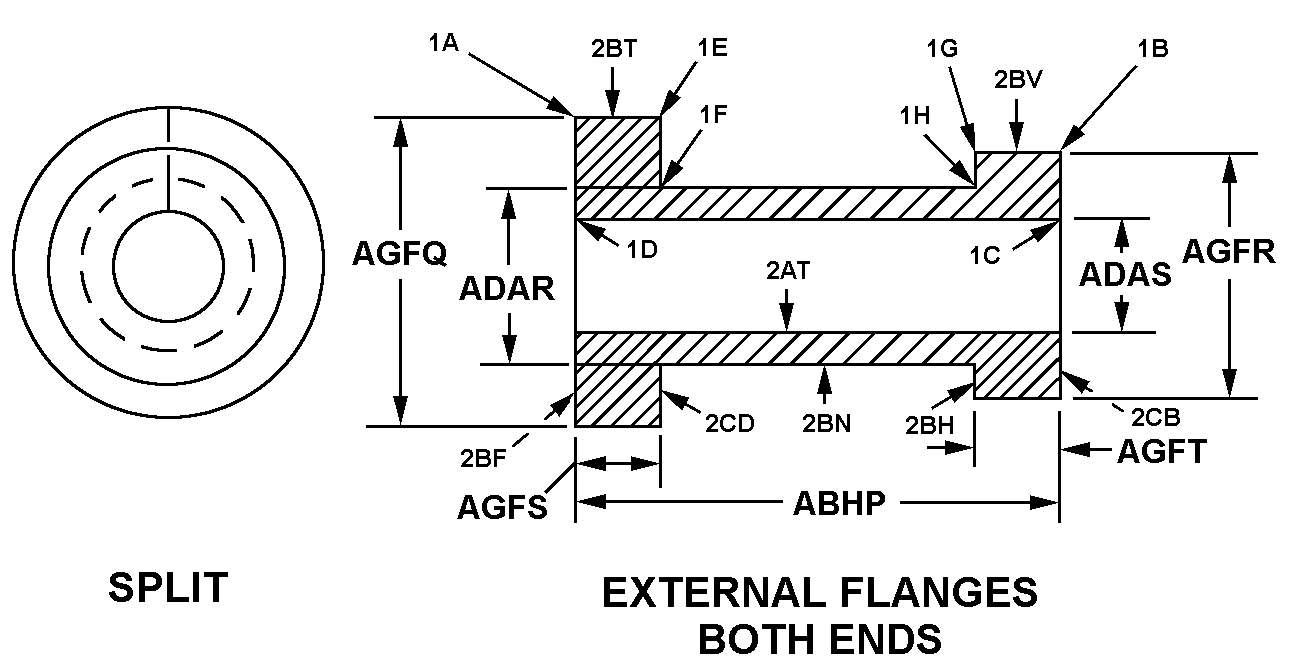

Drawings & Photos | NSN 5365-01-095-6106
Cross Reference | NSN 5365-01-095-6106
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12S1778-7 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-095-6106
Technical Data | NSN 5365-01-095-6106
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 18A-3 SPLIT INTERNAL FLANGE AT BOTH ENDS |
| OVERALL LENGTH | 3.5000 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.8900 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 1.6900 INCHES NOMINAL |
| LEFT INTERNAL FLANGE HOLE DIAMETER | 1.6750 INCHES NOMINAL |
| RIGHT INTERNAL FLANGE HOLE DIAMETER | 1.6750 INCHES NOMINAL |
| LEFT INTERNAL FLANGE WIDTH | 0.5000 INCHES NOMINAL |
| RIGHT INTERNAL FLANGE WIDTH | 0.5000 INCHES NOMINAL |
| LEFT FLANGE OUTSIDE DIAMETER | 1.9940 INCHES NOMINAL |
| RIGHT FLANGE OUTSIDE DIAMETER | 1.9940 INCHES NOMINAL |
| LEFT FLANGE WIDTH | 0.5000 INCHES NOMINAL |
| RIGHT FLANGE WIDTH | 0.5000 INCHES NOMINAL |
| CORNER SHAPE | CHAMFERED OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER SQUARE RIGHT FLANGE OUTSIDE LEFT CORNER SQUARE RIGHT FLANGE BODY CORNER |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 12S1778-7 |
