NSN 5365-01-532-9343 10113233002, 10113233-002, 01-532-9343
Product Details | SLEEVE SPACER
5365-01-532-9343 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: 10113233002, 10113233-002, 5365-01-532-9343, 01-532-9343, 5365015329343, 015329343
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 AUG 2005 | 01-532-9343 | 13207 ( SPACER, SLEEVE ) |

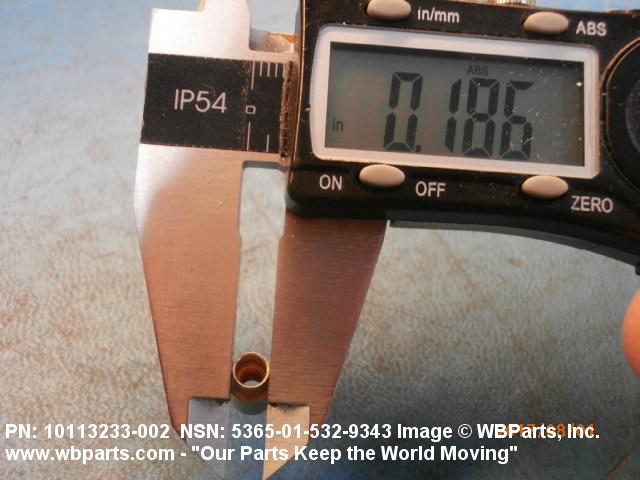

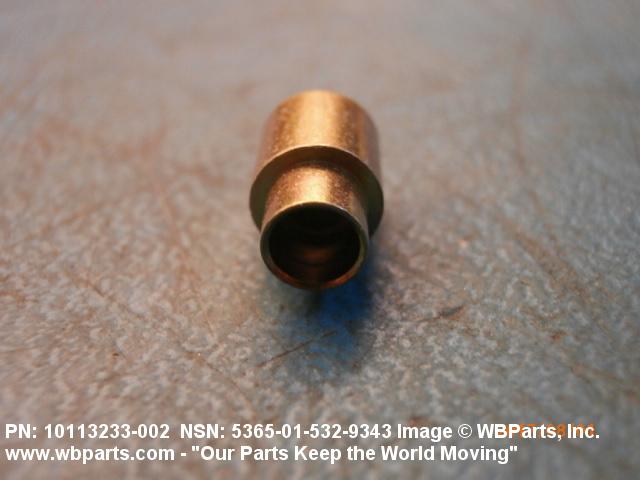

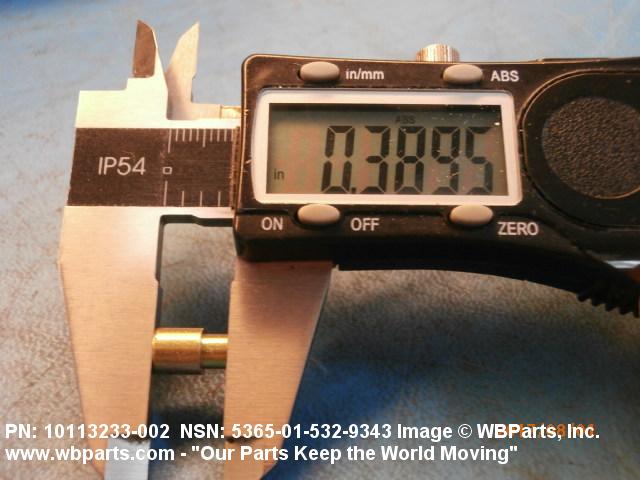

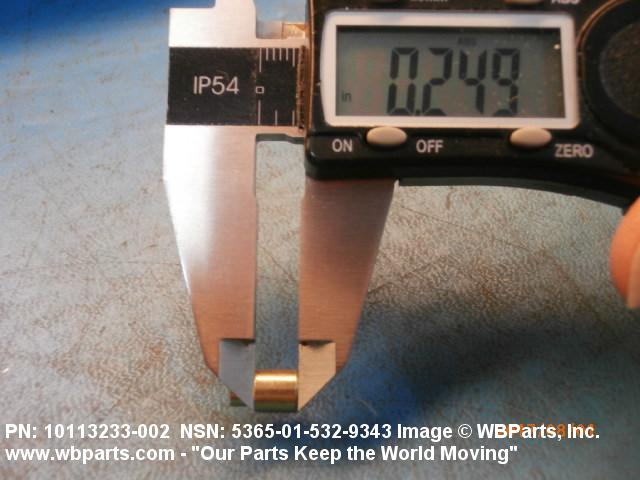

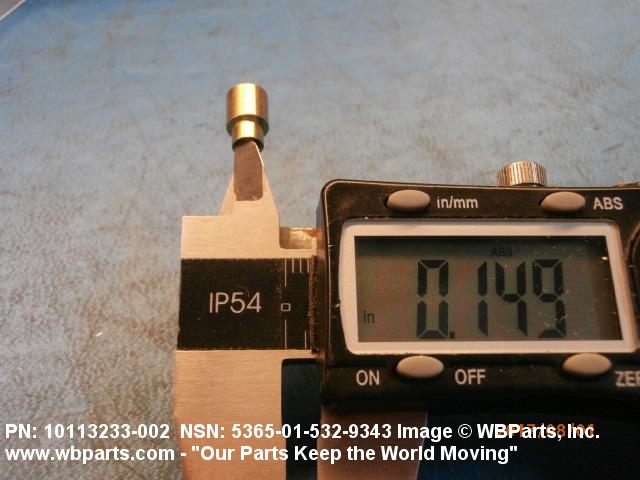

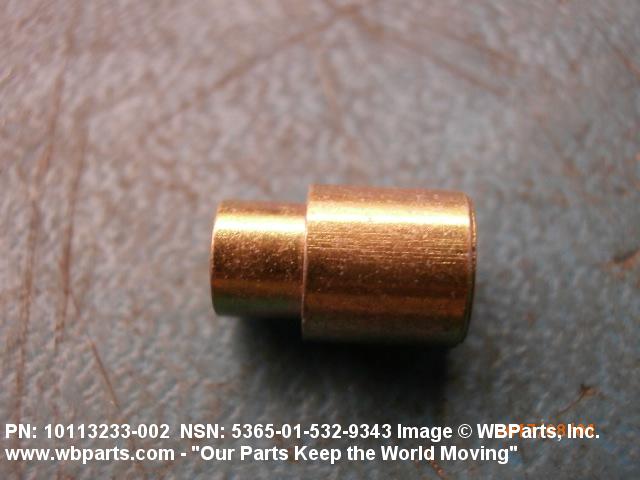

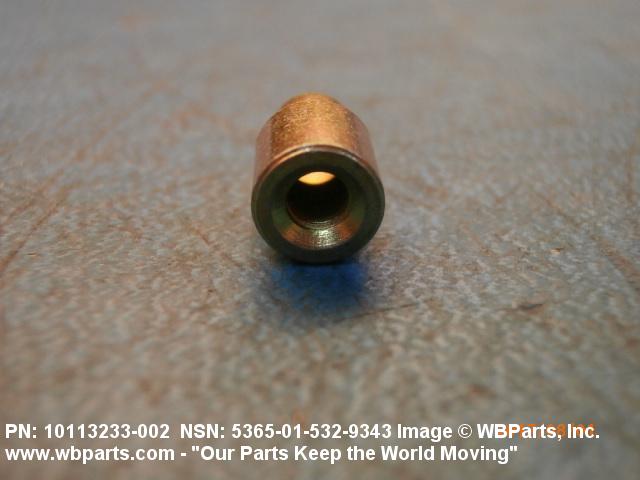

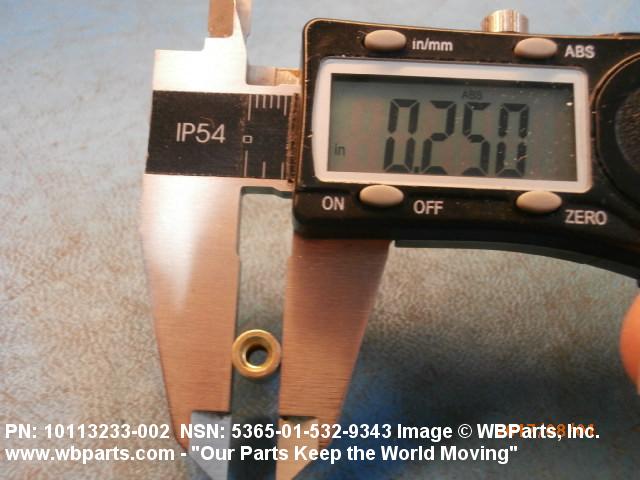

Drawings & Photos | NSN 5365-01-532-9343
Demand History | NSN 5365-01-532-9343
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-532-9343 | 2020-09-247 | 16 | United States |
| 5365-01-532-9343 | 2017-12-349 | 40 | United States |
| 015329343 | 2017-11-312 | 40 | United States |
| 5365-01-532-9343 | 2017-10-290 | 38 | United States |
| 5365-01-532-9343 | 2017-06-165 | 8 | United States |
| 5365-01-532-9343 | 2017-05-138 | 8 | US |
| 5365-01-532-9343 | 2017-03-60 | 8 | United States |
Cross Reference | NSN 5365-01-532-9343
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10113233-002 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-01-532-9343
Technical Data | NSN 5365-01-532-9343
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | NEXT HIGHER ASSEMBLY 11474222 |
| III END ITEM IDENTIFICATION | PATRIOT MISSILE |
Restrictions/Controls & Freight Information | NSN 5365-01-532-9343
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
