NSN 5365-01-058-7389 20066211, 2006621-1, 01-058-7389
Product Details | SLEEVE SPACER
5365-01-058-7389 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: 20066211, 2006621-1, 5365-01-058-7389, 01-058-7389, 5365010587389, 010587389
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAR 1978 | 01-058-7389 | 13207 ( SPACER, SLEEVE ) |

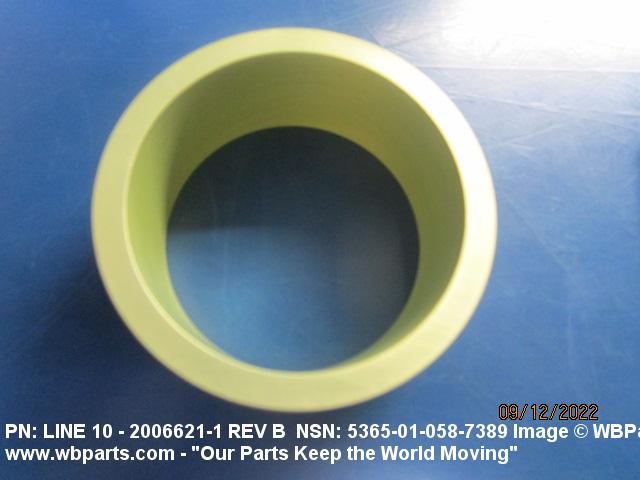

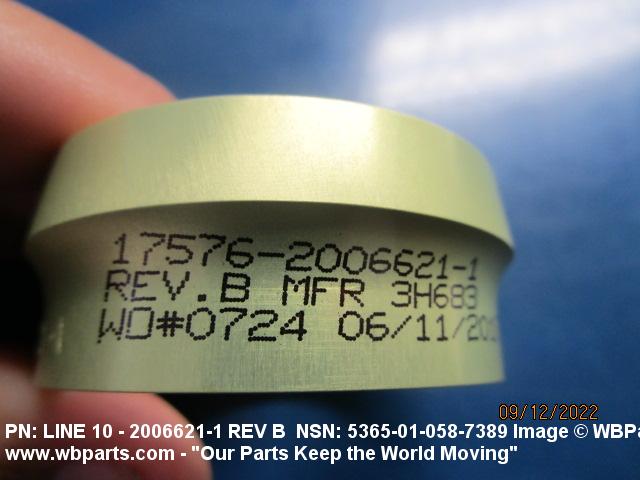

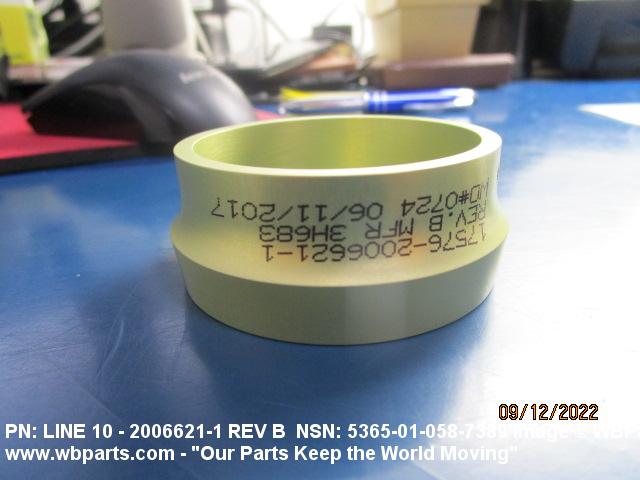

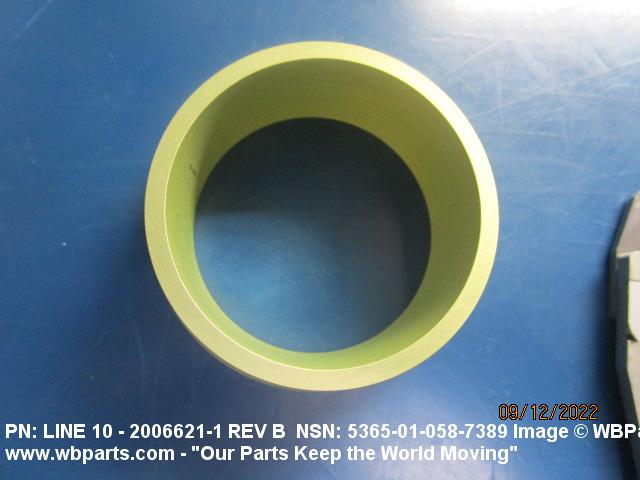

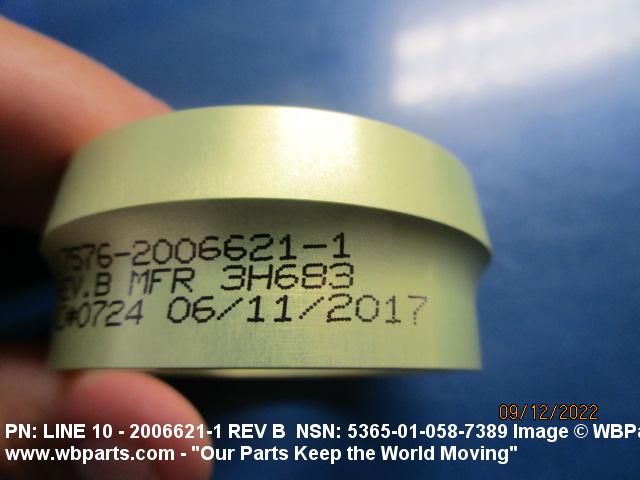

Drawings & Photos | NSN 5365-01-058-7389
Demand History | NSN 5365-01-058-7389
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20066211 | 2023-08-234 | 1 | US |
| 20066211 | 2023-08-226 | 38 | us |
| 5365-01-058-7389 | 2023-08-222 | 38 | US |
| 5365-01-058-7389 | 2023-08-221 | 1 | Indonesia |
| 20066211 | 2023-07-199 | 38 | us |
| 5365-01-058-7389 | 2023-07-194 | 38 | US |
| 20066211 | 2023-02-58 | 1 | US |
| 20066211 | 2023-02-58 | 1 | US |
| 5365-01-058-7389 | 2023-02-39 | 100 | Singapore |
| 20066211 | 2022-08-215 | 1 | United States |
| 5365-01-058-7389 | 2021-12-336 | 100 | Singapore |
| 5365-01-058-7389 | 2021-02-55 | 1 | DIBBS-RFPs |
| 5365-01-058-7389 | 2021-01-19 | 501 | DIBBS |
| 5365-01-058-7389 | 2020-10-288 | 50 | Singapore |
| 5365-01-058-7389 | 2020-09-261 | 883 | DIBBS |
| 5365-01-058-7389 | 2020-08-238 | 50 | Singapore |
| 5365-01-058-7389 | 2020-04-92 | 277 | DIBBS |
| 5365-01-058-7389 | 2020-03-84 | 1262 | DIBBS |
| 5365-01-058-7389 | 2019-12-349 | 167 | DIBBS |
| 5365-01-058-7389 | 2017-02-53 | 8 | MANUAL |
| 5365-01-058-7389 | 2014-09-266 | 1094 | DIBBS |
| 5365-01-058-7389 | 2014-08-240 | 1 | DIBBS-RFPs |
| 20066211 | 2014-05-136 | 2 | US |
| 5365-01-058-7389 | 2014-04-114 | 315 | DIBBS |
| 5365-01-058-7389 | 2014-02-35 | 745 | DIBBS |
| 5365-01-058-7389 | 2009-01-28 | 660 | DIBBS |
| 5365-01-058-7389 | 2007-12-340 | 2 | US |
Cross Reference | NSN 5365-01-058-7389
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2006621-1 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-058-7389
Related Products | NSN 5365-01-058-7389
Technical Data | NSN 5365-01-058-7389
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/9,7075-T73 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2 CL 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

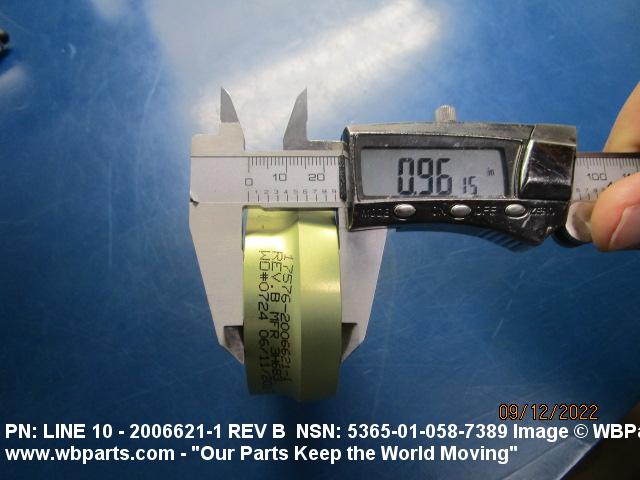

| OVERALL LENGTH | 0.9600 INCHES NOMINAL |

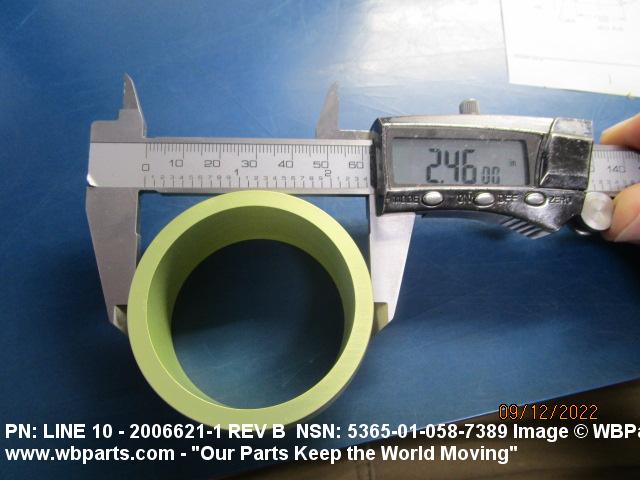

| BODY OUTSIDE DIAMETER | 2.4670 INCHES NOMINAL |

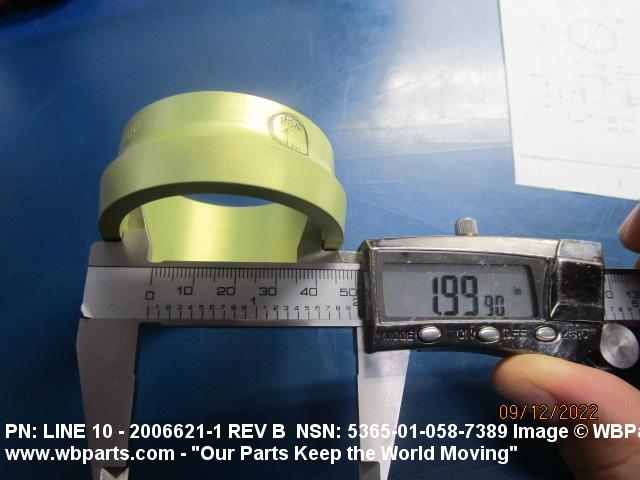

| BODY INSIDE DIAMETER | 1.9990 INCHES MINIMUM AND 2.0010 INCHES MAXIMUM |
| SPECIAL FEATURES | EXTERNAL 7 DEGREE OUTWARD TAPER,FROM 2.375 IN. OD FOR 0.280 IN.,THEN CURVES INWARD 0.380 IN. RADIUS; ENDS IN A FINAL OD OF 2.250 IN. |
| MANUFACTURERS CODE | 17576 |
| DESIGN CONTROL REFERENCE | 2006621-1 |
Restrictions/Controls & Freight Information | NSN 5365-01-058-7389
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106940 | SPACERS/SEPARATORS I/S NOI TUBULAR |
| Less than car load rating | T | 55 |
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-058-7389
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
