NSN 5365-01-053-1131 MS990206, MS9902-06, AS990206

Product Details | MACHINE THREAD PLUG

5365-01-053-1131 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.

Part Alternates: MS990206, MS9902-06, AS990206, AS9902-06, 5365-01-053-1131, 01-053-1131, 5365010531131, 010531131

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	28 DEC 1977	01-053-1131	03801 ( PLUG, MACHINE THREAD )

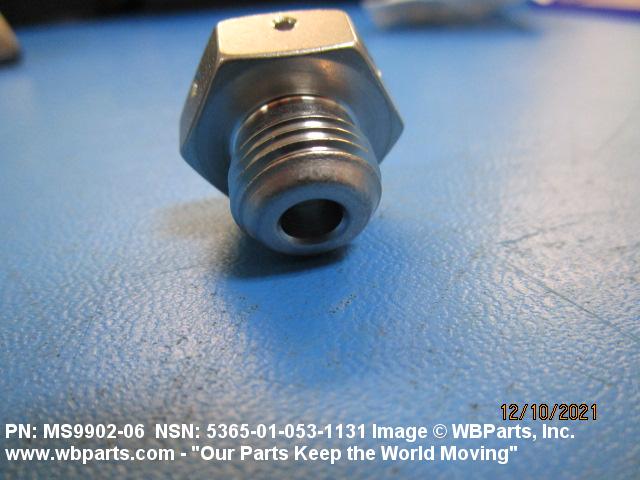

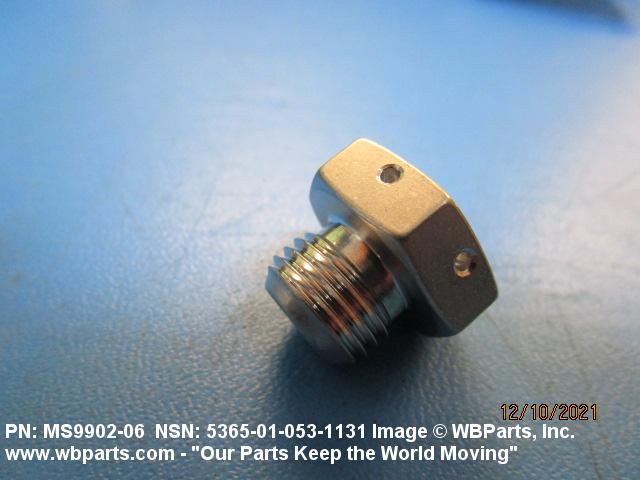

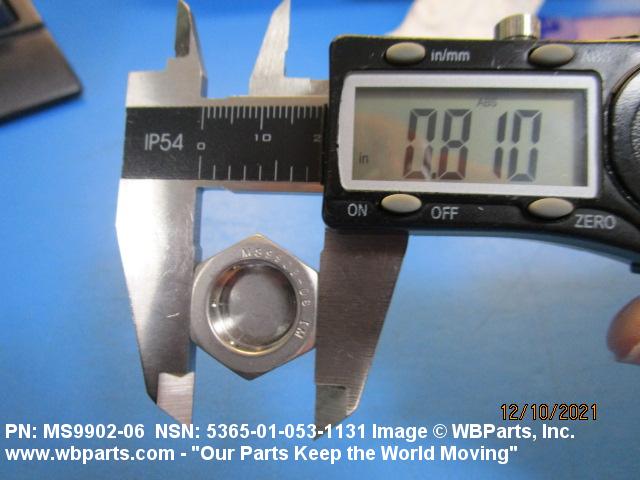

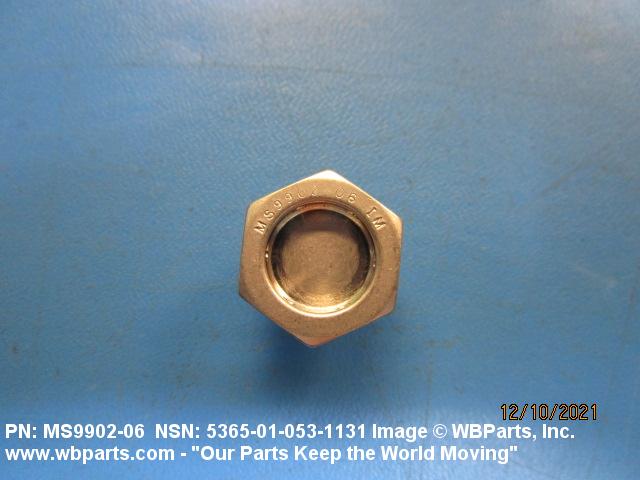

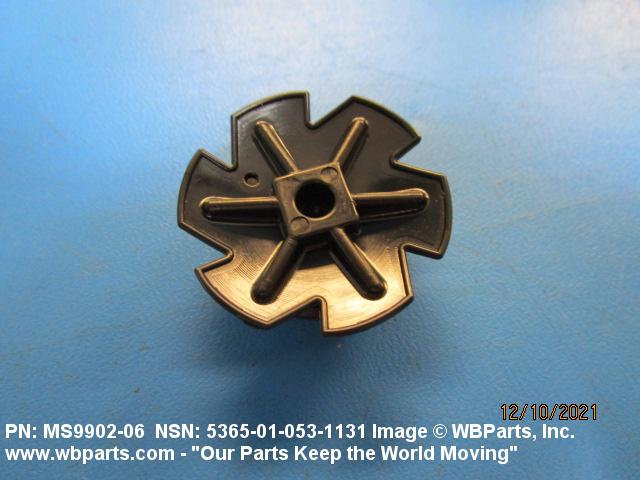

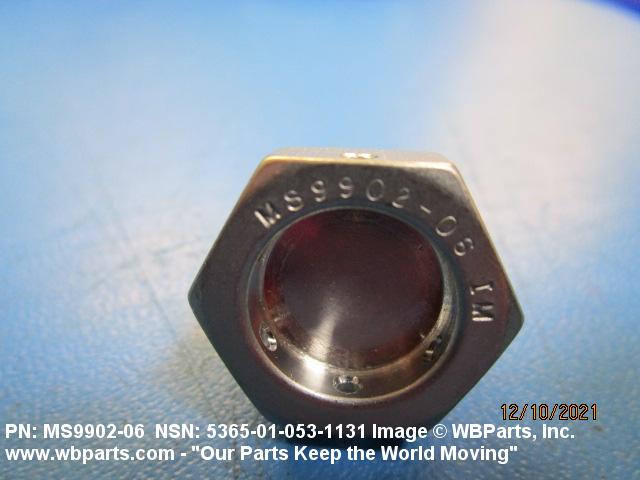

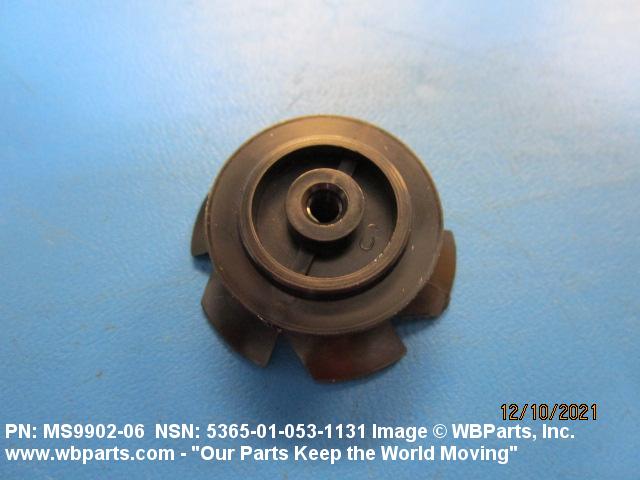

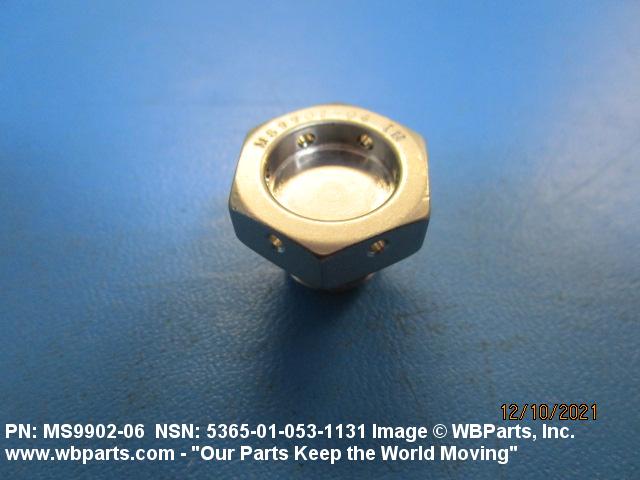

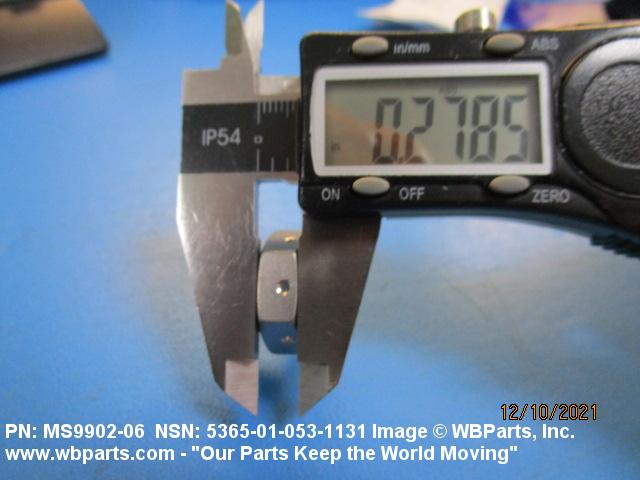

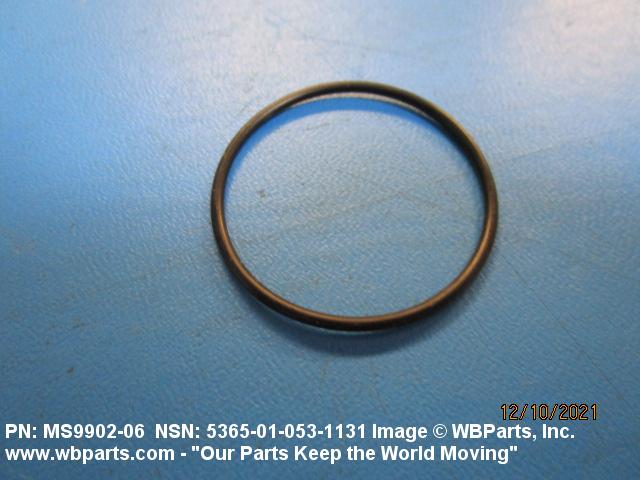

Drawings & Photos | NSN 5365-01-053-1131

Part Number	Request Date	QTY	Origin
MS990206	2024-02-53	2	United States
MS990206	2024-02-51	2	United States
MS990206	2022-12-355	200	Hong Kong
MS990206	2021-12-337	1	United States
MS990206	2021-01-18	2	United States
MS990206	2020-09-245	100	Hong Kong
MS990206	2019-07-200	1	US
MS9902-06	2019-01-24	1	EG
5365-01-053-1131	2018-09-261	1609	DIBBS
5365-01-053-1131	2018-07-192	1865	DIBBS
MS9902-06	2018-05-135	1	FX
5365-01-053-1131	2018-04-113	787	DIBBS
5365-01-053-1131	2017-07-191	187	DIBBS
MS990206	2017-04-115	2	Singapore
MS990206	2017-02-51	2	US
MS990206	2017-02-46	1	IN
AS990206	2016-10-284	1	Germany
5365-01-053-1131	2016-08-216	168	DIBBS
5365-01-053-1131	2016-06-160	99	DIBBS
MS990206	2016-05-146	1	IN
MS990206	2016-05-146	1	IN
MS990206	2016-02-54	1	United States
MS9902-06	2015-03-85	1	US
MS990206	2015-03-82	1	US
MS9902-06	2015-03-69	500	US
5365-01-053-1131	2014-11-307	170	DIBBS
5365-01-053-1131	2014-06-161	169	DIBBS
5365-01-053-1131	2013-09-266	103	DIBBS
5365-01-053-1131	2013-07-198	50	US
MS990206	2013-02-56	50	US
MS9902-06	2012-06-171	14	Malaysia
MS990206	2011-10-304	1	United States
MS990206	2011-06-172	10	Germany
MS990206	2011-01-26	1	United States
5365-01-053-1131	2010-09-251	470	DIBBS
5365-01-053-1131	2010-05-126	202	DIBBS

Cross Reference | NSN 5365-01-053-1131

Part Number	Cage Code	Manufacturer
AS9902-06	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS9902-06	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5365-01-053-1131

Compare

Related Products | NSN 5365-01-053-1131

5365-01-053-1209, 5365-01-053-1210, 5365-01-053-1211, 5365-01-053-1212, 5365-01-053-1214

Technical Data | NSN 5365-01-053-1131

Characteristic	Specifications
MATERIAL	STEEL COMP 347 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5646 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	C9 PLUG, MACHINE
HEAD HEIGHT	0.280 INCHES NOMINAL
OVERALL LENGTH	0.680 INCHES NOMINAL
CONNECTION STYLE	J1 PLAIN
THREAD SERIES DESIGNATOR	UNJF EXTERNAL
NOMINAL THREAD SIZE	0.562 INCHES EXTERNAL
THREAD CLASS	3A EXTERNAL
THREAD DIRECTION	RIGHT-HAND EXTERNAL
THREAD LENGTH	0.400 INCHES NOMINAL EXTERNAL
SEAT ANGLE	45.0 DEGREES
HEAD TYPE	CORED
HEAD CORE DIAMETER	0.842 INCHES NOMINAL
BODY TYPE	CORED
BODY CORE DIAMETER	0.219 INCHES NOMINAL
CORE DEPTH	0.340 INCHES NOMINAL
(NON-CORE DATA) SAFETY WIRE HOLE QUANTITY	6

Restrictions/Controls & Freight Information | NSN 5365-01-053-1131

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5365-01-053-1131

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
