NSN 5365-01-051-6289 6269454, 626945-4, 01-051-6289
Product Details | MACHINE THREAD PLUG
5365-01-051-6289 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 6269454, 626945-4, 5365-01-051-6289, 01-051-6289, 5365010516289, 010516289
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 DEC 1977 | 01-051-6289 | 03801 ( PLUG, MACHINE THREAD ) |

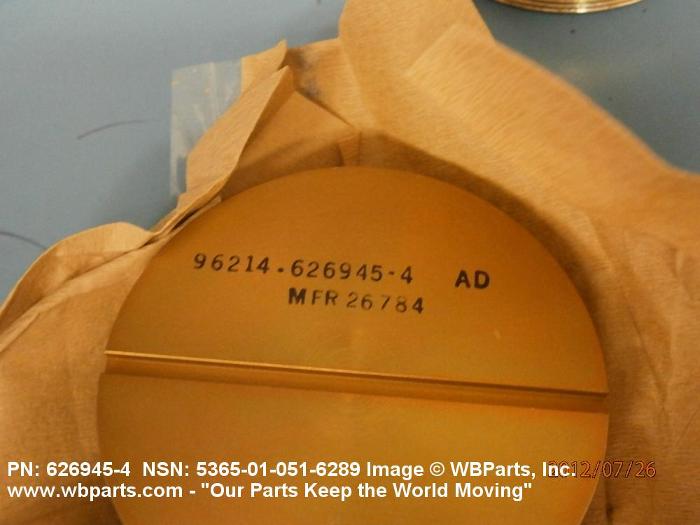

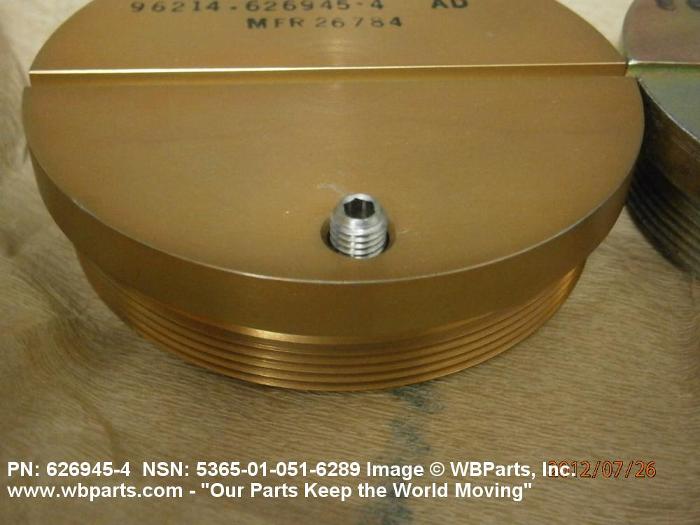

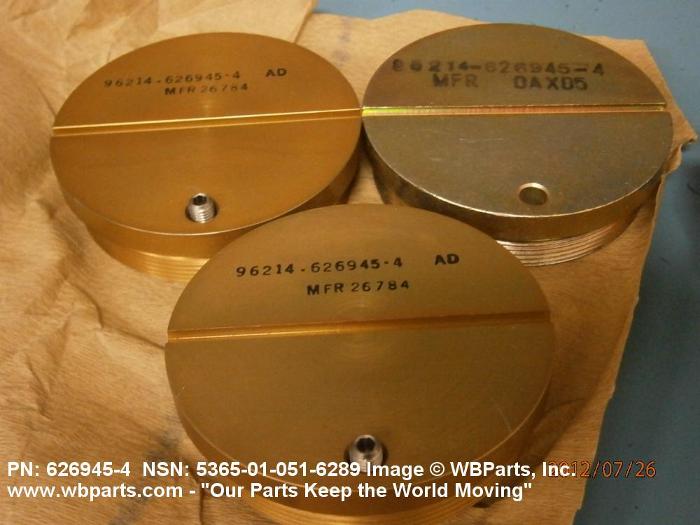

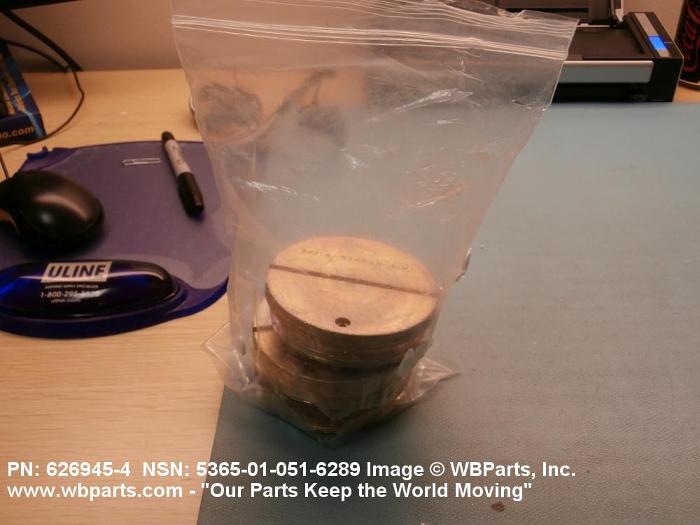

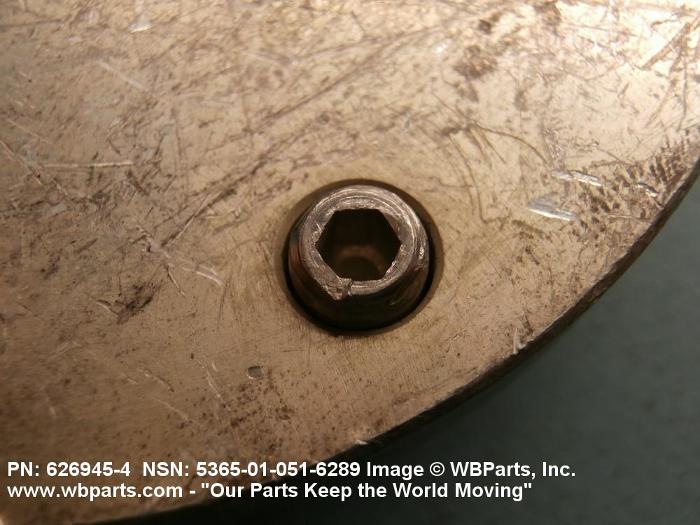

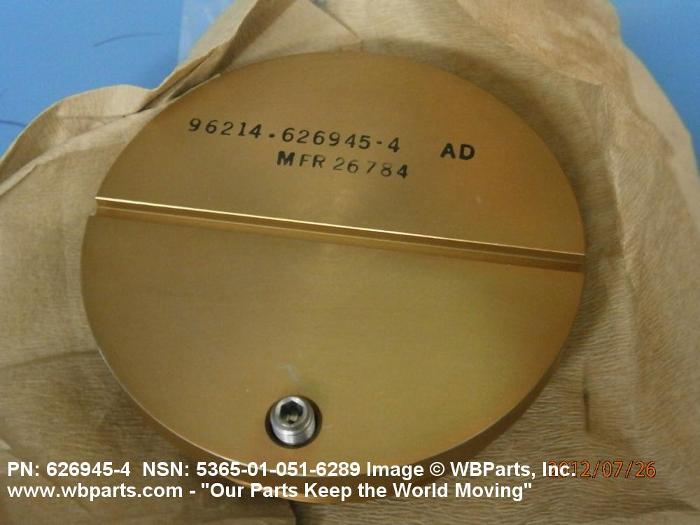

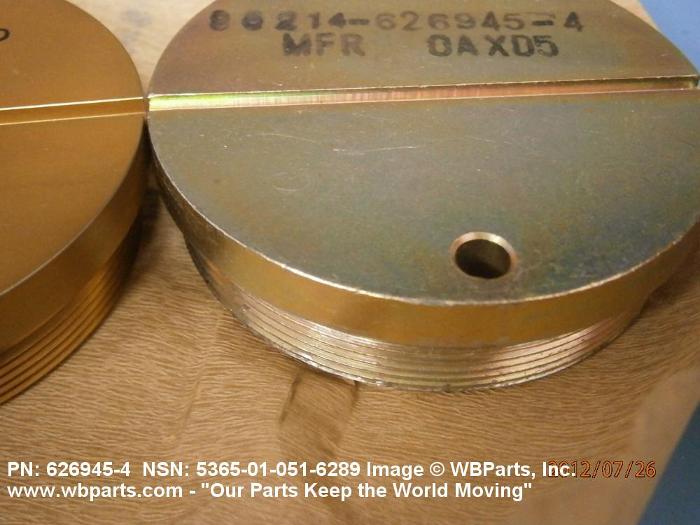

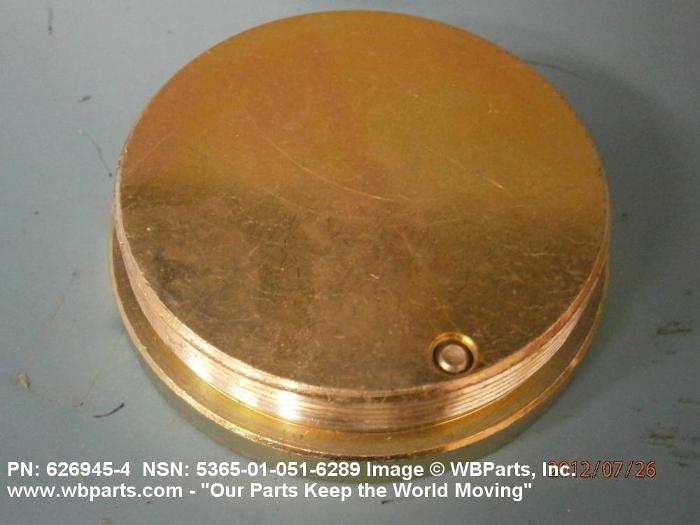

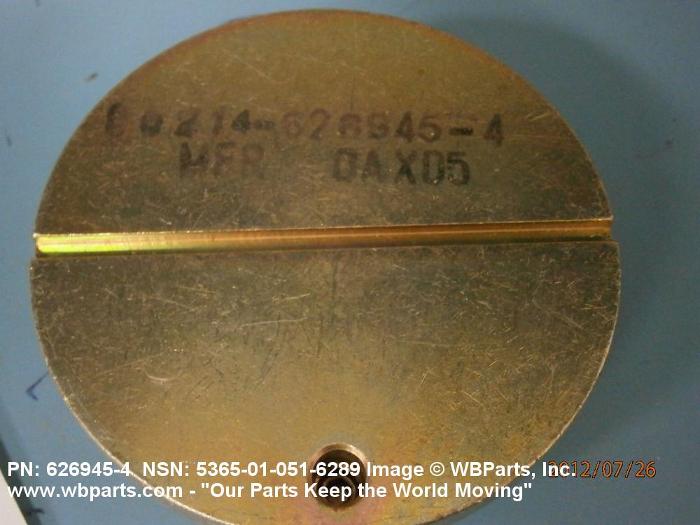

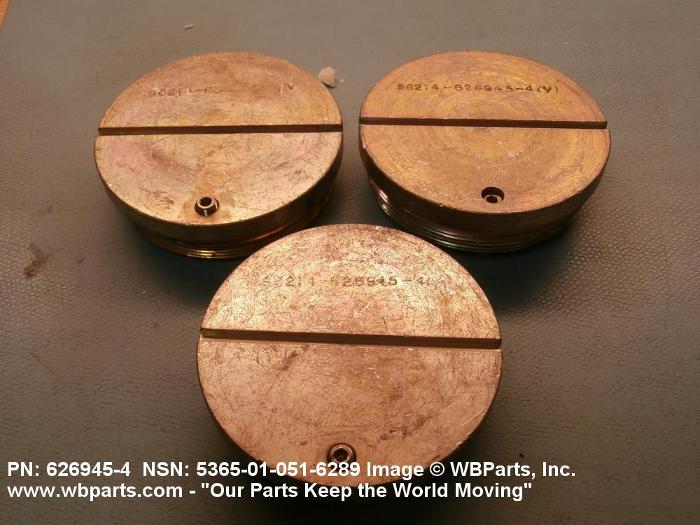

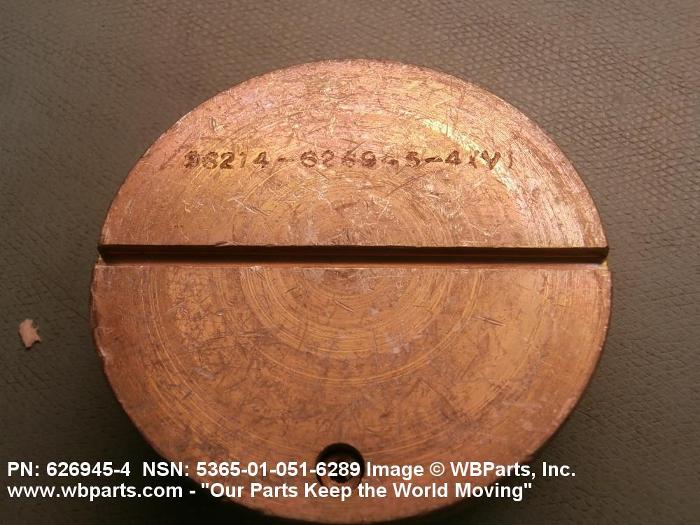

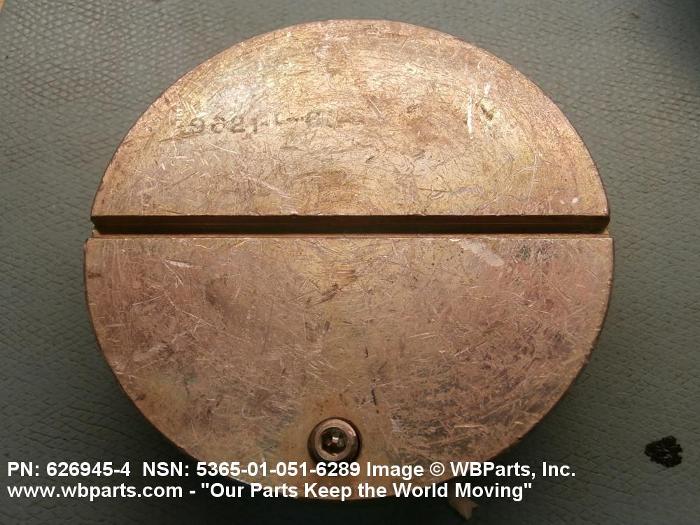

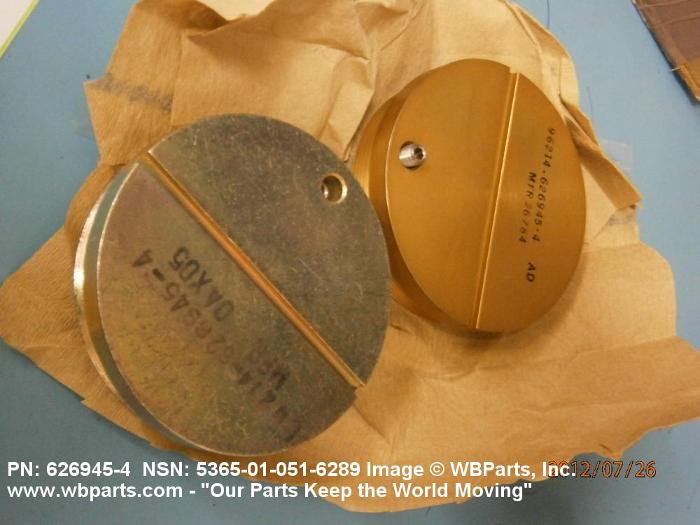

Drawings & Photos | NSN 5365-01-051-6289
Demand History | NSN 5365-01-051-6289
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-051-6289 | 2024-03-81 | 15 | Singapore |
| 5365-01-051-6289 | 2022-05-131 | 3 | United States |
| 5365-01-051-6289 | 2017-06-174 | 1 | US |
| 5365-01-051-6289 | 2012-10-305 | 1 | United States |
| 5365-01-051-6289 | 2012-07-199 | 3 | United States |
| 5365-01-051-6289 | 2010-04-116 | 10 | DIBBS |
| 5365-01-051-6289 | 2010-04-102 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-051-6289
Related Products | NSN 5365-01-051-6289
Technical Data | NSN 5365-01-051-6289
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1213 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637,COND CD FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3,COLOR IRIDESCENT YELLOW (F-46) FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C11 PLUG, MACHINE |
| HEAD DIAMETER | 3.210 INCHES MINIMUM AND 3.230 INCHES MAXIMUM |
| HEAD HEIGHT | 0.340 INCHES NOMINAL |
| OVERALL LENGTH | 0.855 INCHES MINIMUM AND 0.865 INCHES MAXIMUM |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 2.9513 INCHES INTERNAL 2.9557 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 16 EXTERNAL |
| THREAD CLASS | 2A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.370 INCHES NOMINAL EXTERNAL |
| SEAT NOMINAL RADIUS | 1.445 INCHES |
| HEAD TYPE | SOLID |
| BODY TYPE | SOLID |
| EXTERIOR COLOR | YELLOW OVERALL |
| SPECIAL FEATURES | DRILL SETSCREW HOLE 1.300 IN. FROM CENTER,0.212 TO 0.222 IN. DIA; 0.266 DIA C DRILL BY 0.290 DEEP; .250 - 28 UNF - 2B THD MOD |
| (NON-CORE DATA) SURFACE FINISH | 250.0 MICROINCHES |
| MANUFACTURERS CODE | 96214 |
| DESIGN CONTROL REFERENCE | 626945-4 |
Restrictions/Controls & Freight Information | NSN 5365-01-051-6289
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106940 | SPACERS/SEPARATORS I/S NOI TUBULAR |
| Less than car load rating | T | 55 |
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-051-6289
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AQ | SU:AMMUNITION AND EXPLOSIVES |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
