NSN 5365-01-033-2614 MC7689, A7269, A-7269
Product Details | MAGNETIC MACHINE THREAD PLUG
5365-01-033-2614 A threaded machine thread plug with integral magnet in the body usually used in lubricating or hydraulic systems.
Part Alternates: MC7689, A7269, A-7269, 708Z902, 5365-01-033-2614, 01-033-2614, 5365010332614, 010332614
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 JAN 1977 | 01-033-2614 | 22339 ( PLUG, MACHINE THREAD, MAGNETIC ) |
Drawings & Photos | NSN 5365-01-033-2614
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-033-2614
Related Products | NSN 5365-01-033-2614
Technical Data | NSN 5365-01-033-2614
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

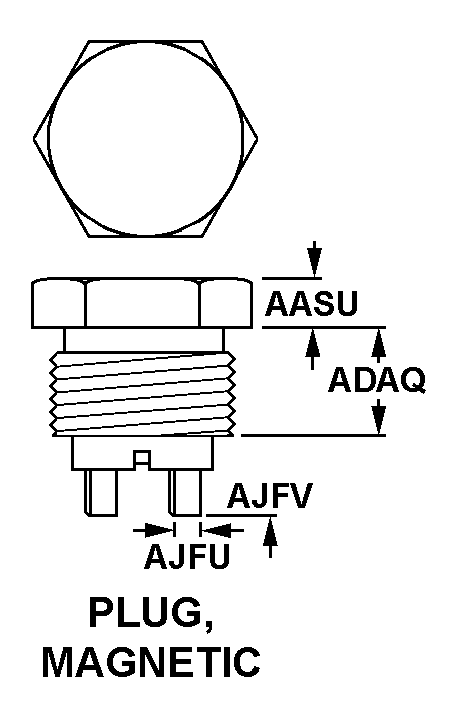

| STYLE DESIGNATOR | E7 PLUG, MAGNETIC |
| HEAD HEIGHT | 0.210 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| BODY LENGTH | 0.500 INCHES MINIMUM AND 0.660 INCHES MAXIMUM |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |
| NOMINAL THREAD SIZE | 0.375 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 24 EXTERNAL |
| THREAD CLASS | 2A EXTERNAL |
| THREAD PITCH DIAMETERS | 0.3430 TO 0.3479 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| (NON-CORE DATA) SAFETY WIRE HOLE QUANTITY | 2 |
