Product Details | MAGNETIC MACHINE THREAD PLUG
5365-00-835-2504 A threaded machine thread plug with integral magnet in the body usually used in lubricating or hydraulic systems.
Part Alternates: 2005T33P01, 710Z12Q4, 7302281.02, 7322081.02, 5365-00-835-2504, 00-835-2504, 5365008352504, 008352504, 732208102, 730228102
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 DEC 1966 | 00-835-2504 | 22339 ( PLUG, MACHINE THREAD, MAGNETIC ) |
Drawings & Photos | NSN 5365-00-835-2504

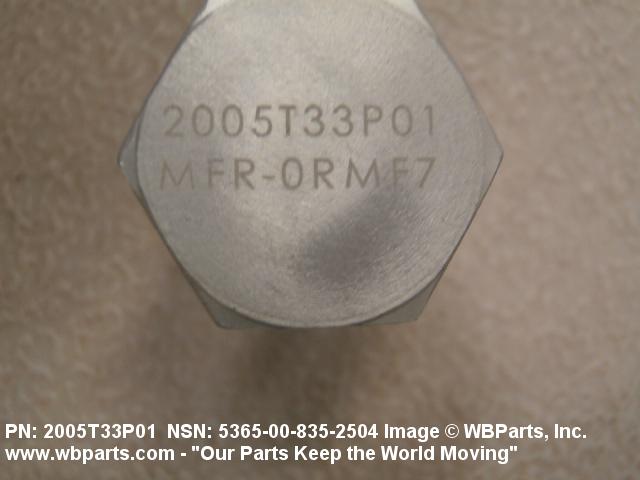

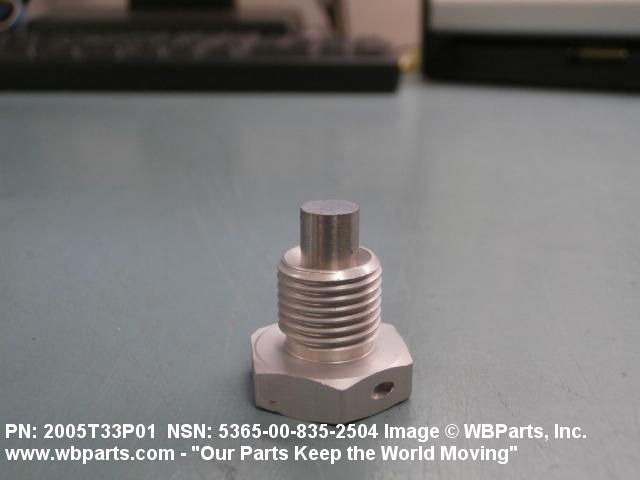

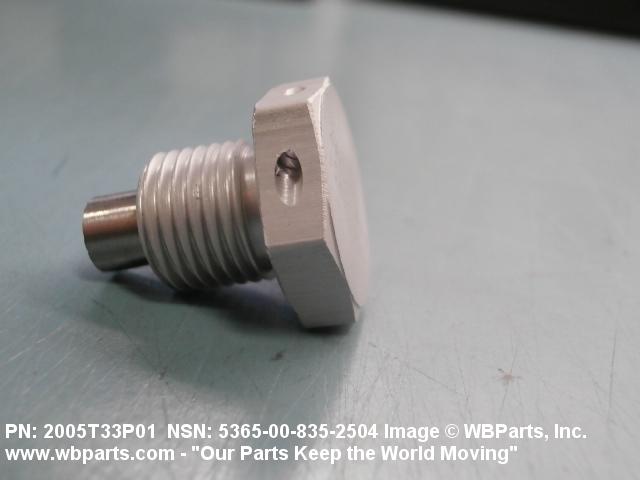

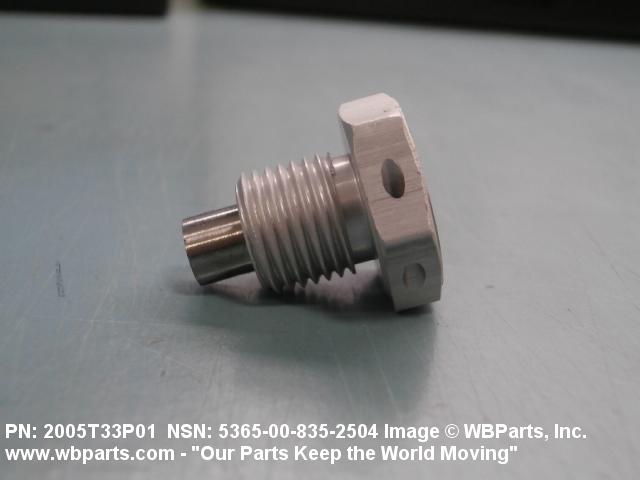

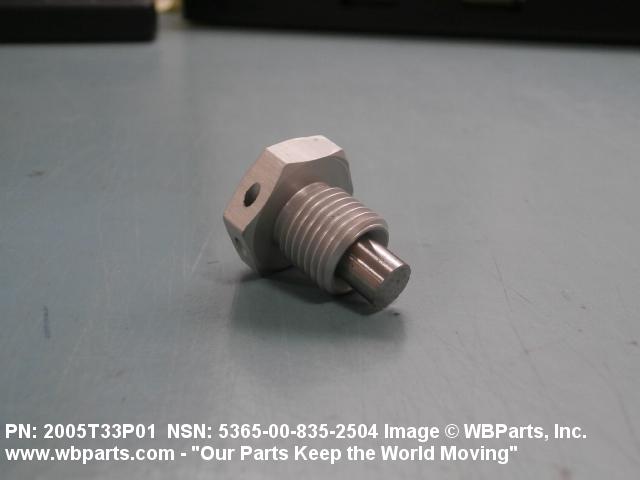

Demand History | NSN 5365-00-835-2504
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7302281.01 | 2023-06-158 | 38 | DIBBS |
| 7302281.01 | 2023-05-145 | 38 | DIBBS |
| 7302281.01 | 2022-12-357 | 24 | DIBBS |
| 7302281.01 | 2022-12-349 | 24 | DIBBS |
| 7302281.01 | 2022-08-237 | 16 | DIBBS |
| 7302281.01 | 2022-08-226 | 16 | DIBBS |
| 5365-00-835-2504 | 2017-07-208 | 50 | US |
| 5365-00-835-2504 | 2016-10-287 | 1 | DIBBS-RFPs |
| 5365-00-835-2504 | 2016-01-19 | 12 | TW |
| 5365-00-835-2504 | 2013-12-350 | 30 | United States |
| 5365-00-835-2504 | 2012-09-262 | 323 | DIBBS |
| 5365-00-835-2504 | 2012-03-75 | 144 | DIBBS |
| 2005T33P01 | 2012-02-53 | 10 | Canada |
| 5365-00-835-2504 | 2012-02-37 | 161 | DIBBS |
| 5365-00-835-2504 | 2011-11-308 | 161 | DIBBS |
| 5365-00-835-2504 | 2011-08-228 | 181 | DIBBS |
| 5365-00-835-2504 | 2010-04-116 | 28 | DIBBS |
| 5365-00-835-2504 | 2009-11-307 | 225 | DIBBS |
| 5365-00-835-2504 | 2008-03-67 | 70 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-835-2504
Related Products | NSN 5365-00-835-2504
Technical Data | NSN 5365-00-835-2504
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2011 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/3,T3 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2470 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

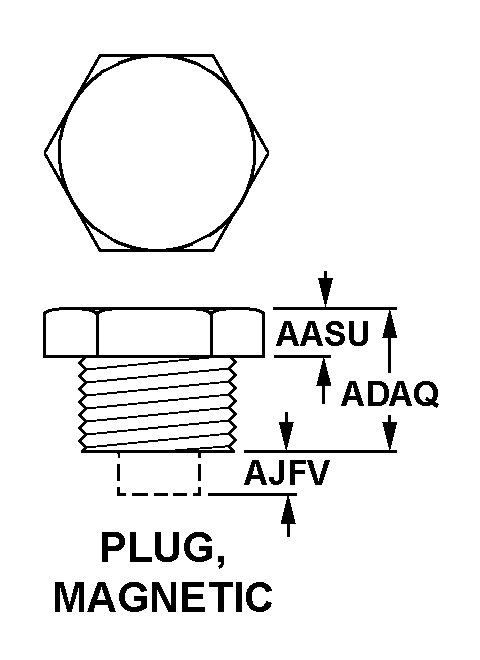

| STYLE DESIGNATOR | E16 PLUG, MAGNETIC |
| HEAD HEIGHT | 0.205 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| BODY LENGTH | 0.435 INCHES MINIMUM AND 0.465 INCHES MAXIMUM |
| MAGNET PROJECTION LENGTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |
| NOMINAL THREAD SIZE | 0.500 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.360 INCHES NOMINAL EXTERNAL |
| (NON-CORE DATA) SAFETY WIRE HOLE QUANTITY | 2 |
| MANUFACTURERS CODE | 82829 |
| MFR SOURCE CONTROLLING REFERENCE | 7302281.02 |
