NSN 5365-00-899-5759 8851897, 8851897-01, 9525504
Product Details | EXTERNALLY THREADED RING
5365-00-899-5759 A cylindrically shaped item with a concentric bore and a peripheral thread over its entire length or over a portion thereof. One face is drilled, slotted, knurled, or has projecting lugs for installation and/or removal purposes. Excludes RETAINER, OPTICAL ELEMENT.202132500005365000000
Part Alternates: 8851897, 8851897-01, 9525504, 5365-00-899-5759, 00-899-5759, 5365008995759, 008995759, 885189701
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 FEB 1967 | 00-899-5759 | 08417 ( RING, EXTERNALLY THREADED ) |

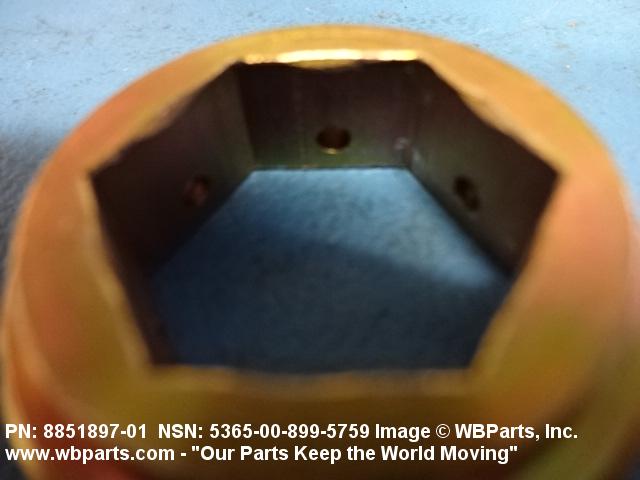

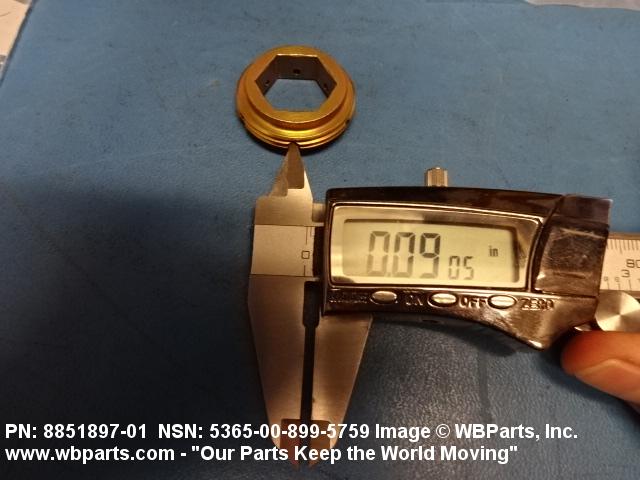

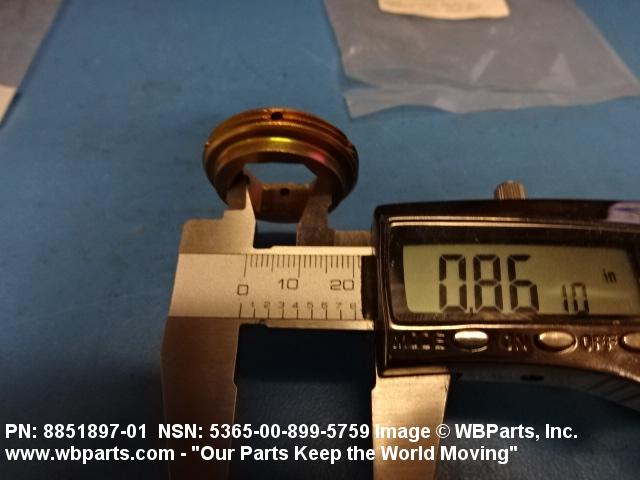

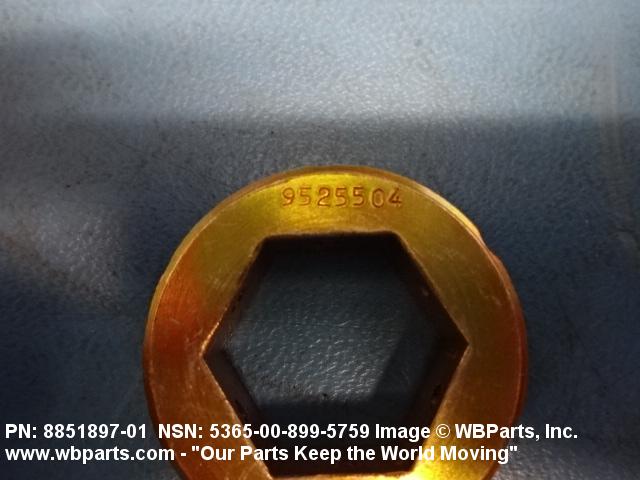

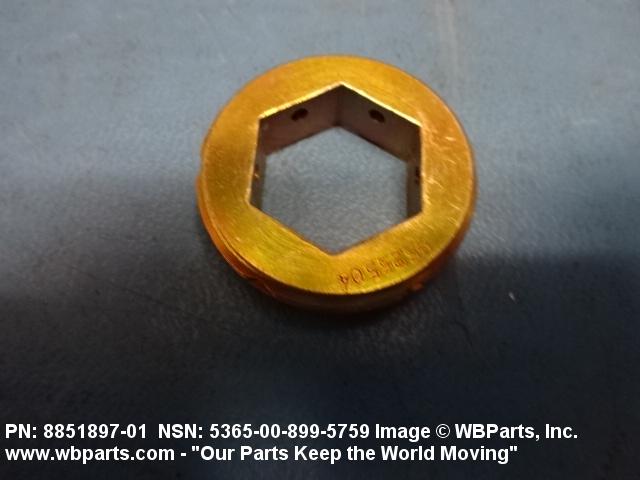

Drawings & Photos | NSN 5365-00-899-5759
Demand History | NSN 5365-00-899-5759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-899-5759 | 2023-12-361 | 228 | US |
| 9525504 | 2020-12-364 | 76 | Malaysia |
| 9525504 | 2020-12-336 | 76 | Malaysia |
| 9525504 | 2020-11-330 | 76 | Malaysia |
| 9525504 | 2019-07-191 | 380 | US |
| 5365-00-899-5759 | 2018-06-157 | 12000 | DIBBS |
| 5365-00-899-5759 | 2018-05-128 | 4838 | DIBBS |
| 5365-00-899-5759 | 2018-01-23 | 300 | Philippines |
| 5365-00-899-5759 | 2017-12-359 | 10000 | DIBBS |
| 5365-00-899-5759 | 2017-11-325 | 5500 | DIBBS |
| 5365-00-899-5759 | 2017-11-320 | 5168 | DIBBS |
| 5365-00-899-5759 | 2017-11-311 | 4967 | DIBBS |
| 5365-00-899-5759 | 2017-10-303 | 500 | GU |
| 5365-00-899-5759 | 2017-10-292 | 646 | United States |
| 5365-00-899-5759 | 2017-10-275 | 300 | Philippines |
| 5365-00-899-5759 | 2017-09-256 | 646 | DIBBS |
| 5365-00-899-5759 | 2017-08-236 | 6500 | DIBBS |
| 5365-00-899-5759 | 2017-07-198 | 10956 | DIBBS |
| 5365-00-899-5759 | 2015-07-207 | 30001 | DIBBS |
| 5365-00-899-5759 | 2014-06-178 | 3538 | DIBBS |
| 5365-00-899-5759 | 2014-04-120 | 1 | DIBBS-RFPs |
| 5365-00-899-5759 | 2013-12-345 | 16133 | DIBBS |
| 5365-00-899-5759 | 2013-10-277 | 11953 | DIBBS |
| 5365-00-899-5759 | 2013-08-224 | 33699 | DIBBS |
| 5365-00-899-5759 | 2013-06-155 | 24 | US |
| 5365-00-899-5759 | 2013-05-128 | 4 | US |
| 5365-00-899-5759 | 2012-12-366 | 6816 | DIBBS |
| 5365-00-899-5759 | 2012-10-290 | 6695 | DIBBS |
| 5365-00-899-5759 | 2012-07-191 | 605 | DIBBS |
| 5365-00-899-5759 | 2012-01-26 | 13512 | DIBBS |
| 5365-00-899-5759 | 2011-10-284 | 5370 | DIBBS |
| 5365-00-899-5759 | 2011-08-214 | 2849 | DIBBS |
| 5365-00-899-5759 | 2011-04-96 | 240 | DIBBS |
| 5365-00-899-5759 | 2009-12-358 | 14158 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-899-5759
Related Products | NSN 5365-00-899-5759
Technical Data | NSN 5365-00-899-5759
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-634-CANCELED |
| OVERALL LENGTH | 0.354 INCHES NOMINAL |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| DRIVE TYPE | HEX SHAPED CENTER HOLE |
| WIDTH | 0.750 INCHES NOMINAL |
| DEPTH | 0.354 INCHES NOMINAL |
| THREAD SIZE | 1.313-16 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| BEVELED THREAD | NOT INCLUDED |
| BORE ANNULAR INTERNAL SERRATION | NOT INCLUDED |
| MANUFACTURERS CODE | 98747 |
| DESIGN CONTROL REFERENCE | 8851897-01 |
Restrictions/Controls & Freight Information | NSN 5365-00-899-5759
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-899-5759
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
