NSN 5365-00-398-3784 HS7931, SWE84347, SWE84347E
Product Details | EXTERNALLY THREADED RING
5365-00-398-3784 A cylindrically shaped item with a concentric bore and a peripheral thread over its entire length or over a portion thereof. One face is drilled, slotted, knurled, or has projecting lugs for installation and/or removal purposes. Excludes RETAINER, OPTICAL ELEMENT.202132500005365000000
Part Alternates: HS7931, SWE84347, SWE84347E, 5365-00-398-3784, 00-398-3784, 5365003983784, 003983784
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-398-3784 | 08417 ( RING, EXTERNALLY THREADED ) |

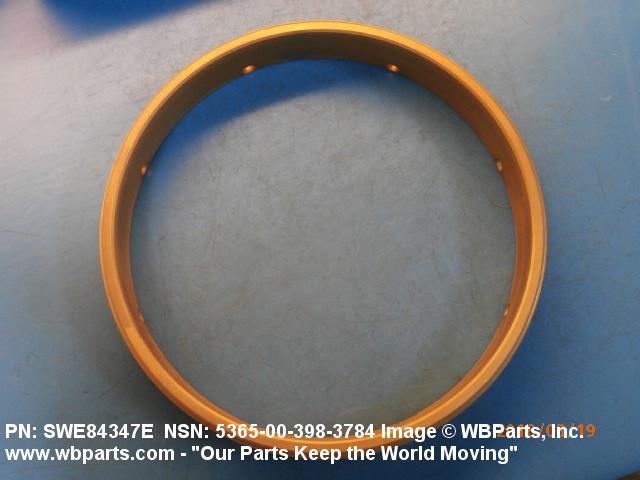

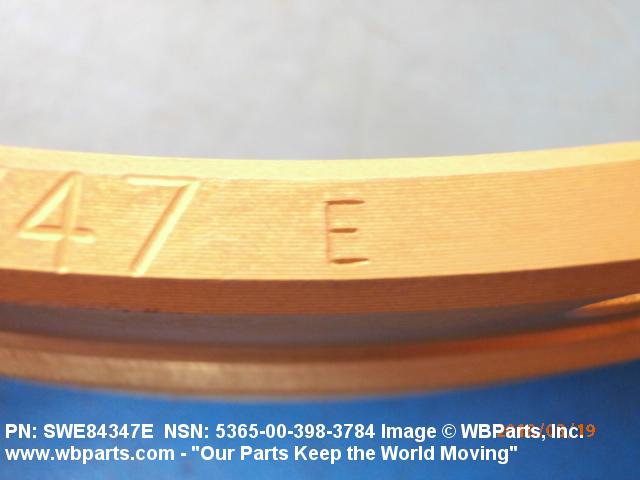

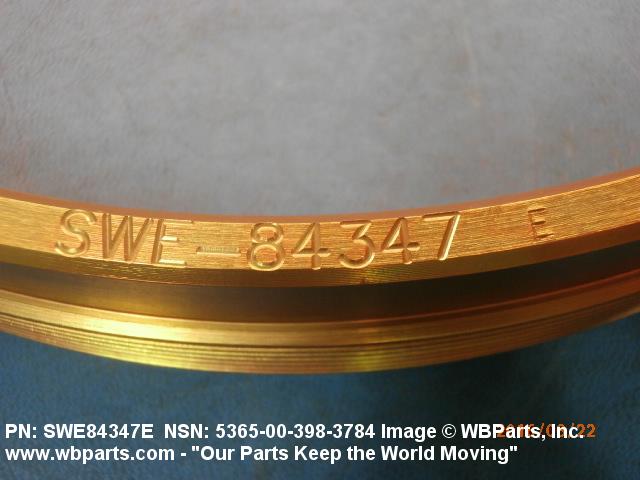

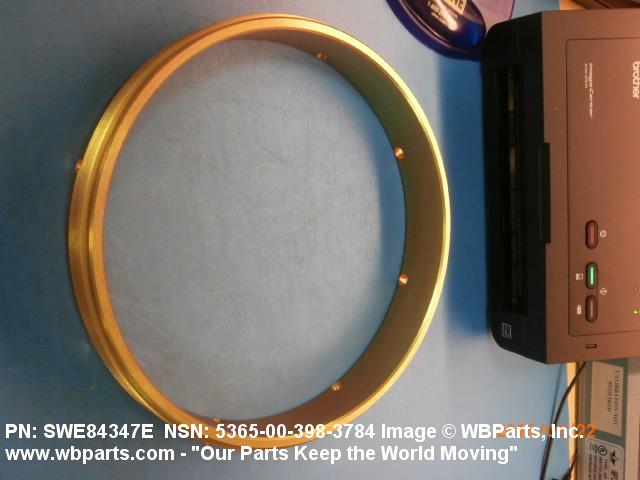

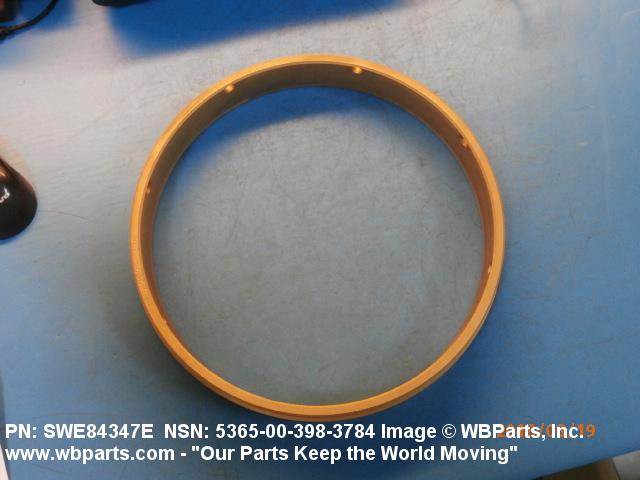

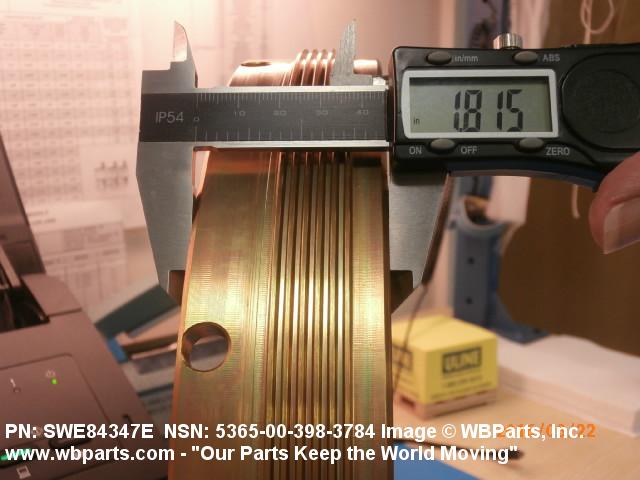

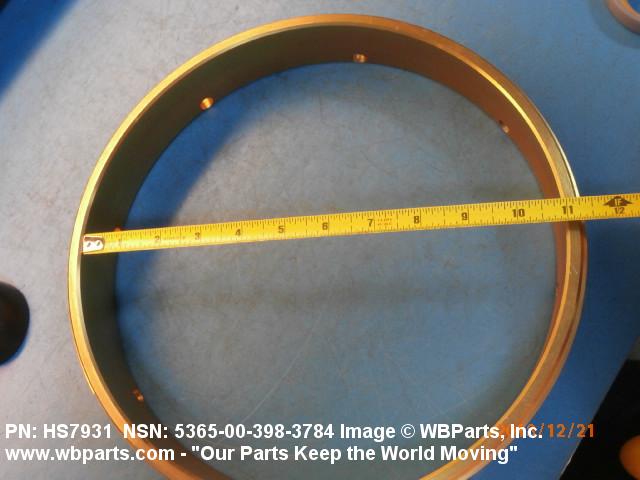

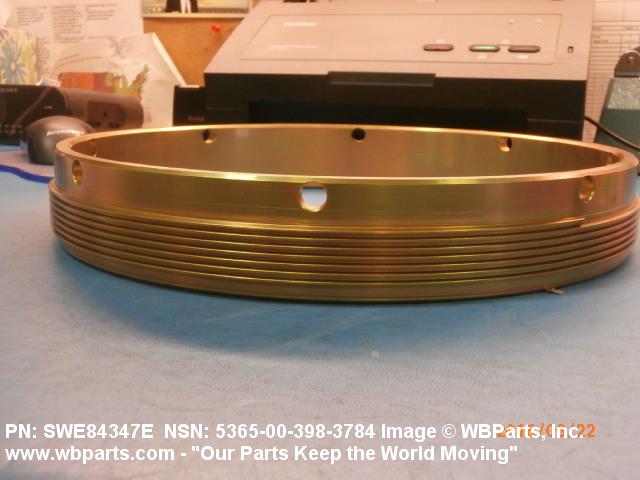

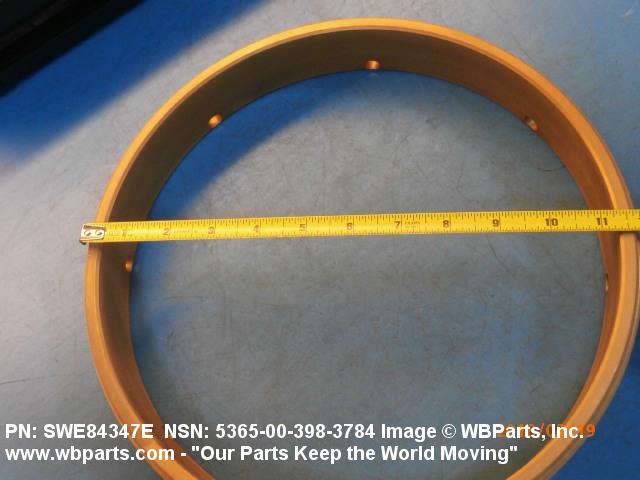

Drawings & Photos | NSN 5365-00-398-3784
Demand History | NSN 5365-00-398-3784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SWE84347E | 2024-10-295 | 1 | Malaysia |
| SWE84347 | 2024-04-109 | 1 | Malaysia |
| SWE84347 | 2024-04-108 | 1 | Malaysia |
| SWE84347E | 2023-03-79 | 1 | United States |
| SWE84347E | 2022-06-152 | 1 | Malaysia |
| SWE84347 | 2021-11-321 | 1 | United States |
| SWE84347E | 2021-11-321 | 1 | United States |
| SWE84347E | 2021-01-07 | 1 | Malaysia |
| SWE84347E | 2020-11-330 | 1 | US |
| 5365-00-398-3784 | 2020-08-232 | 1 | ES |
| HS7931 | 2020-08-218 | 1 | United States |
| 5365-00-398-3784 | 2020-06-174 | 1 | us |
| HS7931 | 2018-12-348 | 1 | Portugal |
| 5365-00-398-3784 | 2018-10-289 | 1 | Portugal |
| 5365-00-398-3784 | 2018-03-72 | 2 | United States |
| 5365-00-398-3784 | 2016-08-237 | 30 | Malaysia |
| 5365-00-398-3784 | 2016-08-222 | 1 | Malaysia |
| SWE84347 | 2016-07-203 | 1 | Malaysia |
| SWE84347E | 2016-07-195 | 20 | |
| 5365-00-398-3784 | 2016-07-194 | 20 | NECO |
| 5365-00-398-3784 | 2016-03-75 | 1 | Malaysia |
| SWE84347 | 2015-02-48 | 1 | United States |
| SWE84347 | 2015-02-47 | 1 | United States |
| SWE84347E | 2014-10-296 | 1 | Malaysia |
| 5365-00-398-3784 | 2014-10-296 | 1 | MY |
| SWE84347E | 2014-10-291 | 10 | |
| 5365-00-398-3784 | 2014-09-261 | 10 | NECO |
| 5365-00-398-3784 | 2014-02-36 | 1 | United States |
| SWE84347 | 2011-08-237 | 30 | |
| 5365-00-398-3784 | 2011-08-236 | 30 | NECO |
| 5365-00-398-3784 | 2011-01-26 | 1 | Brazil |
| 5365-00-398-3784 | 2006-10-285 | 1 | Thailand |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-398-3784
Related Products | NSN 5365-00-398-3784
Technical Data | NSN 5365-00-398-3784
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, SAE 1020 |
| SURFACE TREATMENT | CADMIUM PLATED |
| OVERALL LENGTH | 1.938 INCHES NOMINAL |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| DRIVE TYPE | DRILLED FACE |
| ACCOMMODATION TYPE AND QUANTITY | 8 HOLES |
| DIAMETER | 0.391 INCHES NOMINAL |
| DEPTH | 0.4305 INCHES NOMINAL |
| ANGLE BETWEEN ACCOMMODATIONS IN DEG | 45.0 |
| RADIUS FROM GEOMETRIC AXIS TO ACCOMMODATION | 0.7187 INCHES NOMINAL |
| THREAD SIZE | 11-57/64 IN. -8 |
| SCREW THREAD SERIES DESIGNATOR | UNS |
| THREAD PITCH DIAMETERS | 11.6460 TO 11.8900 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| BEVELED THREAD | NOT INCLUDED |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 10.985 INCHES NOMINAL |
| BORE ANNULAR INTERNAL SERRATION | NOT INCLUDED |
| SETSCREW LOCKING NOTCH | NOT INCLUDED |
| MANUFACTURERS CODE | 87641 |
| DESIGN CONTROL REFERENCE | SWE84347E |
