NSN 5365-00-776-2109 7762109, 00-776-2109, 007762109
Product Details | MACHINE THREAD PLUG
5365-00-776-2109 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 7762109, 5365-00-776-2109, 00-776-2109, 5365007762109, 007762109
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-776-2109 | 03801 ( PLUG, MACHINE THREAD ) |
Drawings & Photos | NSN 5365-00-776-2109
Cross Reference | NSN 5365-00-776-2109
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7762109 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-776-2109
Technical Data | NSN 5365-00-776-2109
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1035 OR STEEL COMP 1040 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A108 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 1 CL 1 FED SPEC 1ST TREATMENT RESPONSE OR QQ-Z-325 TY 2 CL 2 FED SPEC 2ND TREATMENT RESPONSE OVERALL |

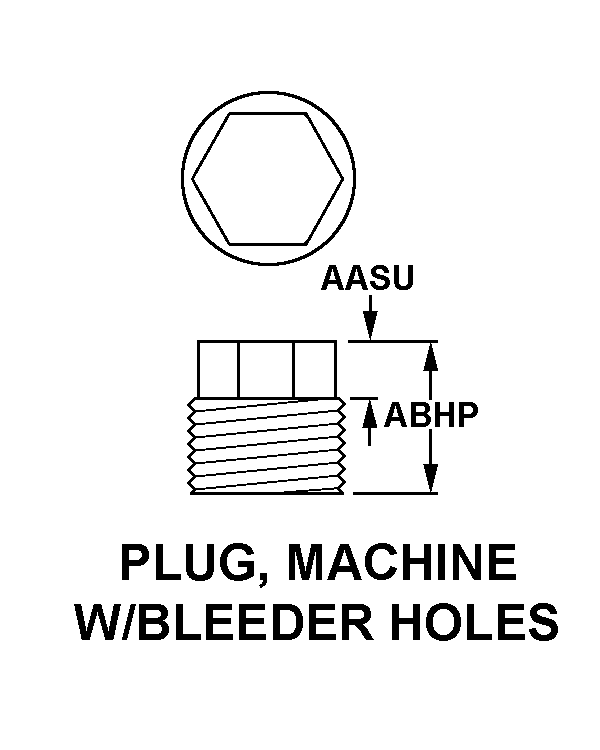

| STYLE DESIGNATOR | C40A PLUG, MACHINE, W/BLEEDER HOLE |
| HEAD HEIGHT | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 1.938 INCHES NOMINAL |
| BLEEDER HOLE CENTER TO THREADED END DISTANCE | 0.500 INCHES NOMINAL |
| BLEEDER HOLE DIAMETER | 0.531 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 2.500 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 16 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.938 INCHES NOMINAL EXTERNAL |
| SPECIAL FEATURES | COUNTERBORE DRIVE END 1.188 IN. DIA 0.812 IN. DEEP |
