NSN 5365-00-774-7219 10552973, 00-774-7219, 007747219
Product Details | MACHINE THREAD PLUG
5365-00-774-7219 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 10552973, 5365-00-774-7219, 00-774-7219, 5365007747219, 007747219
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 MAR 1968 | 00-774-7219 | 03801 ( PLUG, MACHINE THREAD ) |
Drawings & Photos | NSN 5365-00-774-7219
Cross Reference | NSN 5365-00-774-7219
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10552973 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-774-7219
Related Products | NSN 5365-00-774-7219
Technical Data | NSN 5365-00-774-7219
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

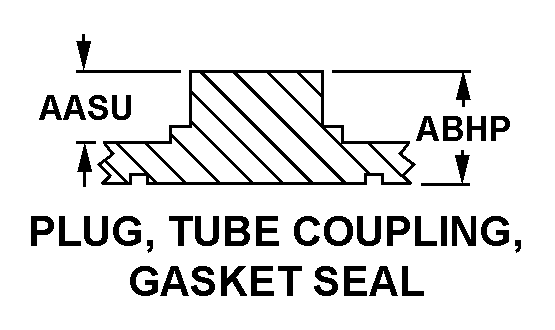

| STYLE DESIGNATOR | C51 PLUG, TUBE COUPLING, GASKET SEAL |
| HEAD HEIGHT | 0.160 INCHES MINIMUM AND 0.170 INCHES MAXIMUM |
| OVERALL LENGTH | 0.490 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNS EXTERNAL |
| NOMINAL THREAD SIZE | 1.188 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 32 EXTERNAL |
| THREAD PITCH DIAMETERS | 1.1660 TO 1.1700 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.320 INCHES MINIMUM AND 0.340 INCHES MAXIMUM EXTERNAL |
| BODY TYPE | CORED |
| BODY CORE DIAMETER | 0.609 INCHES MINIMUM AND 0.641 INCHES MAXIMUM |
| CORE DEPTH | 0.260 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| EXTERIOR COLOR | OLIVE DRAB OVERALL |
| SPECIAL FEATURES | TWELVE 0.062 IN. DIA HOLES SPACED 30 DEG APART ON DRIVE END PERIPHERY.HEAD CORE DIAMETER 0.953 IN. MIN,0.984 IN. MAX,CORE DEPTH 0.160 IN. MIN,0.170 IN. MAX. |
| (NON-CORE DATA) SAFETY WIRE HOLE QUANTITY | 12 |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 10552973 |
