NSN 5365-00-740-9027 D773642, D7736-4-2, 14291
Product Details | MACHINE THREAD PLUG
5365-00-740-9027 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: D773642, D7736-4-2, 14291, 2020650, 2297542, 858B1, 5365-00-740-9027, 00-740-9027, 5365007409027, 007409027
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-740-9027 | 03801 ( PLUG, MACHINE THREAD ) |

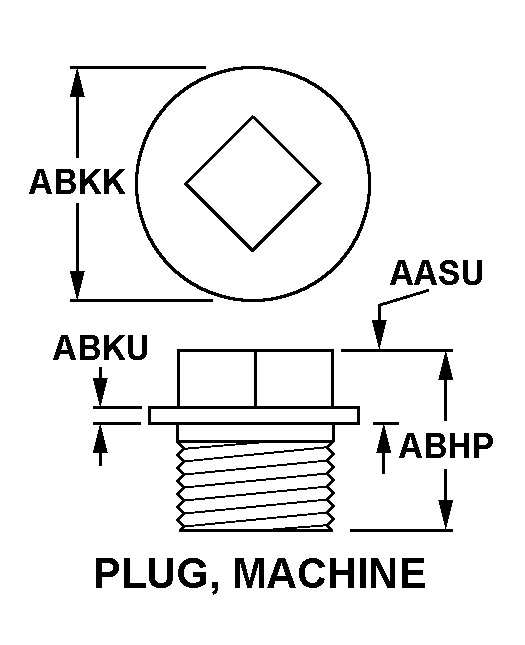

Drawings & Photos | NSN 5365-00-740-9027
Cross Reference | NSN 5365-00-740-9027
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14291 | 12472 | LOCKWOOD CORP |
| 2020650 | 61465 | GARWOOD/FELLER INC GARWOOD WINCH DIV |
| 2297542 | 23862 | MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP |
| 2297542 | 24617 | GENERAL MOTORS CORP |
| 2297542 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 858B1 | 56442 | DIAMOND REO TRUCK CO |
| D7736-4-2 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-740-9027
Technical Data | NSN 5365-00-740-9027
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | C28 PLUG, MACHINE |
| HEAD HEIGHT | 0.922 INCHES NOMINAL |
| OVERALL LENGTH | 1.550 INCHES NOMINAL |
| FLANGE DIAMETER | 1.812 INCHES NOMINAL |
| FLANGE THICKNESS | 0.380 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |
| NOMINAL THREAD SIZE | 1.375 INCHES EXTERNAL |
| THREAD CLASS | 2A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.500 INCHES NOMINAL EXTERNAL |
| BODY TYPE | CORED |
| BODY CORE DIAMETER | 0.375 INCHES NOMINAL |
| CORE DEPTH | 0.938 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5365-00-740-9027
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
