NSN 5365-00-726-4161 MS24391D2L, AS5169D02L, MILF5509

Product Details | MACHINE THREAD PLUG

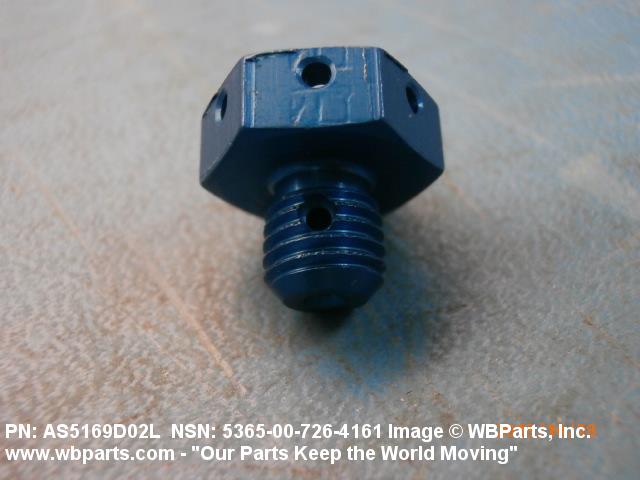

5365-00-726-4161 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.

Part Alternates: MS24391D2L, AS5169D02L, MILF5509, 580531, 5365-00-726-4161, 00-726-4161, 5365007264161, 007264161

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-726-4161	03801 ( PLUG, MACHINE THREAD )

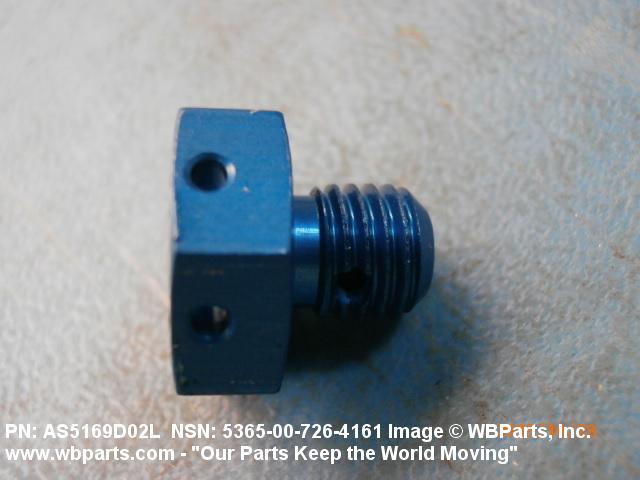

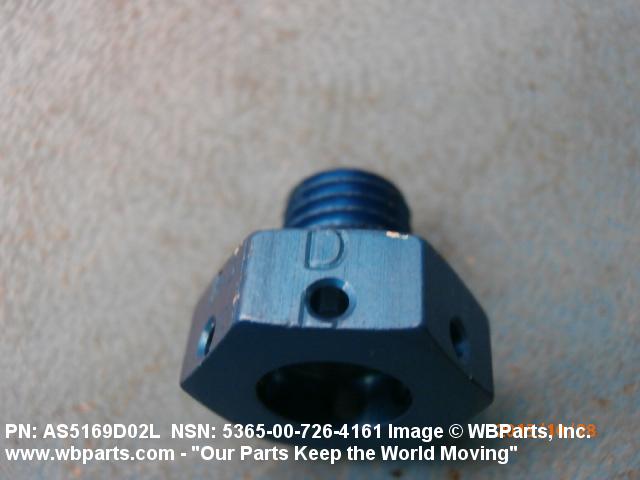

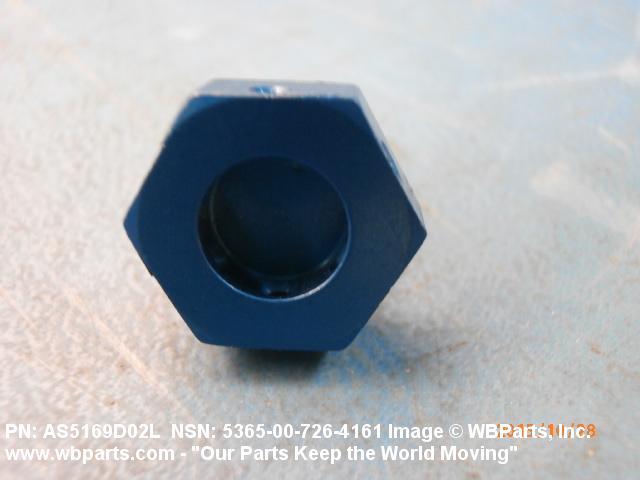

Drawings & Photos | NSN 5365-00-726-4161

Part Number	Request Date	QTY	Origin
5365-00-726-4161	2024-07-186	2050	TR
MILF5509	2018-07-201	6	United States
5365-00-726-4161	2017-09-253	353	DIBBS
5365-00-726-4161	2017-09-249	598	DIBBS
5365-00-726-4161	2017-08-220	957	DIBBS
5365-00-726-4161	2017-07-186	3318	DIBBS
5365-00-726-4161	2017-05-141	777	DIBBS
5365-00-726-4161	2017-04-94	1050	DIBBS
5365-00-726-4161	2017-03-65	1	DIBBS-RFPs
5365-00-726-4161	2017-02-45	1	DIBBS-RFPs
5365-00-726-4161	2017-02-43	1120	DIBBS
5365-00-726-4161	2016-12-357	385	DIBBS
5365-00-726-4161	2016-11-325	385	DIBBS
5365-00-726-4161	2016-11-313	754	DIBBS
5365-00-726-4161	2016-10-299	694	DIBBS
5365-00-726-4161	2016-08-234	768	DIBBS
AS5169D02L	2015-10-296	100	United States
5365-00-726-4161	2015-06-163	4508	DIBBS
5365-00-726-4161	2015-06-155	4508	DIBBS
AS5169D02L	2015-04-106	24	US
AS5169D02L	2015-04-104	24	US
5365-00-726-4161	2013-11-308	40	US
5365-00-726-4161	2013-10-301	1824	DIBBS
5365-00-726-4161	2013-10-293	1824	DIBBS
5365-00-726-4161	2010-08-225	354	DIBBS
5365-00-726-4161	2010-03-61	1912	DIBBS
5365-00-726-4161	2010-02-55	1912	DIBBS
MILF5509	2009-10-301	1	PK
5365-00-726-4161	2009-08-219	3864	DIBBS
MILF5509	2009-02-55	100	US
5365-00-726-4161	2009-02-42	40	us

Cross Reference | NSN 5365-00-726-4161

Part Number	Cage Code	Manufacturer
580531	62983	EATON AEROSPACE LLC
AS5169D02L	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MILF5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24391D2L	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5365-00-726-4161

Compare

Related Products | NSN 5365-00-726-4161

5365-00-726-4487, 5365-00-726-4703, 5365-00-726-4811, 5365-00-726-4836, 5365-00-726-4866

Technical Data | NSN 5365-00-726-4161

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL

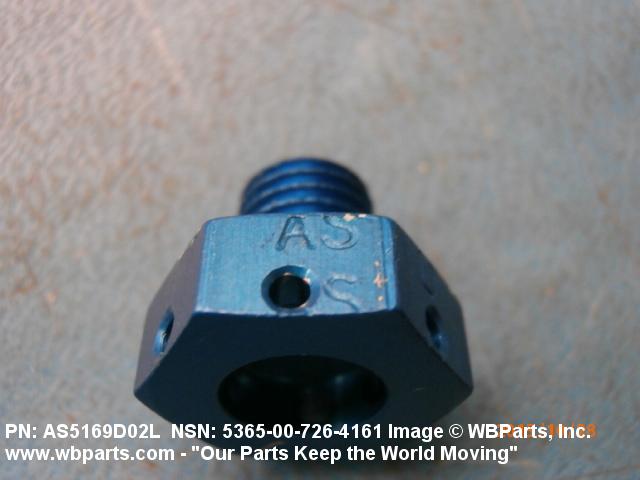

STYLE DESIGNATOR	C35A PLUG, MACHINE, W/BLEEDER HOLE

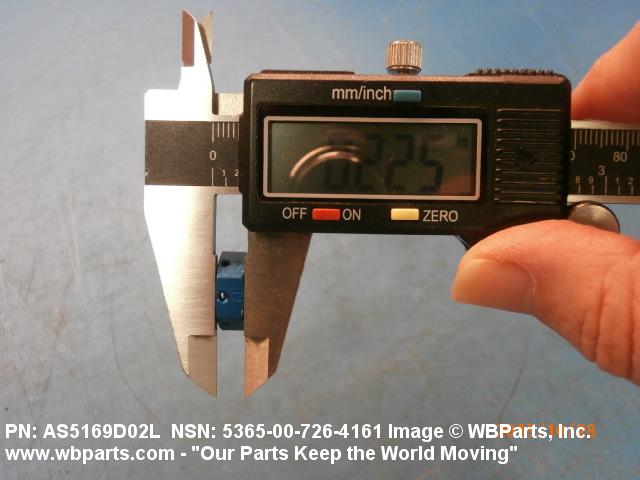

HEAD HEIGHT	0.250 INCHES NOMINAL

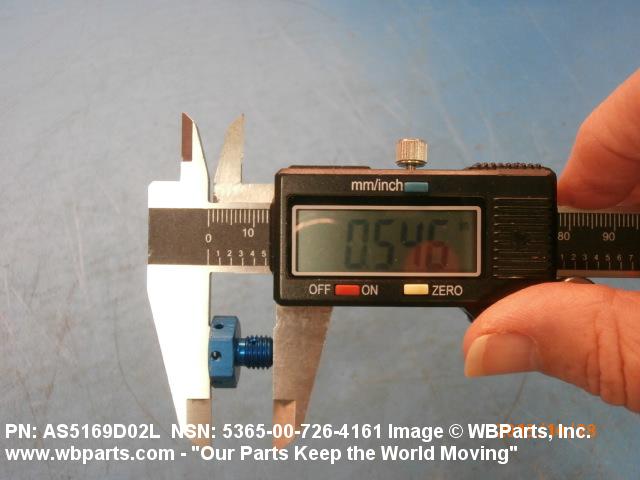

OVERALL LENGTH	0.594 INCHES NOMINAL

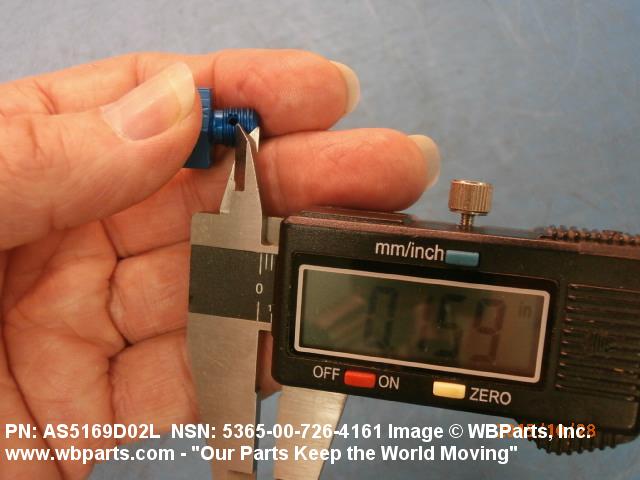

BLEEDER HOLE CENTER TO THREADED END DISTANCE	0.125 INCHES MINIMUM AND 0.188 INCHES MAXIMUM

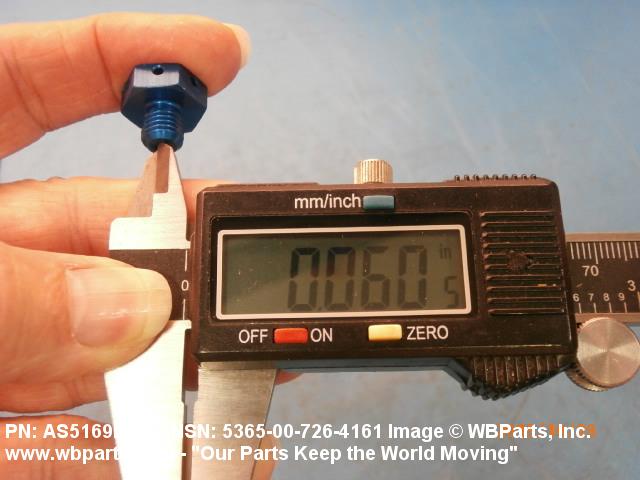

BLEEDER HOLE DIAMETER	0.063 INCHES NOMINAL
CONNECTION STYLE	J1 PLAIN
THREAD SERIES DESIGNATOR	UNF EXTERNAL

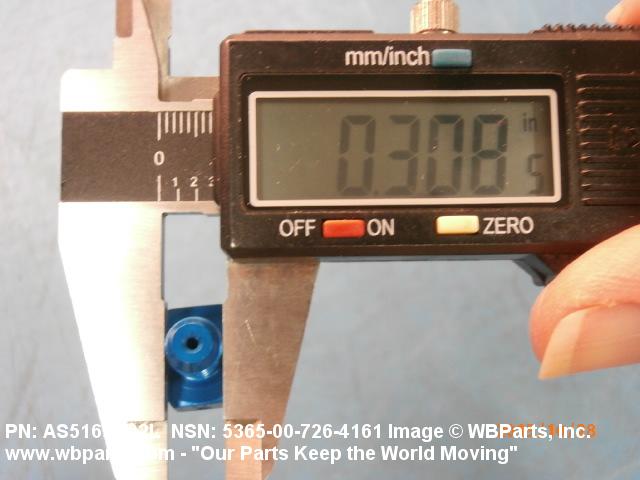

NOMINAL THREAD SIZE	0.312 INCHES EXTERNAL
THREAD CLASS	3A EXTERNAL
THREAD DIRECTION	RIGHT-HAND EXTERNAL

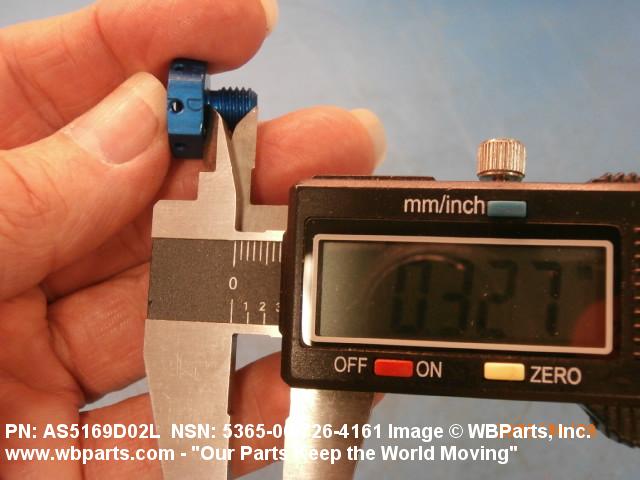

THREAD LENGTH	0.328 INCHES NOMINAL EXTERNAL
SEAT ANGLE	45.0 DEGREES
BODY CORE DIAMETER	0.062 INCHES NOMINAL
CORE DEPTH	0.250 INCHES MINIMUM AND 0.266 INCHES MAXIMUM

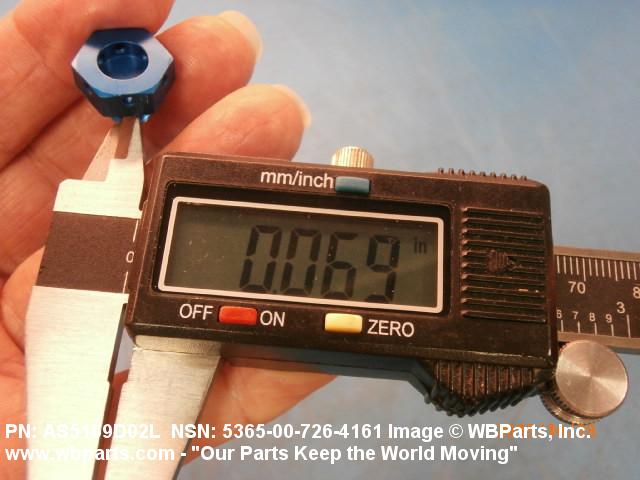

(NON-CORE DATA) SAFETY WIRE HOLE QUANTITY	6
