NSN 5365-00-684-2093 NAS43DD316, NAS43DD3-16, 8168041

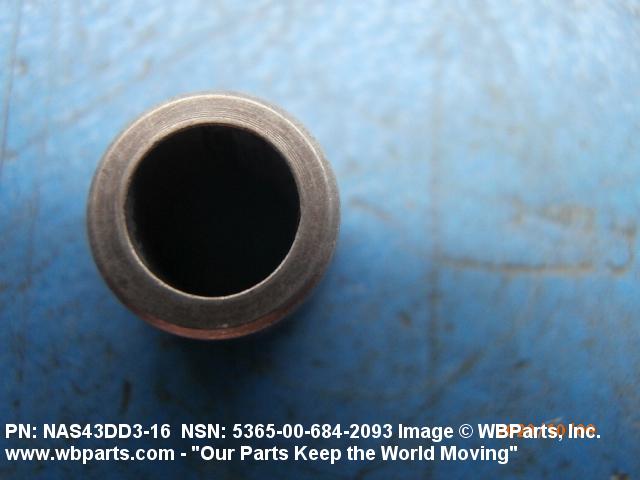

Product Details | SLEEVE SPACER
5365-00-684-2093 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: NAS43DD316, NAS43DD3-16, 8168041, 9476741016, 947674-1016, 10118607, 1243003102, 124-3003-102, 1819183208, 1819183-208, 4183200-49, 5365-00-684-2093, 00-684-2093, 5365006842093, 006842093, 418320049
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-684-2093 | 13207 ( SPACER, SLEEVE ) |

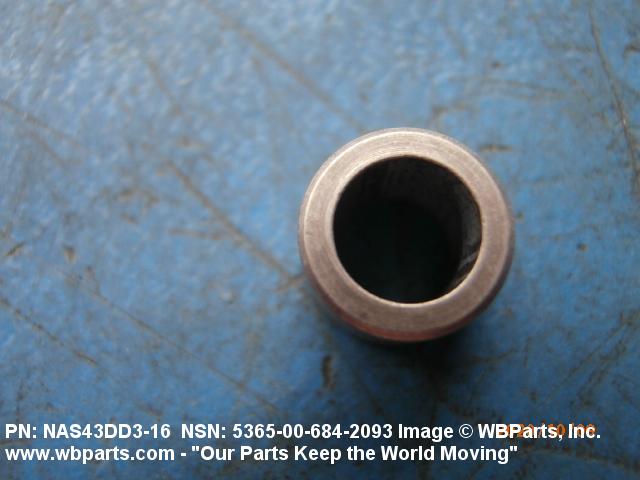

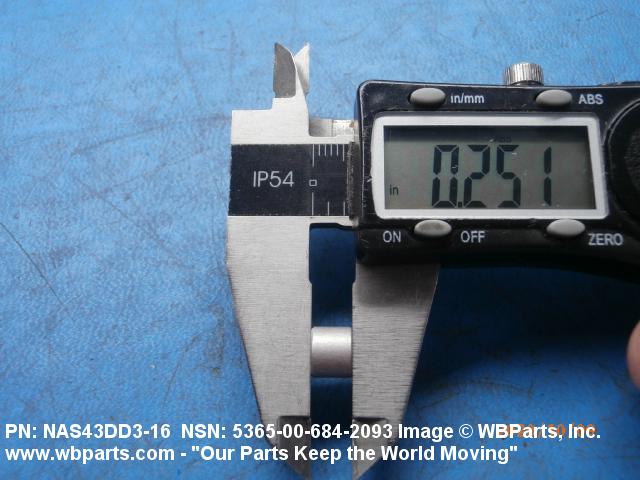

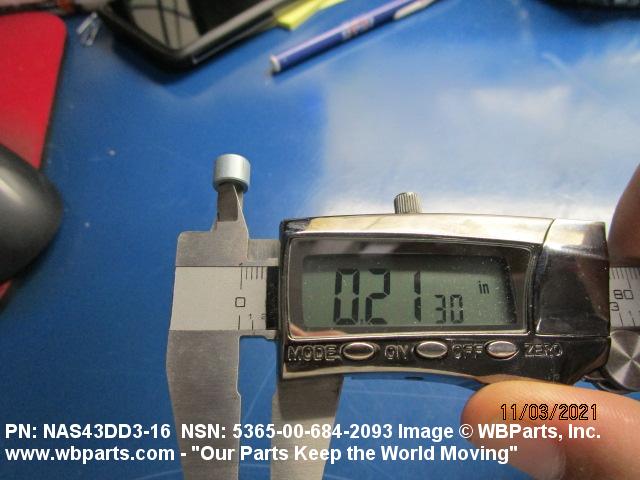

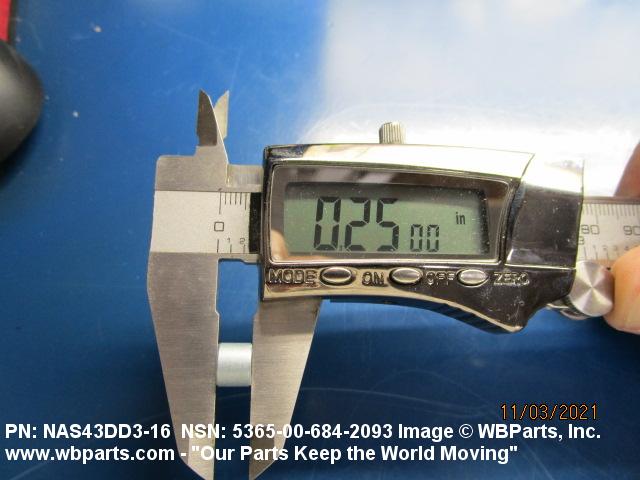

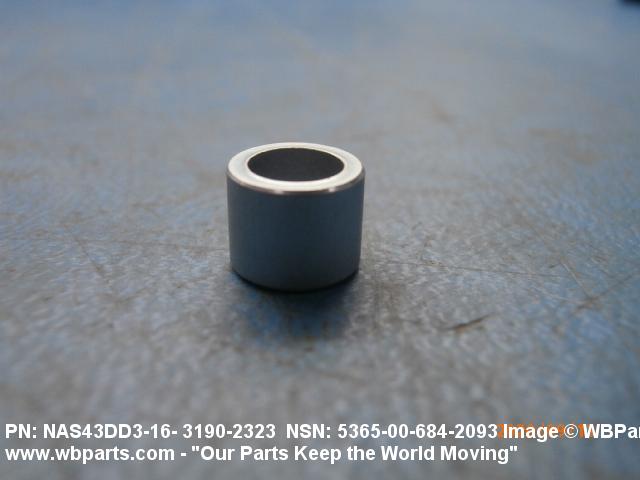

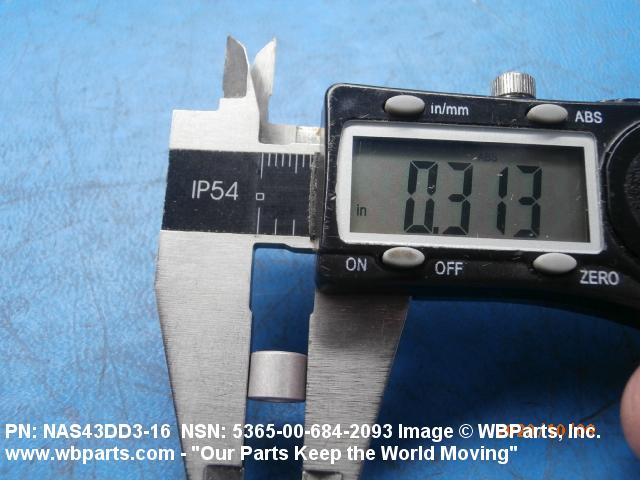

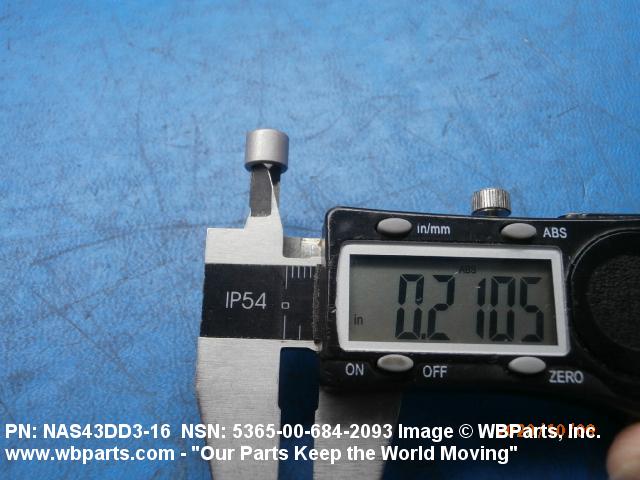

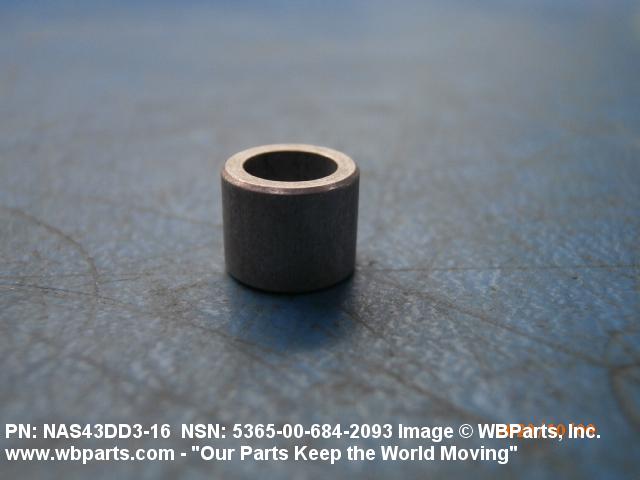

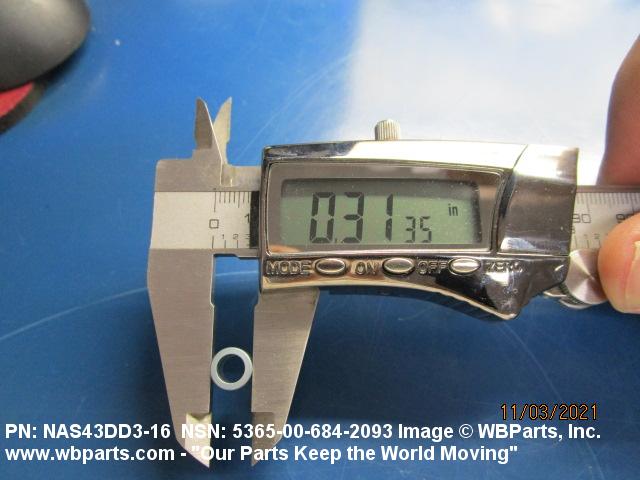

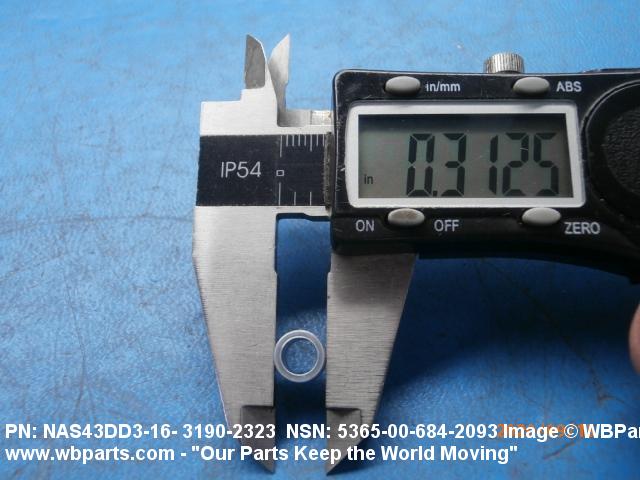

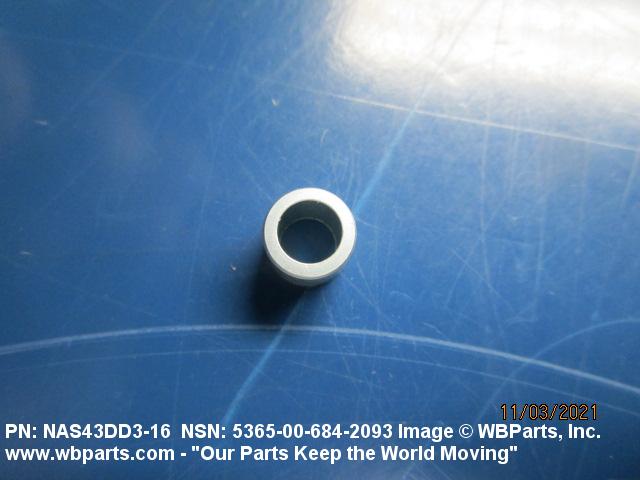

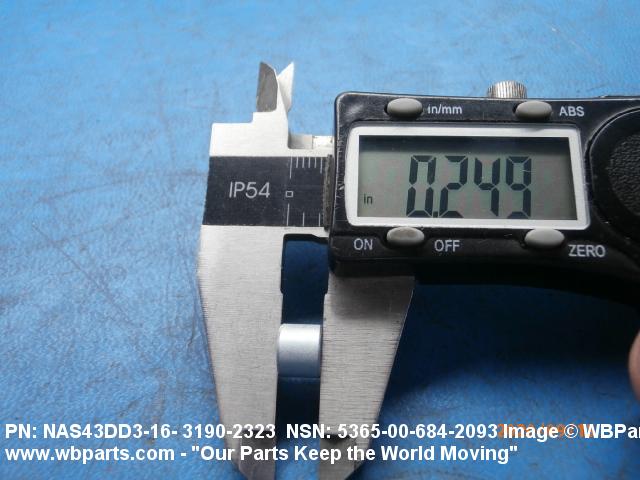

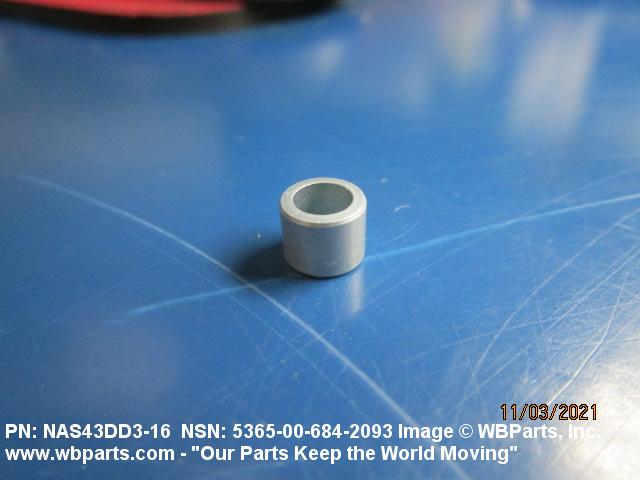

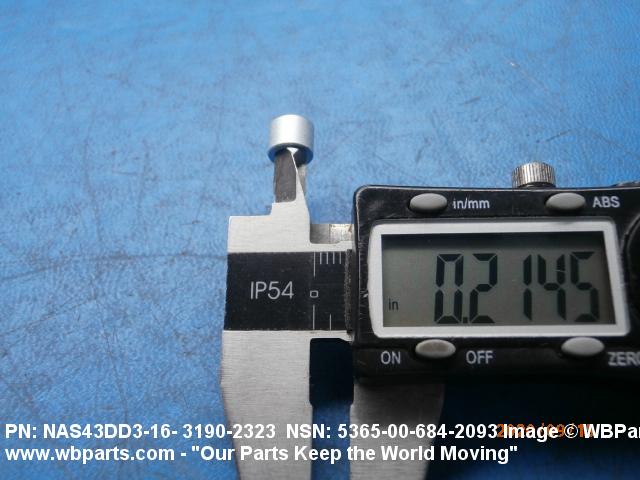

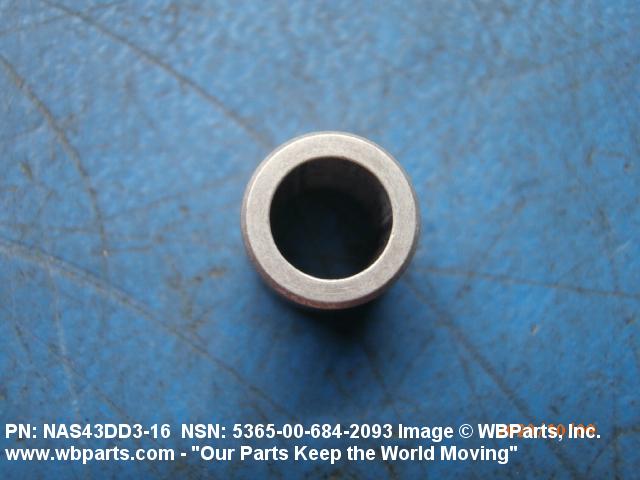

Drawings & Photos | NSN 5365-00-684-2093
Demand History | NSN 5365-00-684-2093
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-684-2093 | 2021-09-253 | 400 | Thailand |
| 5365-00-684-2093 | 2021-09-253 | 450 | Thailand |
| 5365-00-684-2093 | 2021-05-140 | 24 | United States |
| NAS43DD316 | 2020-09-253 | 10 | United States |
| NAS43DD316 | 2015-05-140 | 2 | UK |
| NAS43DD3-16 | 2013-07-207 | 8 | US |
| 5365-00-684-2093 | 2012-02-33 | 10 | United States |
| NAS43DD3-16 | 2011-04-95 | 32 | United States |
| NAS43DD316 | 2010-12-363 | 200 | United States |
| 5365-00-684-2093 | 2010-10-278 | 4 | us |
| 5365-00-684-2093 | 2008-06-157 | 300 | South Korea |
| 5365-00-684-2093 | 2008-04-103 | 25 | United States |
Cross Reference | NSN 5365-00-684-2093
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 124-3003-102 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 1819183-208 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 4183200-49 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4183200-49 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 8168041 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 947674-1016 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| NAS43DD3-16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
