NSN 5365-00-674-6831 MS5184026, MS51840-26, M19-20873 PC NO 343

Product Details | MACHINE THREAD PLUG

5365-00-674-6831 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.

Part Alternates: MS5184026, MS51840-26, M19-20873 PC NO 343, M1920873PCNO343, AB007024K6, MILF18866, MIL-F-18866, 70921573, 8P50NS, 8P5NS, 8P5N-S, 03954233, 039-54233, 0724K6, 07-24K6, 09215732, 100A160PC6, 16 700 061, 16700061, 186580, 2185156, 218-5156, 24K6, 2CV47, 35278555, 48835002, 488-35002, 5365-00-674-6831, 00-674-6831, 5365006746831, 006746831

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-674-6831	03801 ( PLUG, MACHINE THREAD )

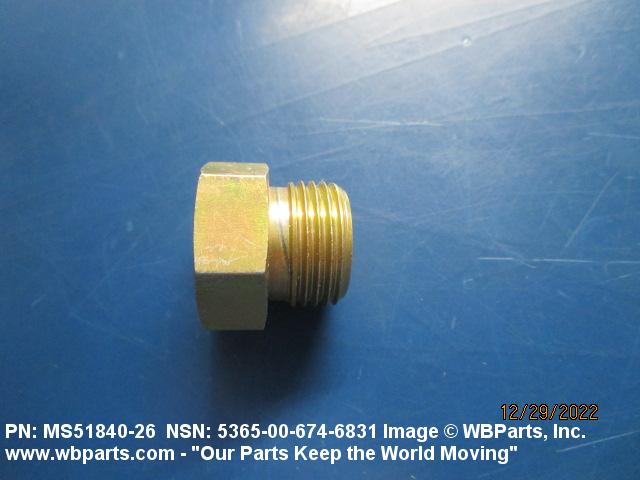

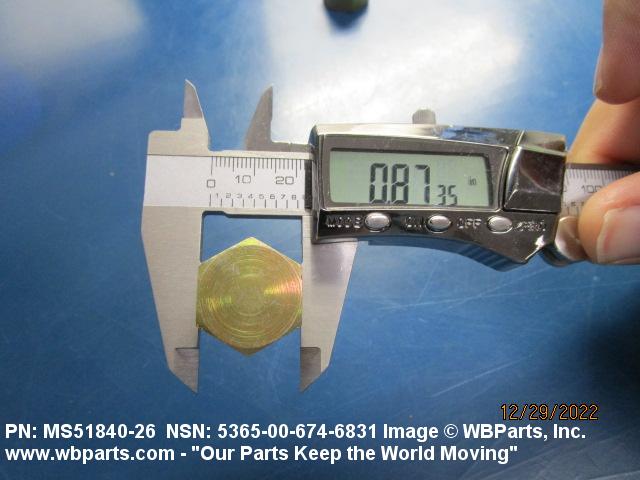

Drawings & Photos | NSN 5365-00-674-6831

Part Number	Request Date	QTY	Origin
5365-00-674-6831	2024-09-269	1745	DIBBS
5365-00-674-6831	2024-07-200	1056	DIBBS
5365-00-674-6831	2024-04-105	435	DIBBS
5365-00-674-6831	2023-12-352	228	DIBBS
03954233	2022-12-362	2	United States
5365-00-674-6831	2022-12-354	1	United States
5365-00-674-6831	2022-12-354	2	United States
5365-00-674-6831	2022-03-79	899	DIBBS
5365-00-674-6831	2021-10-280	443	DIBBS
5365-00-674-6831	2021-07-203	407	DIBBS
5365-00-674-6831	2021-04-109	500	US
5365-00-674-6831	2021-04-108	554	DIBBS
5365-00-674-6831	2016-02-34	1	DIBBS-RFPs
5365-00-674-6831	2015-11-334	1	DIBBS-RFPs
5365-00-674-6831	2014-08-218	1650	DIBBS
5365-00-674-6831	2013-09-268	1809	DIBBS
5365-00-674-6831	2012-03-88	741	DIBBS
5365-00-674-6831	2010-09-251	323	DIBBS
5365-00-674-6831	2009-11-316	1153	DIBBS
5365-00-674-6831	2008-11-322	669	DIBBS
5365-00-674-6831	2008-10-302	240	DIBBS

Cross Reference | NSN 5365-00-674-6831

Part Number	Cage Code	Manufacturer
039-54233	9F512	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION
07-24K6	16662	LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE
09215732	89926	NEW HOLLAND CONSTRUCTION
100A160PC6	01289	GENERAL ELECTRIC COMPANY DBA GE DIV GE-AVIATION GEAR PLANT
16 700 061	82796	COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE
186580	62983	EATON AEROSPACE LLC
218-5156	10988	CNH INDUSTRIAL AMERICA LLC
24K6	076M6	BAE SYSTEMS LAND & ARMAMENTS L.P.
24K6	12603	CLARK EQUIPMENT CO
24K6	77237	DANA OFF HIGHWAY PRODUCTS, LLC
2CV47	45152	OSHKOSH CORPORATION
35278555	33968	CLARK EQUIPMENT COMPANY DBA DOOSAN INFRACORE PORTABLE POWER
488-35002	9F512	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION
488-35002	F2133	DENISON HYDRAULICS FRANCE SAS
488-35002	FAQB2	PARKER HANNIFIN FRANCE SAS
70921573	89926	NEW HOLLAND CONSTRUCTION
8P5N-S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
AB007024K6	3NNX8	BRIGHTON CROMWELL LLC
AB007024K6	52993	AR BEE CORP
M19-20873 PC NO 343	9F512	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION
MIL-F-18866	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51840-26	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5365-00-674-6831

Compare

Related Products | NSN 5365-00-674-6831

5365-00-674-6871, 5365-00-674-7017, 5365-00-674-7099, 5365-00-674-7738, 5365-00-674-7806

Technical Data | NSN 5365-00-674-6831

Characteristic	Specifications
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	FED STD 66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	C9 PLUG, MACHINE

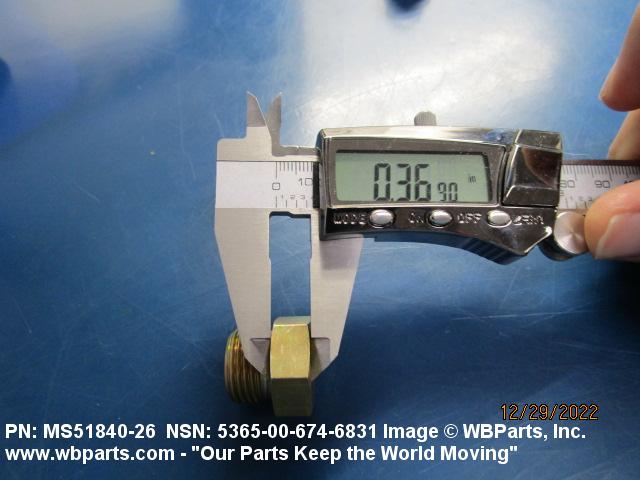

HEAD HEIGHT	0.362 INCHES NOMINAL

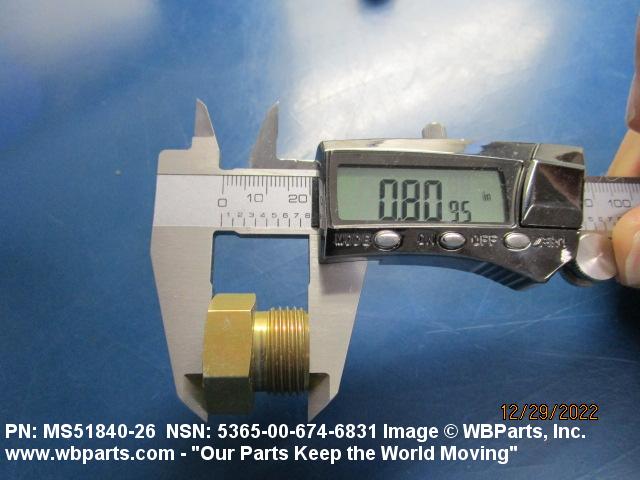

OVERALL LENGTH	0.800 INCHES NOMINAL
CONNECTION STYLE	J1 PLAIN
THREAD SERIES DESIGNATOR	UNF EXTERNAL
NOMINAL THREAD SIZE	0.750 INCHES EXTERNAL
THREAD CLASS	2A EXTERNAL
THREAD DIRECTION	RIGHT-HAND EXTERNAL
THREAD LENGTH	0.312 INCHES NOMINAL EXTERNAL
HEAD TYPE	SOLID
BODY TYPE	CORED
BODY CORE DIAMETER	0.500 INCHES NOMINAL

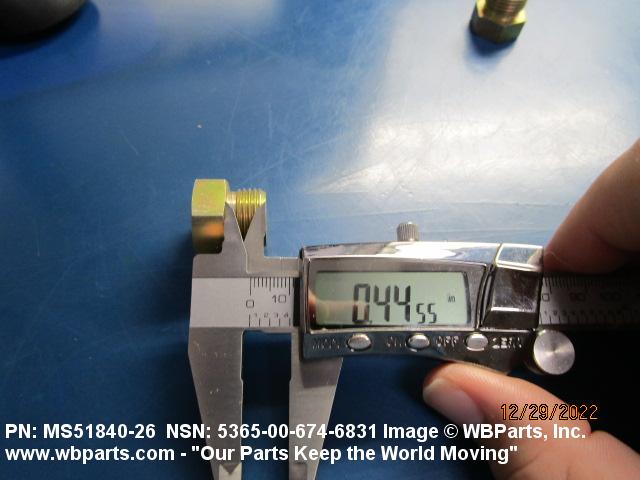

CORE DEPTH	0.438 INCHES NOMINAL
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51840-26

Restrictions/Controls & Freight Information | NSN 5365-00-674-6831

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5365-00-674-6831

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
