NSN 5365-00-662-3100 NAS43DD364, NAS43DD3-64, BACS18AE364
Product Details | SLEEVE SPACER
5365-00-662-3100 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: NAS43DD364, NAS43DD3-64, BACS18AE364, BACS18AE3-64, 10118601 , 1243003101, 124-3003-101, 5365-00-662-3100, 00-662-3100, 5365006623100, 006623100
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-662-3100 | 13207 ( SPACER, SLEEVE ) |

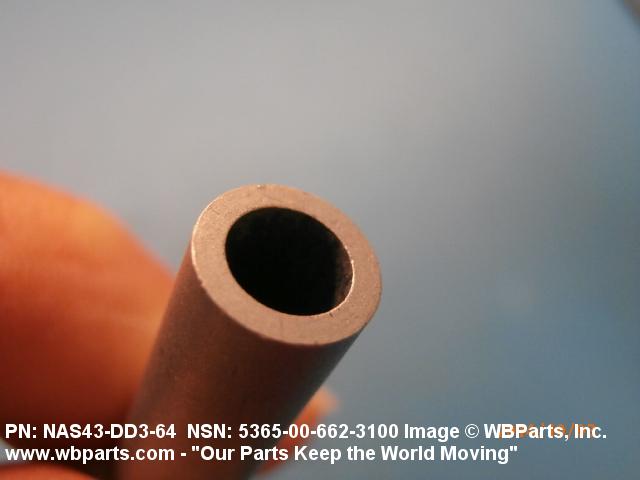

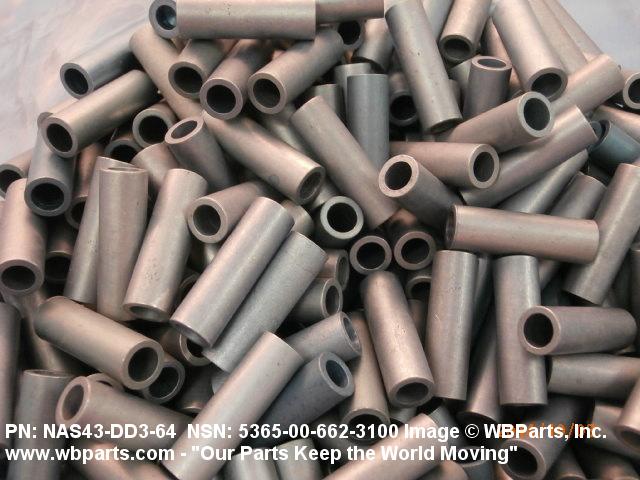

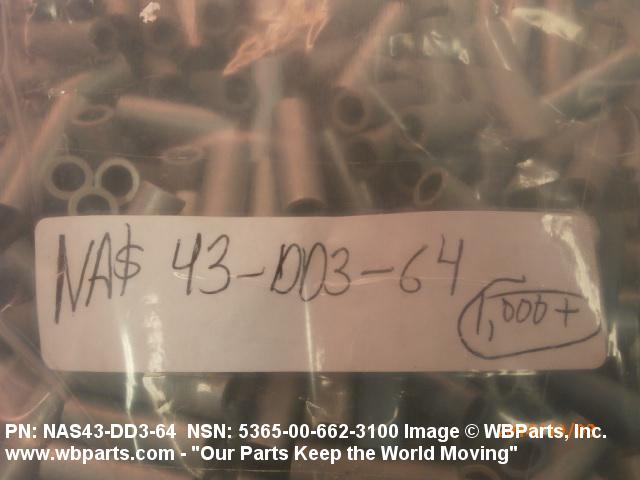

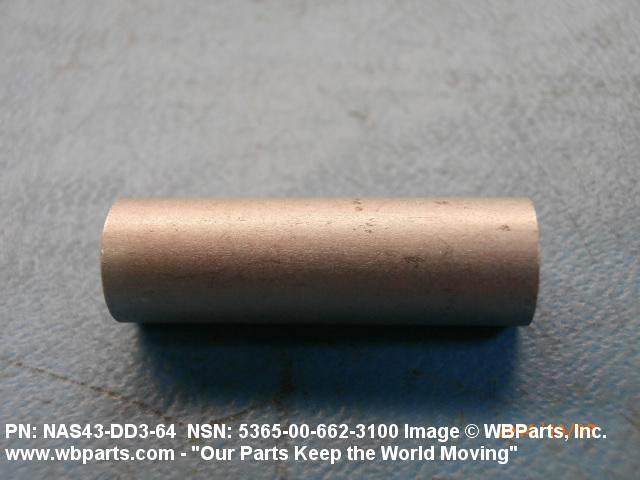

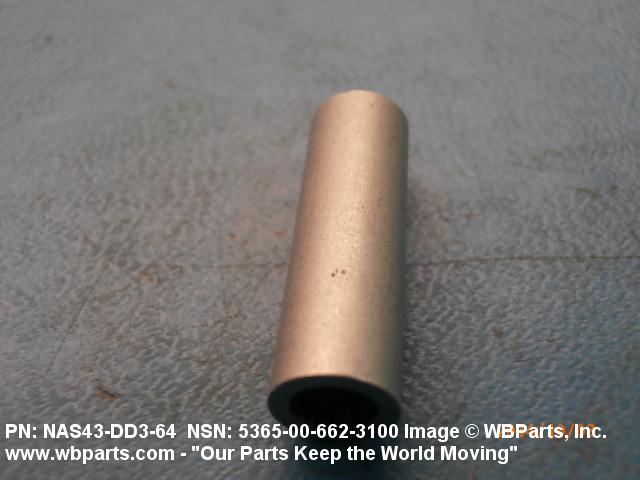

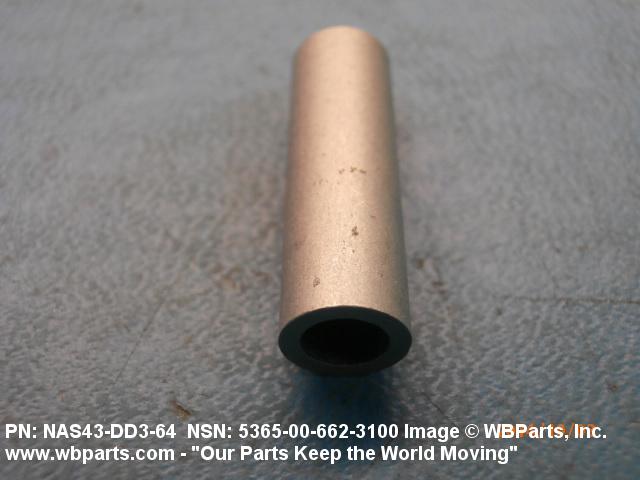

Drawings & Photos | NSN 5365-00-662-3100
Demand History | NSN 5365-00-662-3100
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS43DD364 | 2021-07-182 | 1 | FR |
| NAS43DD364 | 2020-12-344 | 1 | United States |
| NAS43DD364 | 2020-12-344 | 1 | United States |
| 5365-00-662-3100 | 2015-06-156 | 500 | United States |
| 5365-00-662-3100 | 2014-09-260 | 1000 | Canada |
| 5365-00-662-3100 | 2014-09-260 | 1000 | Canada |
| NAS43DD3-64 | 2012-11-310 | 67 | |
| NAS43DD3-64 | 2012-08-229 | 100 | |
| 5365-00-662-3100 | 2009-10-303 | 21 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-662-3100
Technical Data | NSN 5365-00-662-3100
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

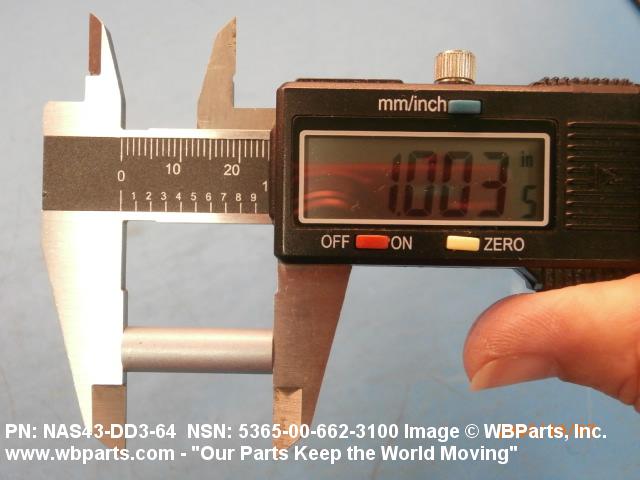

| OVERALL LENGTH | 0.9950 INCHES MINIMUM AND 1.0050 INCHES MAXIMUM |

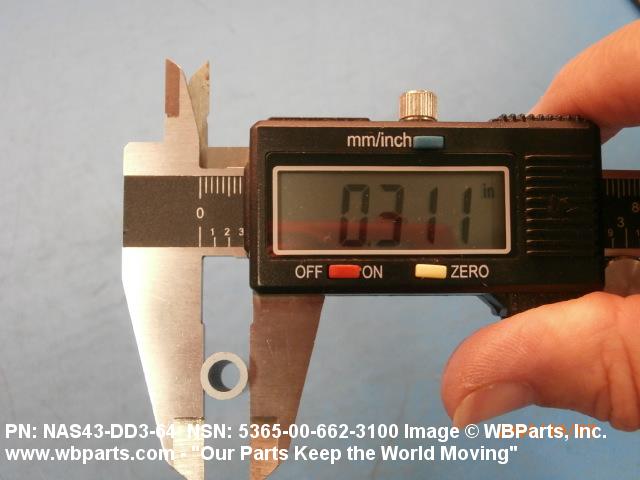

| BODY OUTSIDE DIAMETER | 0.3020 INCHES MINIMUM AND 0.3220 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.1940 INCHES MINIMUM AND 0.2340 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
Restrictions/Controls & Freight Information | NSN 5365-00-662-3100
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-662-3100
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
