NSN 5365-00-551-4077 4025T25P02, 00-551-4077, 005514077
Product Details | SLEEVE SPACER
5365-00-551-4077 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: 4025T25P02, 5365-00-551-4077, 00-551-4077, 5365005514077, 005514077
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 OCT 1974 | 00-551-4077 | 13207 ( SPACER, SLEEVE ) |

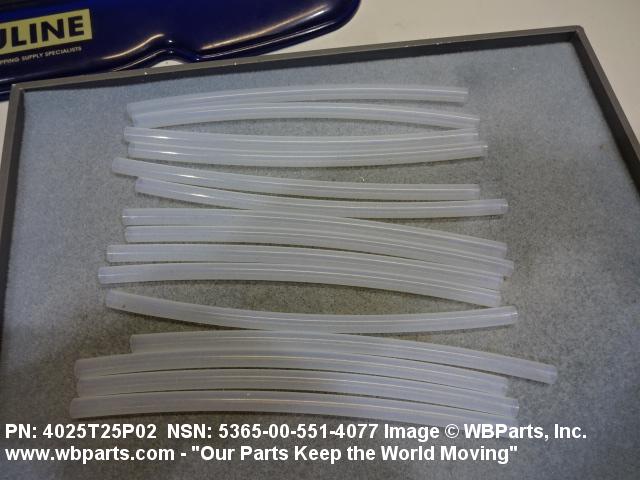

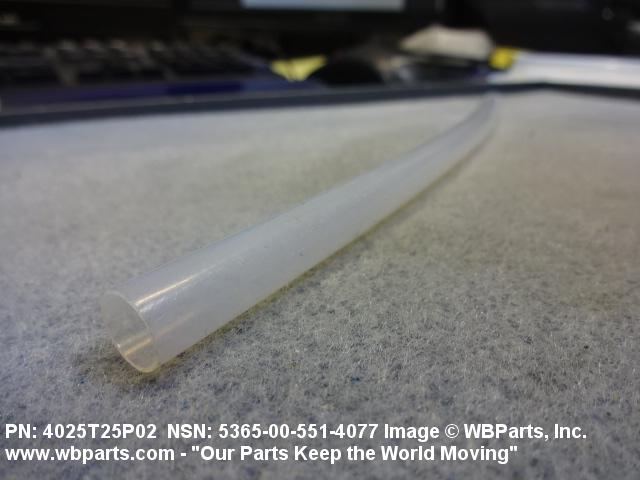

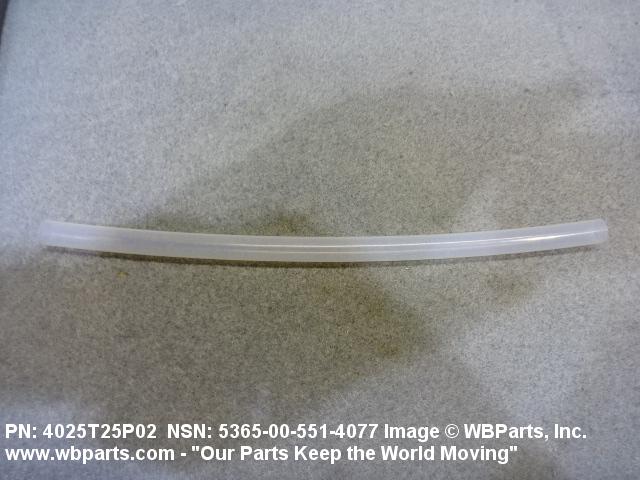

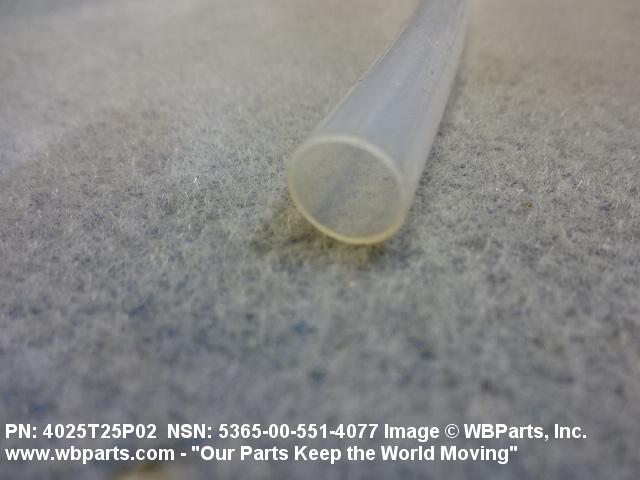

Drawings & Photos | NSN 5365-00-551-4077
Demand History | NSN 5365-00-551-4077
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4025T25P02 | 2020-11-309 | 1 | DE |
| 5365-00-551-4077 | 2018-09-267 | 15 | United States |
| 5365-00-551-4077 | 2018-09-266 | 101 | DIBBS |
| 5365-00-551-4077 | 2018-08-231 | 116 | DIBBS |
| 5365-00-551-4077 | 2018-08-230 | 116 | DIBBS |
| 5365-00-551-4077 | 2017-10-300 | 94 | DIBBS |
| 5365-00-551-4077 | 2017-09-249 | 94 | DIBBS |
| 5365-00-551-4077 | 2015-12-341 | 76 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-551-4077
Technical Data | NSN 5365-00-551-4077
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

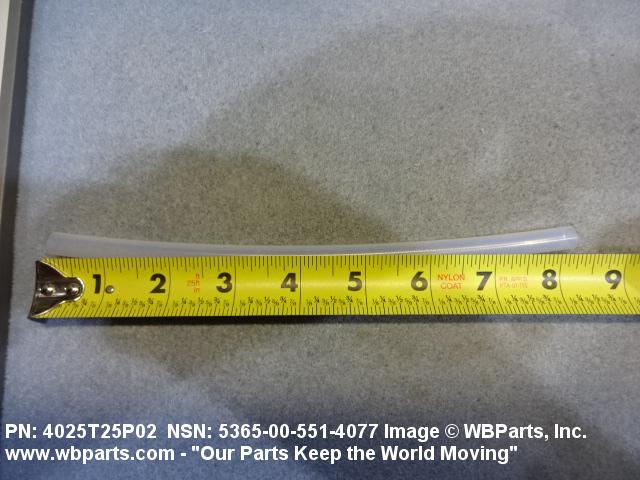

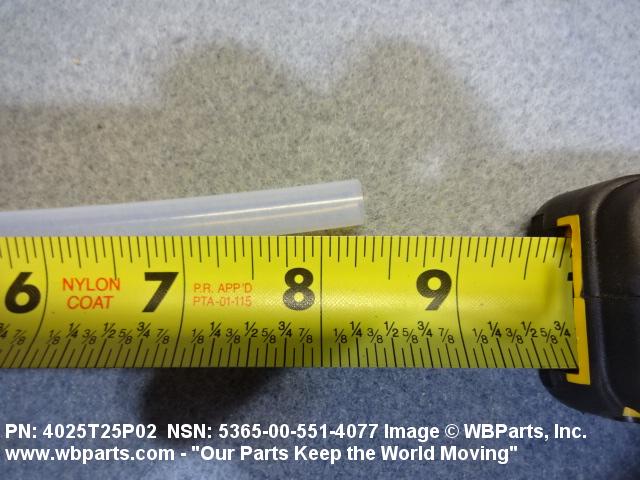

| OVERALL LENGTH | 8.2500 INCHES MINIMUM AND 8.5000 INCHES MAXIMUM |

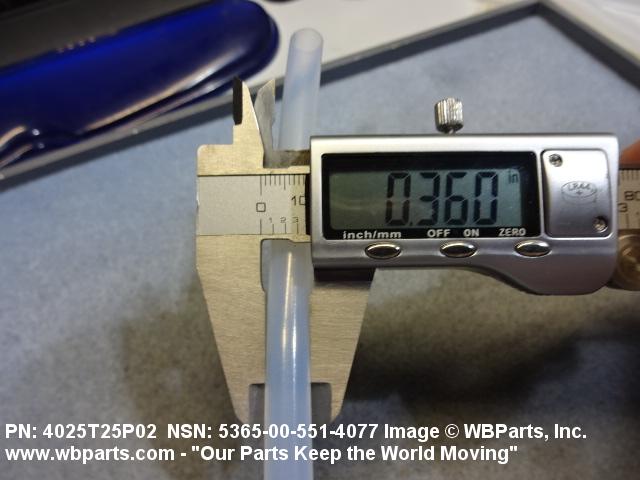

| BODY OUTSIDE DIAMETER | 0.3450 INCHES MINIMUM AND 0.3720 INCHES MAXIMUM |

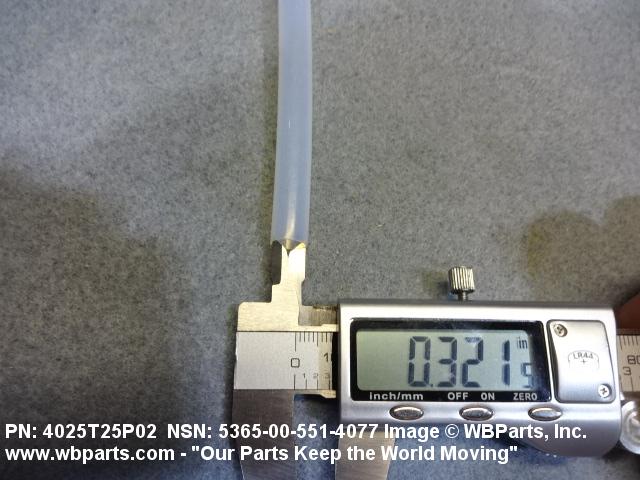

| BODY INSIDE DIAMETER | 0.3130 INCHES MINIMUM AND 0.3240 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| MANUFACTURERS CODE | 99207 |
| MFR SOURCE CONTROLLING REFERENCE | 4025T25P02 |
Restrictions/Controls & Freight Information | NSN 5365-00-551-4077
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106940 | SPACERS/SEPARATORS I/S NOI TUBULAR |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-551-4077
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
