NSN 5365-00-377-7126 C578721, C5787-21, 00-377-7126
Product Details | MACHINE THREAD PLUG
5365-00-377-7126 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: C578721, C5787-21, 5365-00-377-7126, 00-377-7126, 5365003777126, 003777126
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 1974 | 00-377-7126 | 03801 ( PLUG, MACHINE THREAD ) |
Drawings & Photos | NSN 5365-00-377-7126
Demand History | NSN 5365-00-377-7126
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| C5787-21 | 2024-03-73 | 8 | DIBBS |
| C5787-21 | 2024-03-65 | 8 | DIBBS |
| C5787-21 | 2024-01-02 | 1 | DIBBS |
| 5365-00-377-7126 | 2014-07-188 | 8 | DIBBS |
| 5365-00-377-7126 | 2014-06-177 | 8 | DIBBS |
| 5365-00-377-7126 | 2014-05-121 | 8 | DIBBS |
| 5365-00-377-7126 | 2014-03-83 | 2 | DIBBS |
| 5365-00-377-7126 | 2014-03-75 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-377-7126
Related Products | NSN 5365-00-377-7126
Technical Data | NSN 5365-00-377-7126
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |

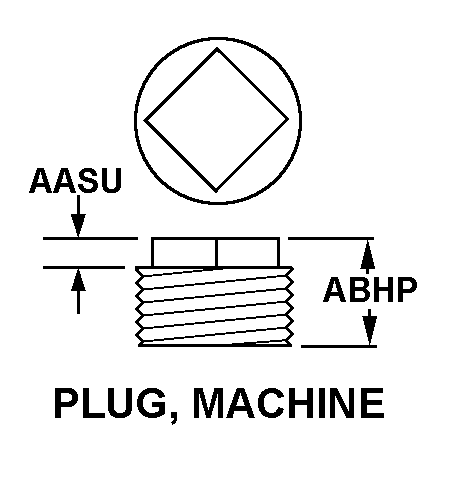

| STYLE DESIGNATOR | C18 PLUG, MACHINE |
| OVERALL LENGTH | 0.680 INCHES NOMINAL |
| SPECIAL FEATURES | USED ON SERVOVALVE P/N 5C5787-3; T.O.9H8-30-129-3 FIGURE 3-1 INDEX 21 |
| III END ITEM IDENTIFICATION | C-130E AIRCRAFT |
| III FSC APPLICATION DATA | AIRCRAFT HYDRAULIC,VACUUM,DEICING SYSTEMS |
| MANUFACTURERS CODE | 70236 |
| DESIGN CONTROL REFERENCE | C5787-21 |
Restrictions/Controls & Freight Information | NSN 5365-00-377-7126
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-377-7126
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | HS | SX:AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
