NSN 5365-00-317-3557 560415, 00-317-3557, 003173557
Product Details | MACHINE THREAD PLUG
5365-00-317-3557 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 560415, 5365-00-317-3557, 00-317-3557, 5365003173557, 003173557
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-317-3557 | 03801 ( PLUG, MACHINE THREAD ) |

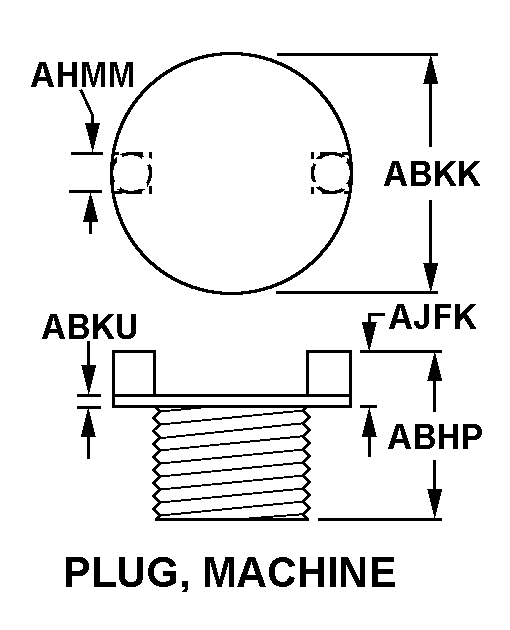

Drawings & Photos | NSN 5365-00-317-3557
Cross Reference | NSN 5365-00-317-3557
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 560415 | 03104 | TELEDYNE TECHNOLOGIES INC DBA TELEDYNE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-317-3557
Related Products | NSN 5365-00-317-3557
Technical Data | NSN 5365-00-317-3557
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1035 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5080 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C48 PLUG, MACHINE |
| OVERALL LENGTH | 0.290 INCHES MINIMUM AND 0.294 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.368 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.020 INCHES NOMINAL |
| LUG WIDTH | 0.080 INCHES NOMINAL |
| LUG HEIGHT | 0.140 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |
| NOMINAL THREAD SIZE | 0.375 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 24 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.140 INCHES MINIMUM AND 0.150 INCHES MAXIMUM EXTERNAL |
| MANUFACTURERS CODE | 03104 |
| DESIGN CONTROL REFERENCE | 560415 |
Restrictions/Controls & Freight Information | NSN 5365-00-317-3557
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-317-3557
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
