Product Details | MAGNETIC MACHINE THREAD PLUG
5365-00-253-9496 A threaded machine thread plug with integral magnet in the body usually used in lubricating or hydraulic systems.
Part Alternates: 177384, 5725179004, 572-517-9004, 9120621, 912062-1, 9120622, 912062-2, A782, 5365-00-253-9496, 00-253-9496, 5365002539496, 002539496
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUL 1969 | 00-253-9496 | 22339 ( PLUG, MACHINE THREAD, MAGNETIC ) |

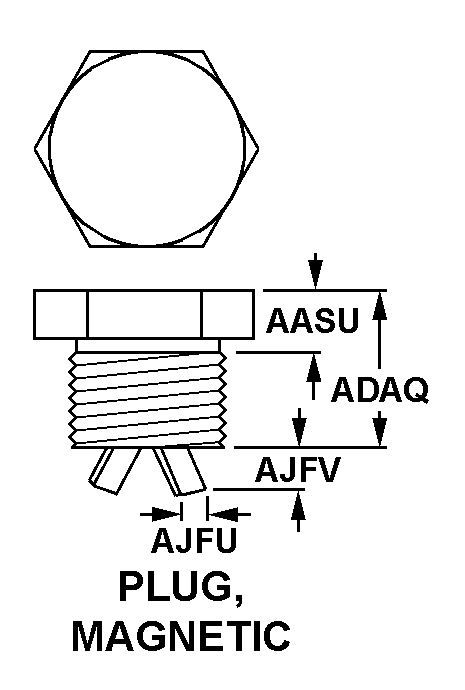

Drawings & Photos | NSN 5365-00-253-9496
