Product Details | MAGNETIC MACHINE THREAD PLUG
5365-00-203-7720 A threaded machine thread plug with integral magnet in the body usually used in lubricating or hydraulic systems.
Part Alternates: 2091D4, 5733, 651QJ2, 6544051, 8984999, 5365-00-203-7720, 00-203-7720, 5365002037720, 002037720
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-203-7720 | 22339 ( PLUG, MACHINE THREAD, MAGNETIC ) |

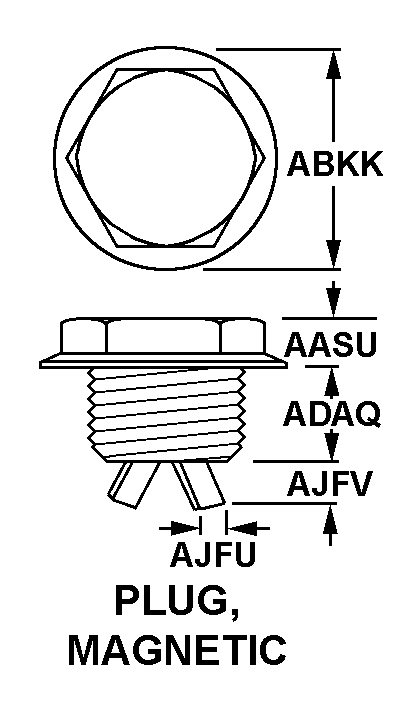

Drawings & Photos | NSN 5365-00-203-7720
Demand History | NSN 5365-00-203-7720
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2091D4 | 2021-10-299 | 1 | DIBBS |
| 6544051 | 2021-10-299 | 1 | DIBBS |
| 8984999 | 2021-10-299 | 1 | DIBBS |
| 2091D4 | 2021-08-229 | 1 | DIBBS |
| 6544051 | 2021-08-229 | 1 | DIBBS |
| 8984999 | 2021-08-229 | 1 | DIBBS |
Cross Reference | NSN 5365-00-203-7720
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-203-7720
Related Products | NSN 5365-00-203-7720
Technical Data | NSN 5365-00-203-7720
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | E4 PLUG, MAGNETIC |
| HEAD HEIGHT | 0.400 INCHES NOMINAL |
| FLANGE DIAMETER | 1.312 INCHES NOMINAL |
| BODY LENGTH | 0.375 INCHES NOMINAL |
| MAGNET WIDTH | 0.495 INCHES NOMINAL |
| MAGNET PROJECTION LENGTH | 0.180 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNS EXTERNAL |
| NOMINAL THREAD SIZE | 1.000 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 18 EXTERNAL |
| THREAD PITCH DIAMETERS | 0.9609 TO 0.9639 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.400 INCHES NOMINAL EXTERNAL |
| MANUFACTURERS CODE | 24617 |
| DESIGN CONTROL REFERENCE | 8984999 |
