Product Details | MACHINE THREAD PLUG

5365-00-203-4386 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.

Part Alternates: A43071, 43071, 5365-00-203-4386, 00-203-4386, 5365002034386, 002034386

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-203-4386

Drawings & Photos | NSN 5365-00-203-4386


Demand History | NSN 5365-00-203-4386

Part Number Request Date QTY Origin
43071 2012-10-283 10 Canada

Cross Reference | NSN 5365-00-203-4386

Part Number Cage Code Manufacturer
43071 00198 PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP.
A43071 00198 PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5365-00-203-4386

Technical Data | NSN 5365-00-203-4386

Characteristic Specifications
MATERIAL STEEL OVERALL

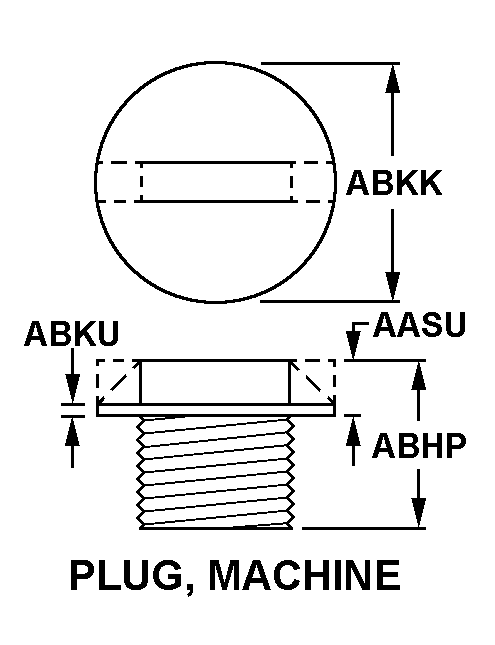

STYLE DESIGNATOR C46 PLUG, MACHINE
HEAD HEIGHT 0.344 INCHES NOMINAL
OVERALL LENGTH 0.750 INCHES NOMINAL
FLANGE DIAMETER 1.219 INCHES NOMINAL
FLANGE THICKNESS 0.094 INCHES NOMINAL
CONNECTION STYLE J1 PLAIN
THREAD SERIES DESIGNATOR UNF EXTERNAL
NOMINAL THREAD SIZE 0.625 INCHES EXTERNAL
THREAD CLASS 3A EXTERNAL
THREAD DIRECTION RIGHT-HAND EXTERNAL
THREAD LENGTH 0.406 INCHES NOMINAL EXTERNAL
BODY CORE DIAMETER 0.406 INCHES NOMINAL
CORE DEPTH 0.281 INCHES NOMINAL
SPECIAL FEATURES WITH 4 NOTCHES IN FLANGE SPACED 90 DEGREES APART
MANUFACTURERS CODE 00198
DESIGN CONTROL REFERENCE A43071
