NSN 5365-00-203-3963 441447PC3, 00-203-3963, 002033963
Product Details | MACHINE THREAD PLUG
5365-00-203-3963 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 441447PC3, 5365-00-203-3963, 00-203-3963, 5365002033963, 002033963
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-203-3963 | 03801 ( PLUG, MACHINE THREAD ) |

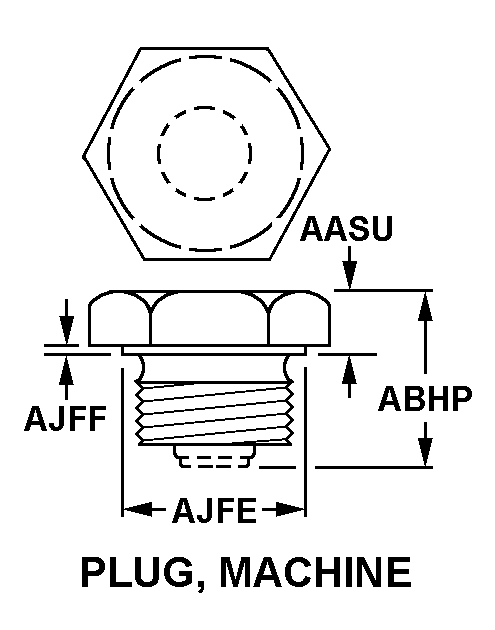

Drawings & Photos | NSN 5365-00-203-3963
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-203-3963
Technical Data | NSN 5365-00-203-3963
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-633,CANCELED FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C25 PLUG, MACHINE |
| HEAD HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| WASHER FACE DIAMETER | 1.180 INCHES NOMINAL |
| WASHER FACE THICKNESS | 0.125 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |
| NOMINAL THREAD SIZE | 0.875 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.187 INCHES NOMINAL EXTERNAL |
Restrictions/Controls & Freight Information | NSN 5365-00-203-3963
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093750 | BUNGS/PLUGS NOI IN PKGS |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-203-3963
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
