NSN 5365-00-126-6223 8756495, 00-126-6223, 001266223
Product Details | SLEEVE SPACER
5365-00-126-6223 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Part Alternates: 8756495, 5365-00-126-6223, 00-126-6223, 5365001266223, 001266223
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 DEC 1967 | 00-126-6223 | 13207 ( SPACER, SLEEVE ) |

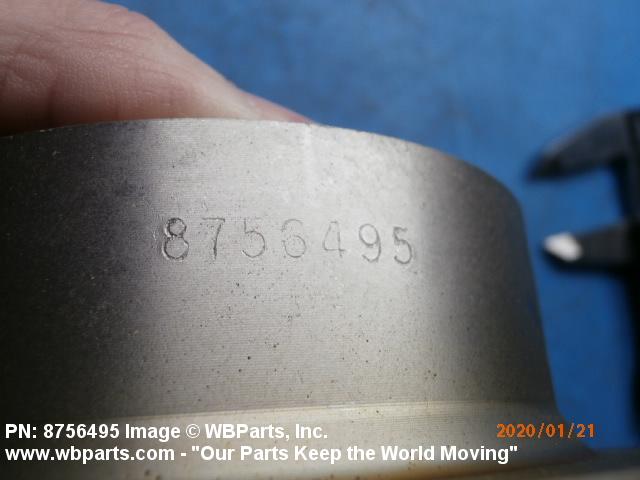

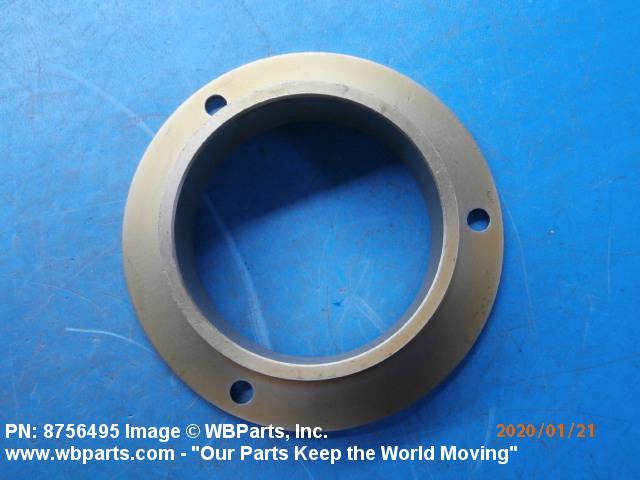

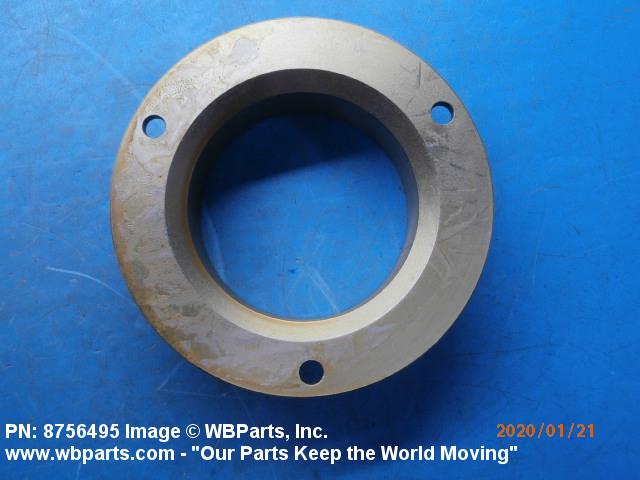

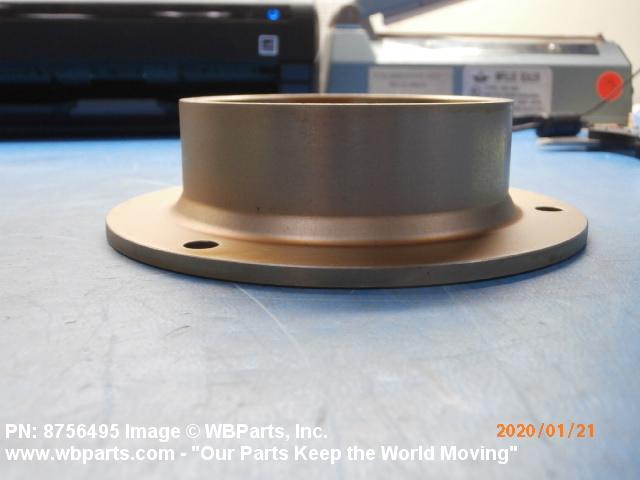

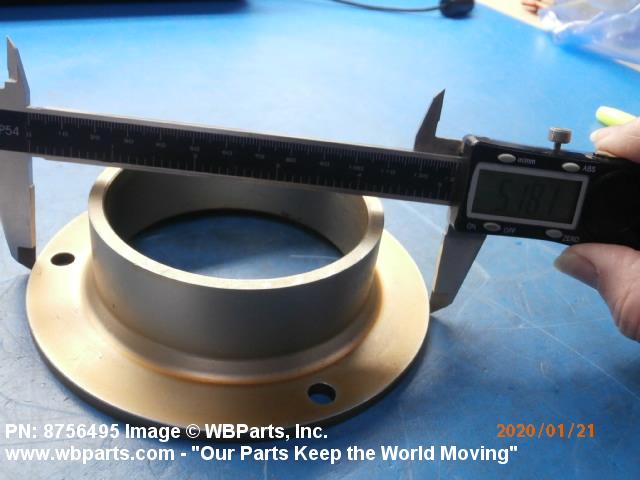

Drawings & Photos | NSN 5365-00-126-6223
Demand History | NSN 5365-00-126-6223
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-126-6223 | 2024-04-106 | 666 | DIBBS |
| 5365-00-126-6223 | 2024-04-99 | 670 | US |
| 5365-00-126-6223 | 2024-04-98 | 666 | DIBBS |
| 5365-00-126-6223 | 2024-03-88 | 670 | US |
| 5365-00-126-6223 | 2024-03-88 | 666 | DIBBS |
| 5365-00-126-6223 | 2024-02-60 | 481 | DIBBS |
| 5365-00-126-6223 | 2024-02-52 | 481 | DIBBS |
| 5365-00-126-6223 | 2024-02-37 | 5 | UK |
| 5365-00-126-6223 | 2024-02-36 | 1 | DIBBS |
| 5365-00-126-6223 | 2024-01-31 | 39 | DIBBS |
| 5365-00-126-6223 | 2024-01-30 | 344 | DIBBS |
| 5365-00-126-6223 | 2024-01-28 | 1 | DIBBS |
| 5365-00-126-6223 | 2024-01-23 | 39 | DIBBS |
| 5365-00-126-6223 | 2024-01-22 | 344 | DIBBS |
| 5365-00-126-6223 | 2023-08-237 | 2 | Malaysia |
| 5365-00-126-6223 | 2022-10-277 | 1003 | DIBBS |
| 5365-00-126-6223 | 2022-08-216 | 669 | DIBBS |
| 5365-00-126-6223 | 2022-07-205 | 669 | DIBBS |
| 5365-00-126-6223 | 2021-11-305 | 2 | Malaysia |
| 5365-00-126-6223 | 2021-10-290 | 913 | DIBBS |
| 5365-00-126-6223 | 2021-09-256 | 1258 | DIBBS |
| 5365-00-126-6223 | 2020-12-337 | 703 | DIBBS |
| 5365-00-126-6223 | 2020-10-281 | 633 | DIBBS |
| 5365-00-126-6223 | 2020-08-217 | 54 | DIBBS |
| 8756495 | 2020-07-211 | 138 | US |
| 5365-00-126-6223 | 2020-07-203 | 138 | DIBBS |
| 8756495 | 2020-01-06 | 3 | Malaysia |
| 5365-00-126-6223 | 2019-11-317 | 367 | DIBBS |
| 5365-00-126-6223 | 2019-05-143 | 364 | DIBBS |
| 5365-00-126-6223 | 2018-11-316 | 530 | DIBBS |
| 5365-00-126-6223 | 2018-03-74 | 242 | DIBBS |
| 5365-00-126-6223 | 2018-03-66 | 242 | DIBBS |
| 5365-00-126-6223 | 2015-05-134 | 802 | DIBBS |
| 5365-00-126-6223 | 2013-09-252 | 699 | DIBBS |
| 5365-00-126-6223 | 2013-04-101 | 417 | DIBBS |
| 5365-00-126-6223 | 2011-12-349 | 481 | DIBBS |
| 5365-00-126-6223 | 2011-12-343 | 182 | DIBBS |
| 5365-00-126-6223 | 2011-12-342 | 182 | DIBBS |
| 5365-00-126-6223 | 2011-02-40 | 440 | DIBBS |
| 5365-00-126-6223 | 2011-01-18 | 116 | DIBBS |
| 5365-00-126-6223 | 2010-11-305 | 463 | DIBBS |
| 5365-00-126-6223 | 2009-08-215 | 1940 | DIBBS |
| 5365-00-126-6223 | 2009-03-85 | 466 | DIBBS |
| 5365-00-126-6223 | 2009-02-36 | 59 | DIBBS |
Cross Reference | NSN 5365-00-126-6223
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8756495 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-126-6223
Related Products | NSN 5365-00-126-6223
Technical Data | NSN 5365-00-126-6223
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1045 OR STEEL COMP 1050 OR STEEL OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

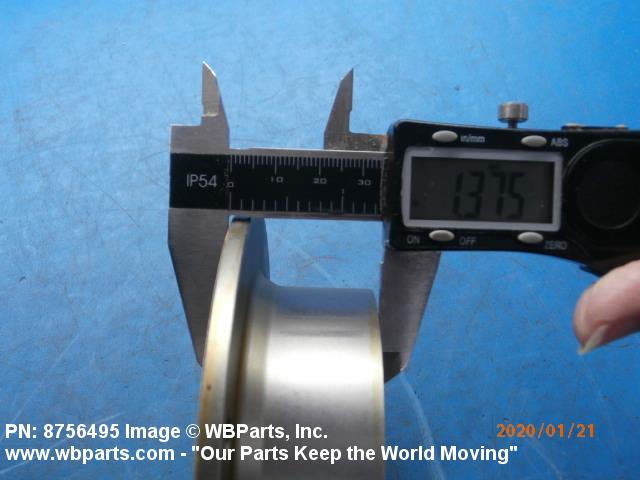

| OVERALL LENGTH | 1.3750 INCHES NOMINAL |

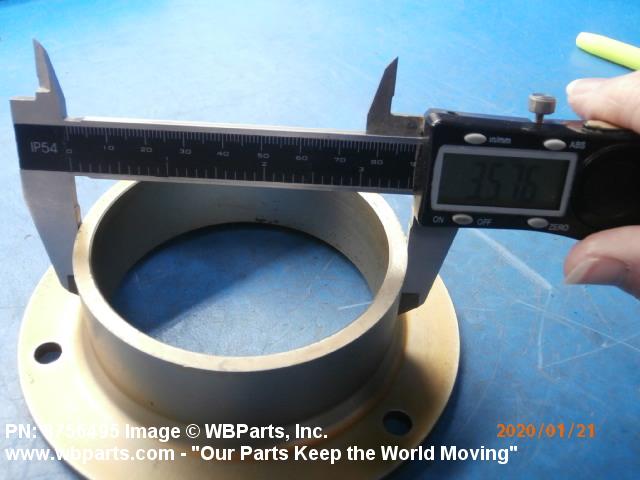

| BODY OUTSIDE DIAMETER | 3.5000 INCHES MINIMUM AND 3.6240 INCHES MAXIMUM |

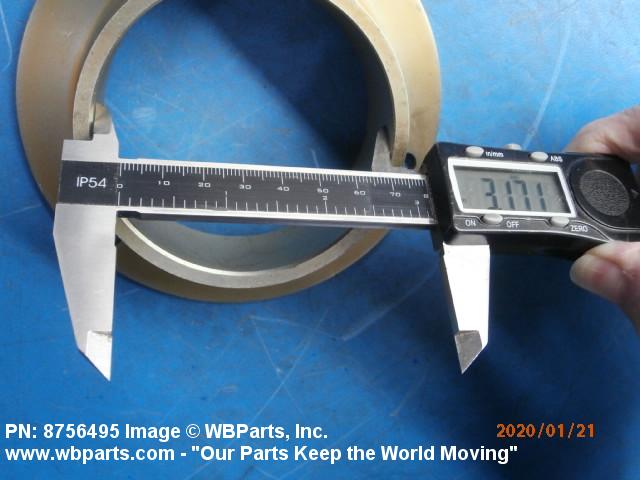

| BODY INSIDE DIAMETER | 3.1890 INCHES MINIMUM AND 3.1900 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 5.1870 INCHES NOMINAL |

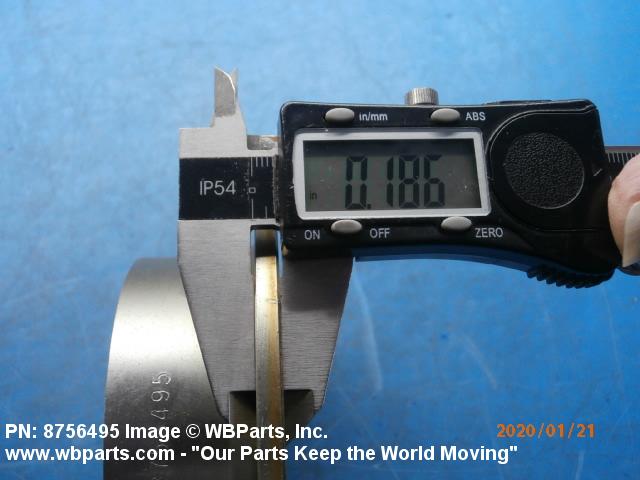

| FLANGE WIDTH | 0.1880 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
Restrictions/Controls & Freight Information | NSN 5365-00-126-6223
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-126-6223
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
