Product Details | MACHINE THREAD PLUG
5365-00-066-9530 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 204076290003, 204-076-290-003, 2040762903, 204-076-290-3, 5365-00-066-9530, 00-066-9530, 5365000669530, 000669530
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-066-9530 | 03801 ( PLUG, MACHINE THREAD ) |
Drawings & Photos | NSN 5365-00-066-9530
Demand History | NSN 5365-00-066-9530
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-066-9530 | 2020-10-303 | 12 | DIBBS |
| 5365-00-066-9530 | 2016-02-47 | 14 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-066-9530
Related Products | NSN 5365-00-066-9530
Technical Data | NSN 5365-00-066-9530
| Characteristic | Specifications |
|---|---|

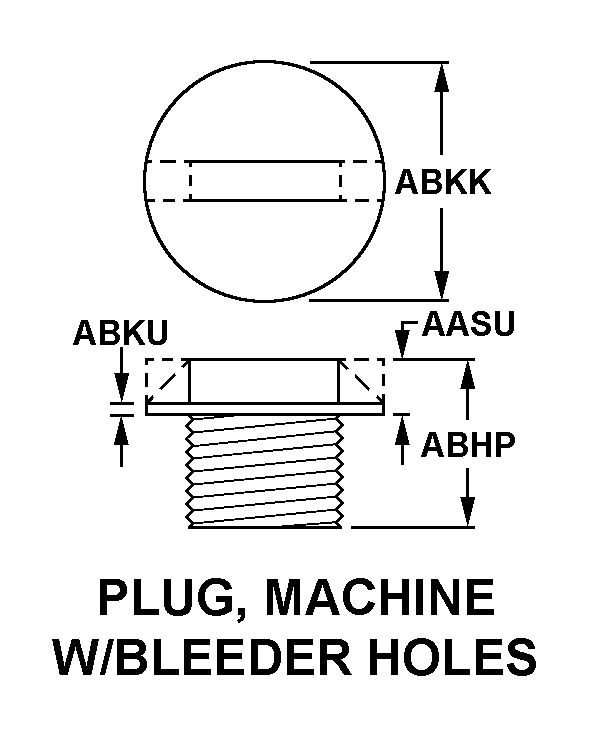

| STYLE DESIGNATOR | C46A PLUG, MACHINE, W/BLEEDER HOLE |
| HEAD HEIGHT | 0.760 INCHES NOMINAL |
| OVERALL LENGTH | 1.360 INCHES NOMINAL |
| FLANGE DIAMETER | 1.625 INCHES NOMINAL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| BLEEDER HOLE CENTER TO THREADED END DISTANCE | 0.125 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| BLEEDER HOLE DIAMETER | 0.062 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 1.312 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 12 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.600 INCHES NOMINAL EXTERNAL |
| BODY CORE DIAMETER | 0.188 INCHES NOMINAL |
| CORE DEPTH | 1.180 INCHES NOMINAL |
| SPECIAL FEATURES | BODY CORE COUNTERBORED 0.843 IN. ID BY 0.44 IN. DEEP AND CONTAINS A BELL SHAPED BAFFLE CEMENTED INTO COUNTERBORE |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 204-076-290-3 |
