NSN 5360-01-456-0374 0211020205, 0211020-205, 01-456-0374
Product Details | TORSION HELICAL SPRING
5360-01-456-0374 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 0211020205, 0211020-205, 5360-01-456-0374, 01-456-0374, 5360014560374, 014560374
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAY 1998 | 01-456-0374 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-01-456-0374
Demand History | NSN 5360-01-456-0374
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-01-456-0374 | 2016-04-20 | 1 | DIBBS |
| 5360-01-456-0374 | 2016-02-25 | 1 | DIBBS |
| 5360-01-456-0374 | 2015-12-09 | 2 | DIBBS |
| 5360-01-456-0374 | 2015-08-02 | 2 | DIBBS |
| 5360-01-456-0374 | 2015-06-16 | 2 | DIBBS |
| 5360-01-456-0374 | 2015-04-14 | 1 | DIBBS |
| 5360-01-456-0374 | 2015-04-06 | 1 | DIBBS |
| 5360-01-456-0374 | 2014-03-10 | 2 | DIBBS |
| 0211020-205 | 2013-07-18 | 3 | US |
Cross Reference | NSN 5360-01-456-0374
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0211020-205 | 98391 | ARKWIN INDUSTRIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-01-456-0374
Related Products | NSN 5360-01-456-0374
Technical Data | NSN 5360-01-456-0374
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 631 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5673 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

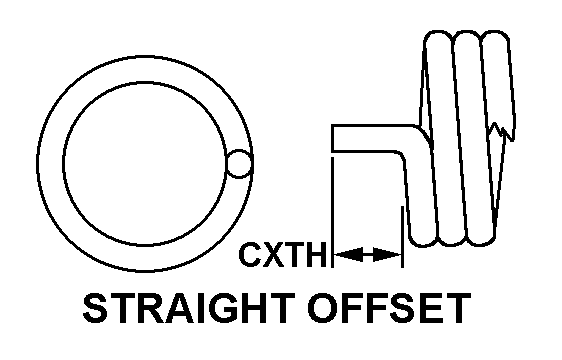

| END STYLE | G4 STRAIGHT OFFSET FIRST END |
| SPECIAL FEATURES | MANUFACTURER'S SUGGESTED NAME-SPRING, HELICAL |
| END ITEM IDENTIFICATION | F-15S |
Restrictions/Controls & Freight Information | NSN 5360-01-456-0374
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-01-456-0374
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
