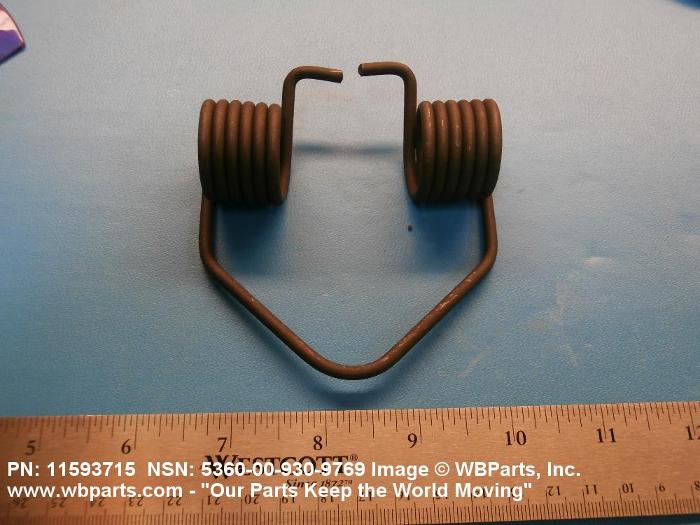

Product Details | TORSION HELICAL SPRING
5360-00-930-9769 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 11593715, 5360-00-930-9769, 00-930-9769, 5360009309769, 009309769
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUL 1966 | 00-930-9769 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-930-9769
Demand History | NSN 5360-00-930-9769
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-930-9769 | 2017-11-317 | 180 | DIBBS |
| 5360-00-930-9769 | 2017-11-306 | 180 | DIBBS |
| 5360-00-930-9769 | 2014-11-314 | 114 | DIBBS |
| 5360-00-930-9769 | 2014-10-303 | 114 | DIBBS |
| 5360-00-930-9769 | 2012-02-39 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-930-9769
Related Products | NSN 5360-00-930-9769
Technical Data | NSN 5360-00-930-9769
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ENAMEL OVERALL |
| STYLE DESIGNATOR | C1B SINGLE TORSION RIGHT HAND |
| INSIDE DIAMETER | 0.875 INCHES NOMINAL |
| SPRING FREE LENGTH | 3.500 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 1.171 INCHES NOMINAL |
| END LENGTH | 1.000 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM FIRST BEND TO SECOND BEND OR END | 0.562 INCHES NOMINAL OVERALL |
| CENTER SECTION WIDTH | 3.500 INCHES NOMINAL |
| COIL AXIS TO CENTER SECTION DISTANCE | 2.250 INCHES NOMINAL |
| CENTER LOOP RADIUS | 0.500 INCHES NOMINAL |
| CENTER TANGENT ANGLE | 50.0 DEGREES NOMINAL |

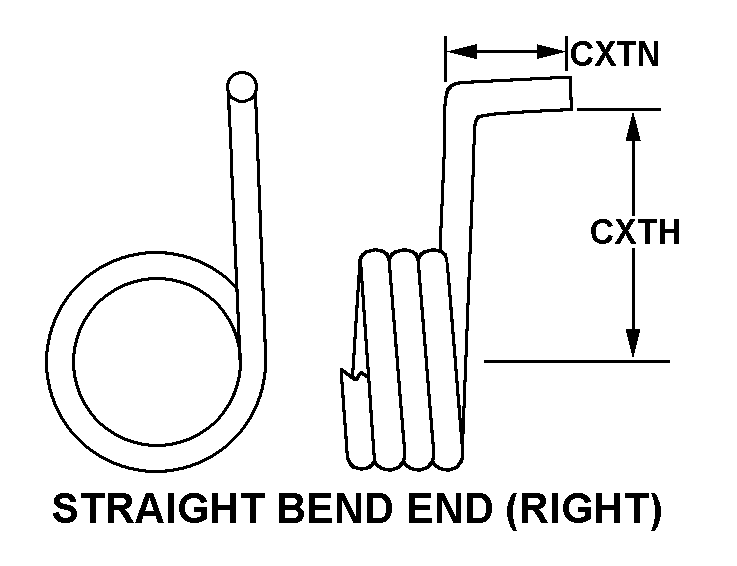

| END STYLE | G14 STRAIGHT BEND END (RIGHT) OVERALL |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| COIL QUANTITY | 6 |
| END ANGULAR RELATIONSHIP | END W/LH HELIX OF COIL ANGLED TO CENTER SECTION AND END W/RH HELIX OF COIL ANGLED TO CENTER SECTION |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 11593715 |
Restrictions/Controls & Freight Information | NSN 5360-00-930-9769
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
