Product Details | TORSION HELICAL SPRING
5360-01-395-1606 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 20106263, 2010626-3, 5360-01-395-1606, 01-395-1606, 5360013951606, 013951606
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 AUG 1994 | 01-395-1606 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-01-395-1606
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-01-395-1606
Technical Data | NSN 5360-01-395-1606
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 COND B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

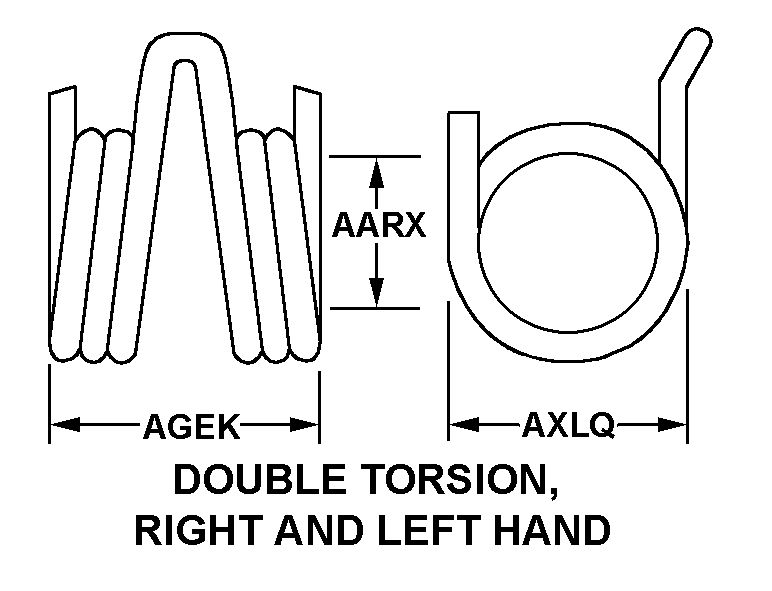

| STYLE DESIGNATOR | C2B DOUBLE TORSION RIGHT AND LEFT HAND |
| INSIDE DIAMETER | 0.580 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.440 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.718 INCHES NOMINAL |
| END LENGTH | 0.560 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM COIL AXIS TO FIRST BEND | 0.290 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM FIRST BEND TO SECOND BEND OR END | 0.270 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM SECOND BEND TO THIRD BEND OR END | 0.600 INCHES NOMINAL BOTH ENDS |
| CENTER LOOP RADIUS | 16.000 INCHES MINIMUM AND 20.000 INCHES MAXIMUM |
| END STYLE | G7 PARALLEL BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| STOCK DIAMETER | 0.069 INCHES NOMINAL |
| CENTER STYLE | K4 U TYPE |
| COIL QUANTITY | 4 |
| END ANGULAR RELATIONSHIP | END W/LH HELIX OF COIL PARALLEL TO CENTER SECTION OR END W/RH HELIX OF COIL PARALLEL TO CENTER SECTION |
| END ITEM IDENTIFICATION | NHA2010600; PACER DAWN |
| SUPPLEMENTARY FEATURES | SPRING SHALL OPERATE OVER A .500 DIA. PIN THRU TOTAL DEFLECTION OF 100 DEG |
| MANUFACTURERS CODE | 13002 |
| DESIGN CONTROL REFERENCE | 2010626-3 |
