Product Details | TORSION HELICAL SPRING

5360-01-251-9725 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs

Part Alternates: 12597069, 3602019064, 87XD1015, 5360-01-251-9725, 01-251-9725, 5360012519725, 012519725

Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 MAR 1987	01-251-9725	04228 ( SPRING, HELICAL, TORSION )

Drawings & Photos | NSN 5360-01-251-9725

Part Number	Request Date	QTY	Origin
5360-01-251-9725	2023-10-285	675	DIBBS
5360-01-251-9725	2023-08-229	652	DIBBS
5360-01-251-9725	2023-08-218	652	DIBBS
5360-01-251-9725	2021-09-252	738	DIBBS
5360-01-251-9725	2020-02-36	10	United States
5360-01-251-9725	2018-09-250	10	US
5360-01-251-9725	2017-06-165	10	United States
5360-01-251-9725	2010-09-258	3000	DIBBS
5360-01-251-9725	2010-09-250	6	US
5360-01-251-9725	2010-09-246	3000	DIBBS
5360-01-251-9725	2010-08-222	1700	DIBBS
5360-01-251-9725	2010-05-134	2050	DIBBS

Cross Reference | NSN 5360-01-251-9725

Part Number	Cage Code	Manufacturer
12597069	19200	US ARMY ARDEC RDECOM
3602019064	3S679	FN AMERICA, LLC
87XD1015	3S679	FN AMERICA, LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5360-01-251-9725

Compare

Related Products | NSN 5360-01-251-9725

5360-01-251-9726, 5360-01-252-0320, 5360-01-252-0463, 5360-01-252-0464, 5360-01-252-0853

Technical Data | NSN 5360-01-251-9725

Characteristic	Specifications
SURFACE TREATMENT	PHOSPHATE MANGANESE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	57-02C,TYPE 3,CLASS A,GRADE 1 MFR REF SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	C1A SINGLE TORSION LEFT HAND
INSIDE DIAMETER	8.0 MILLIMETERS NOMINAL
SPRING FREE LENGTH	8.6 MILLIMETERS NOMINAL
SPRING FREE OUTSIDE DIAMETER	14.9 MILLIMETERS NOMINAL
END LENGTH FROM FIRST BEND TO SECOND BEND OR END	5.7 MILLIMETERS NOMINAL FIRST END 5.7 MILLIMETERS NOMINAL SECOND END

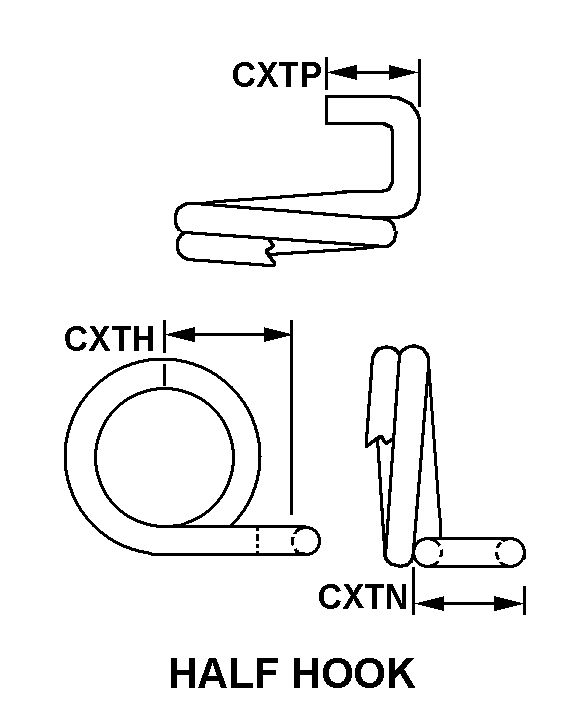

END STYLE	G25 HALF HOOK FIRST END G33 STRAIGHT HOOK END SECOND END
COIL HELIX DIRECTION	RIGHT-HAND OR LEFT-HAND
SPECIAL FEATURES	HEAT TREATMENT=STRESS RELIEVE AT 260 DEG. C. FOR 30 MIN.; HYDROGEN EMBRITTLEMENT RELIEVED PER DOD-P-16232
MANUFACTURERS CODE	19200
DESIGN CONTROL REFERENCE	12597069
