Product Details | TORSION HELICAL SPRING

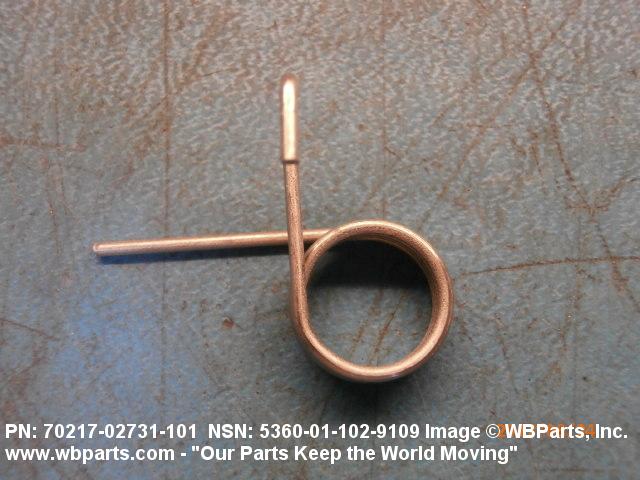

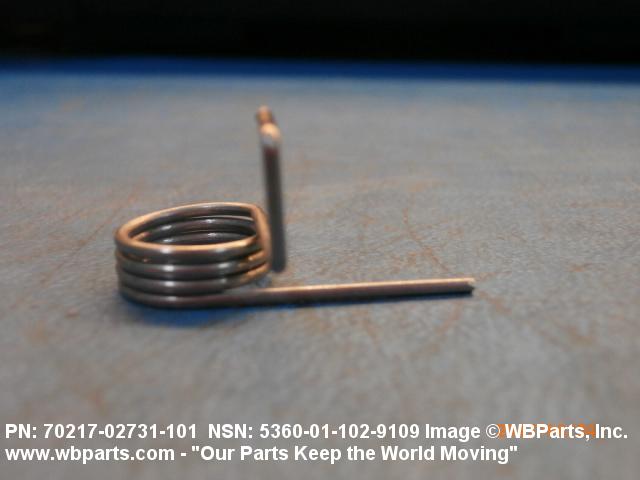

5360-01-102-9109 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs

Part Alternates: 70217-02731-101, 5360-01-102-9109, 01-102-9109, 5360011029109, 7021702731101, 011029109

Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	30 OCT 1980	01-102-9109	04228 ( SPRING, HELICAL, TORSION )

Drawings & Photos | NSN 5360-01-102-9109

Part Number	Request Date	QTY	Origin
5360-01-102-9109	2023-03-83	500	DIBBS
5360-01-102-9109	2023-03-72	500	DIBBS
5360-01-102-9109	2022-03-76	197	DIBBS
7021-70-273-1101	2020-11-308	4	United States
5360-01-102-9109	2017-12-347	578	DIBBS
5360-01-102-9109	2017-05-139	10	MANUAL
70217-02731-101	2017-05-139	10	Taiwan
5360-01-102-9109	2017-01-04	462	DIBBS
5360-01-102-9109	2016-06-168	376	DIBBS
5360-01-102-9109	2016-06-160	376	DIBBS
5360-01-102-9109	2012-08-226	875	DIBBS
5360-01-102-9109	2012-05-146	1069	DIBBS
5360-01-102-9109	2009-10-289	832	DIBBS

Cross Reference | NSN 5360-01-102-9109

Part Number	Cage Code	Manufacturer
70217-02731-101	78286	SIKORSKY AIRCRAFT CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5360-01-102-9109

Compare

Related Products | NSN 5360-01-102-9109

5360-01-102-9623, 5360-01-102-9695, 5360-01-103-0128, 5360-01-103-0250, 5360-01-103-0251

Technical Data | NSN 5360-01-102-9109

Characteristic	Specifications
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	C1A SINGLE TORSION LEFT HAND
INSIDE DIAMETER	0.398 INCHES NOMINAL
SPRING FREE LENGTH	0.245 INCHES NOMINAL
SPRING FREE OUTSIDE DIAMETER	0.500 INCHES NOMINAL
CENTER SECTION WIDTH	0.380 INCHES NOMINAL
COIL AXIS TO CENTER SECTION DISTANCE	0.590 INCHES NOMINAL
COIL HELIX DIRECTION	LEFT-HAND
COIL QUANTITY	3-3/4
END ANGULAR RELATIONSHIP	END W/LH HELIX OF COIL PARALLEL TO CENTER SECTION

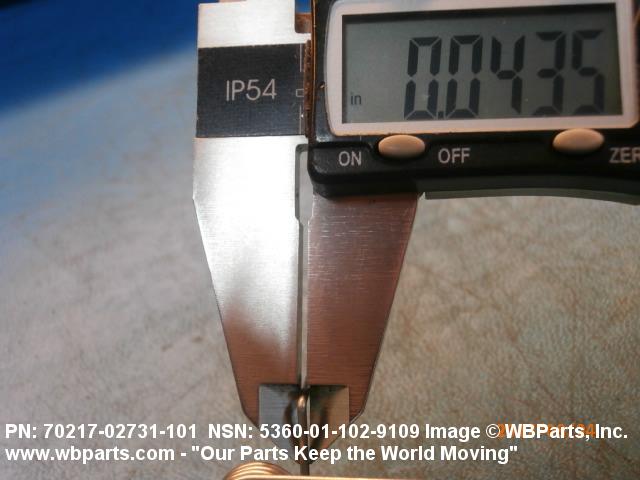

SPECIAL FEATURES	MADE OF 0.044 INCH DIAMETER WIRE
MANUFACTURERS CODE	78286
DESIGN CONTROL REFERENCE	70217-02731-101
