NSN 5360-01-096-5783 70250-13017-101, 01-096-5783, 7025013017101
Product Details | TORSION HELICAL SPRING
5360-01-096-5783 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 70250-13017-101, 5360-01-096-5783, 01-096-5783, 5360010965783, 7025013017101, 010965783
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUN 1980 | 01-096-5783 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-01-096-5783
Cross Reference | NSN 5360-01-096-5783
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70250-13017-101 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-01-096-5783
Related Products | NSN 5360-01-096-5783
Technical Data | NSN 5360-01-096-5783
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | TIN OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-T-10727,TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C1B SINGLE TORSION RIGHT HAND |
| CENTER SECTION WIDTH | 0.520 INCHES MINIMUM AND 0.540 INCHES MAXIMUM |
| COIL AXIS TO CENTER SECTION DISTANCE | 0.430 INCHES MINIMUM AND 0.490 INCHES MAXIMUM |

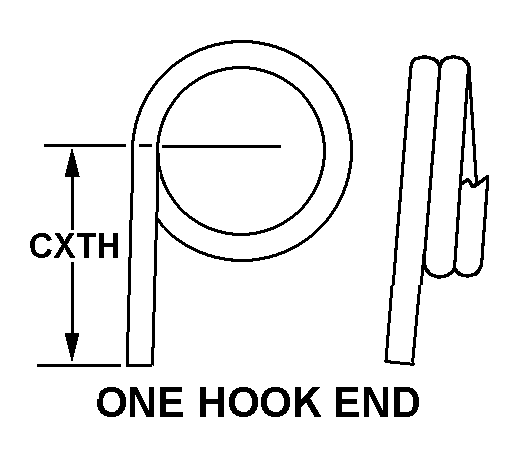

| END STYLE | G3 ONE HOOK END OVERALL |
| COIL QUANTITY | 4-51/64 |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 70250-13017-101 |
