Product Details | TORSION HELICAL SPRING

5360-01-035-3533 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs

Part Alternates: 0009937331, 000993-733-1, 7447222-01, 5360-01-035-3533, 01-035-3533, 5360010353533, 010353533, 744722201

Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 FEB 1977	01-035-3533	04228 ( SPRING, HELICAL, TORSION )

Drawings & Photos | NSN 5360-01-035-3533

Part Number	Request Date	QTY	Origin
5360-01-035-3533	2024-05-149	149	DIBBS
5360-01-035-3533	2024-05-144	33	DIBBS
5360-01-035-3533	2024-05-133	33	DIBBS
5360-01-035-3533	2022-03-79	71	DIBBS
5360-01-035-3533	2021-12-356	67	DIBBS
5360-01-035-3533	2021-12-347	31	DIBBS
5360-01-035-3533	2021-12-341	67	DIBBS
5360-01-035-3533	2021-12-335	31	DIBBS
5360-01-035-3533	2021-11-326	67	DIBBS
5360-01-035-3533	2021-10-284	13	DIBBS
5360-01-035-3533	2021-07-210	53	DIBBS
5360-01-035-3533	2021-07-199	53	DIBBS
5360-01-035-3533	2020-07-188	143	DIBBS
5360-01-035-3533	2020-06-180	143	DIBBS
5360-01-035-3533	2013-03-72	237	DIBBS
5360-01-035-3533	2012-04-94	175	DIBBS
5360-01-035-3533	2011-12-361	125	DIBBS

Cross Reference | NSN 5360-01-035-3533

Part Number	Cage Code	Manufacturer
000993-733-1	98752	WARNER ROBINS AIR LOGISTICS CENTER
7447222-01	98750	SAN ANTONIO AIR LOGISTICS CENTER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5360-01-035-3533

Compare

Related Products | NSN 5360-01-035-3533

5360-01-035-3534, 5360-01-035-3535, 5360-01-035-3536, 5360-01-035-3562, 5360-01-035-3563

Technical Data | NSN 5360-01-035-3533

Characteristic	Specifications
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
STYLE DESIGNATOR	C1A SINGLE TORSION LEFT HAND
INSIDE DIAMETER	1.151 INCHES NOMINAL
SPRING FREE LENGTH	0.780 INCHES NOMINAL
SPRING FREE OUTSIDE DIAMETER	1.411 INCHES NOMINAL
END LENGTH	1.687 INCHES NOMINAL BOTH ENDS
END LENGTH FROM COIL AXIS TO FIRST BEND	0.937 INCHES NOMINAL OVERALL
END LENGTH FROM FIRST BEND TO SECOND BEND OR END	0.750 INCHES NOMINAL OVERALL

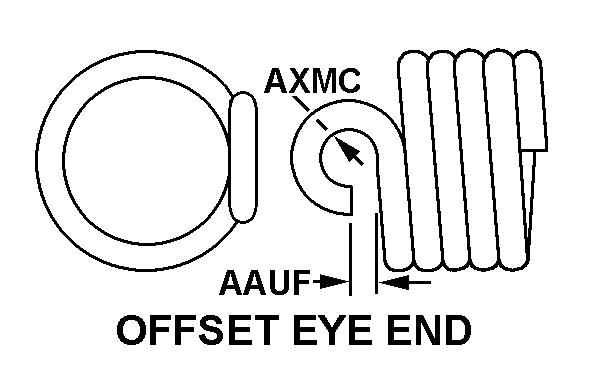

END STYLE	G49 OFFSET EYE END OVERALL
COIL HELIX DIRECTION	RIGHT-HAND
COIL QUANTITY	6
END ANGULAR RELATIONSHIP	ENDS ANGLED ONE TO OTHER
MANUFACTURERS CODE	98752
DESIGN CONTROL REFERENCE	000993-733-1
