NSN 5360-00-931-5539 12C1107, 12C110-7, 00-931-5539
Product Details | TORSION HELICAL SPRING
5360-00-931-5539 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 12C1107, 12C110-7, 5360-00-931-5539, 00-931-5539, 5360009315539, 009315539
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1966 | 00-931-5539 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-931-5539
Cross Reference | NSN 5360-00-931-5539
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12C110-7 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-931-5539
Technical Data | NSN 5360-00-931-5539
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 631 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5673,COMP 17-7PH ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 2.025 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.550 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 2.295 INCHES NOMINAL |
| HOOK RADIUS | 0.068 INCHES NOMINAL OVERALL |

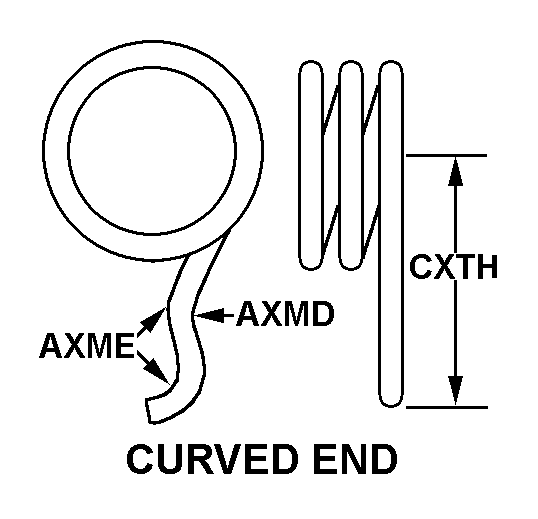

| END STYLE | G51 CURVED END OVERALL |
| COIL HELIX DIRECTION | LEFT-HAND |
| COIL QUANTITY | 8-3/4 |
| END ANGULAR RELATIONSHIP | END W/LH HELIX OF COIL PARALLEL TO CENTER SECTION |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 12C110-7 |
Restrictions/Controls & Freight Information | NSN 5360-00-931-5539
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
