NSN 5360-00-829-5538 2813537501, 2813537-501, 291AS235
Product Details | TORSION HELICAL SPRING
5360-00-829-5538 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 2813537501, 2813537-501, 291AS235, 60A128B26501, 60A128B26-501, 67B45255, 67B4525501, 67B45255-01, 5360-00-829-5538, 00-829-5538, 5360008295538, 008295538
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-829-5538 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-829-5538
Demand History | NSN 5360-00-829-5538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-829-5538 | 2019-03-76 | 7328 | DIBBS |
| 5360-00-829-5538 | 2019-02-38 | 161291 | DIBBS |
| 5360-00-829-5538 | 2018-11-311 | 10000 | DIBBS |
| 5360-00-829-5538 | 2018-11-309 | 2954 | DIBBS |
| 5360-00-829-5538 | 2018-08-238 | 6937 | DIBBS |
| 5360-00-829-5538 | 2018-08-232 | 2954 | DIBBS |
| 5360-00-829-5538 | 2018-04-105 | 6937 | DIBBS |
| 5360-00-829-5538 | 2017-02-51 | 5510 | DIBBS |
| 5360-00-829-5538 | 2016-09-272 | 6977 | DIBBS |
| 5360-00-829-5538 | 2016-01-11 | 9890 | DIBBS |
| 5360-00-829-5538 | 2015-06-154 | 6313 | DIBBS |
| 5360-00-829-5538 | 2012-04-104 | 8001 | DIBBS |
| 5360-00-829-5538 | 2010-05-130 | 12471 | DIBBS |
| 5360-00-829-5538 | 2010-03-90 | 12470 | DIBBS |
| 5360-00-829-5538 | 2009-11-313 | 10082 | DIBBS |
Cross Reference | NSN 5360-00-829-5538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2813537-501 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 291AS235 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 60A128B26-501 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 60A128B26-501 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 67B45255 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 67B45255-01 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-829-5538
Related Products | NSN 5360-00-829-5538
Technical Data | NSN 5360-00-829-5538
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C1B SINGLE TORSION RIGHT HAND |
| INSIDE DIAMETER | 0.314 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.625 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.438 INCHES NOMINAL |
| END LENGTH | 0.812 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM FIRST BEND TO SECOND BEND OR END | 0.250 INCHES NOMINAL OVERALL |
| END LENGTH FROM SECOND BEND TO THIRD BEND OR END | 0.062 INCHES NOMINAL OVERALL |
| CENTER SECTION WIDTH | 0.625 INCHES NOMINAL |
| COIL AXIS TO CENTER SECTION DISTANCE | 0.812 INCHES NOMINAL |

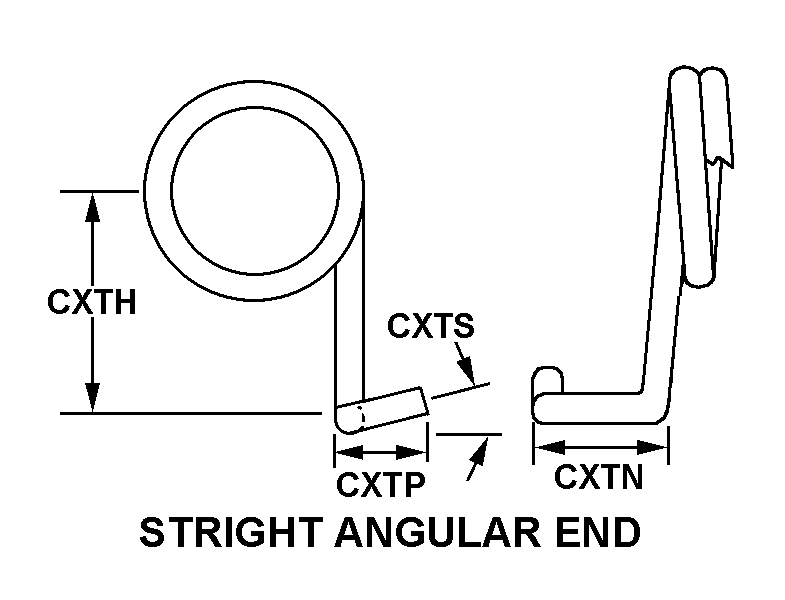

| END STYLE | G32 STRAIGHT ANGULAR END OVERALL |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| END ANGULAR RELATIONSHIP | ENDS ANGLED ONE TO OTHER |
Restrictions/Controls & Freight Information | NSN 5360-00-829-5538
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-829-5538
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GG | TG:GUNNERY EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
