Product Details | TORSION HELICAL SPRING
5360-00-829-1328 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 10920757, 5360-00-829-1328, 00-829-1328, 5360008291328, 008291328
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-829-1328 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-829-1328
Demand History | NSN 5360-00-829-1328
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-829-1328 | 2020-10-297 | 517 | DIBBS |
| 5360-00-829-1328 | 2020-10-281 | 517 | DIBBS |
| 5360-00-829-1328 | 2020-06-177 | 599 | DIBBS |
| 5360-00-829-1328 | 2014-11-317 | 533 | DIBBS |
| 5360-00-829-1328 | 2013-05-148 | 469 | DIBBS |
| 5360-00-829-1328 | 2011-11-311 | 277 | DIBBS |
| 5360-00-829-1328 | 2010-08-215 | 41 | DIBBS |
| 5360-00-829-1328 | 2010-05-141 | 119 | DIBBS |
| 5360-00-829-1328 | 2009-11-327 | 58 | DIBBS |
Cross Reference | NSN 5360-00-829-1328
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10920757 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-829-1328
Related Products | NSN 5360-00-829-1328
Technical Data | NSN 5360-00-829-1328
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-412,TYPE 1 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C1B SINGLE TORSION RIGHT HAND |
| INSIDE DIAMETER | 0.562 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.218 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.796 INCHES MINIMUM AND 0.827 INCHES MAXIMUM |
| END LENGTH | 1.438 INCHES MINIMUM AND 1.562 INCHES MAXIMUM BOTH ENDS |
| END LENGTH FROM COIL AXIS TO FIRST BEND | 1.125 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM FIRST BEND TO SECOND BEND OR END | 0.375 INCHES NOMINAL BOTH ENDS |
| END TANGENT ANGLE | 30.0 DEGREES NOMINAL |
| CENTER SECTION WIDTH | 0.984 INCHES NOMINAL |
| COIL AXIS TO CENTER SECTION DISTANCE | 2.415 INCHES NOMINAL |
| CENTER LOOP RADIUS | 0.375 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| END STYLE | G38 STRAIGHT ANGULAR END BOTH ENDS |
| COIL HELIX DIRECTION | LEFT-HAND OR RIGHT-HAND |

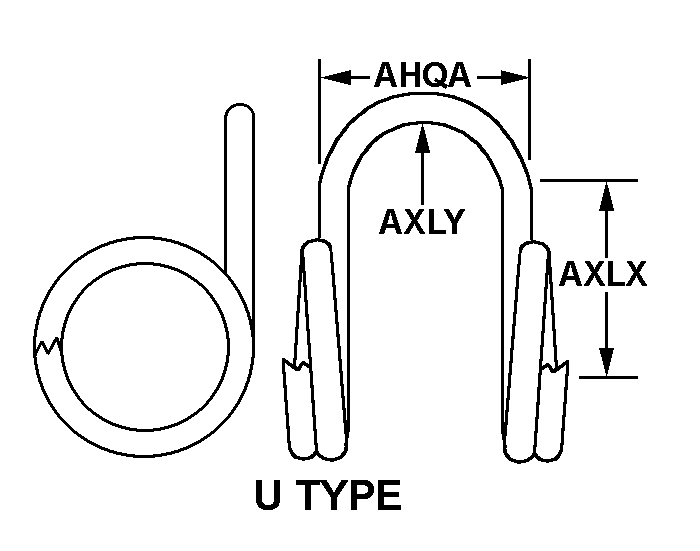

| CENTER STYLE | K4 U TYPE |
| END ANGULAR RELATIONSHIP | END W/LH HELIX OF COIL ANGLED TO CENTER SECTION AND END W/RH HELIX OF COIL ANGLED TO CENTER SECTION |
