NSN 5360-00-778-9496 F819670PC6, 6083001989560PC6, 608-300-1989560PC6
Product Details | TORSION HELICAL SPRING
5360-00-778-9496 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: F819670PC6, 6083001989560PC6, 608-300-1989560PC6, 69E801686, 6-9E801686, 5360-00-778-9496, 00-778-9496, 5360007789496, 007789496
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-778-9496 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-778-9496
Demand History | NSN 5360-00-778-9496
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-778-9496 | 2017-02-54 | 28 | DIBBS |
| 5360-00-778-9496 | 2012-05-128 | 33 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-778-9496
Technical Data | NSN 5360-00-778-9496
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 0.625 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.500 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.743 INCHES NOMINAL |
| HOOK OPENING WIDTH | 0.118 INCHES NOMINAL FIRST END |
| HOOK RADIUS | 0.094 INCHES NOMINAL FIRST END |
| END LENGTH | 0.941 INCHES NOMINAL FIRST END 1.066 INCHES NOMINAL SECOND END |
| END LENGTH FROM SECOND BEND TO THIRD BEND OR END | 0.188 INCHES NOMINAL SECOND END |

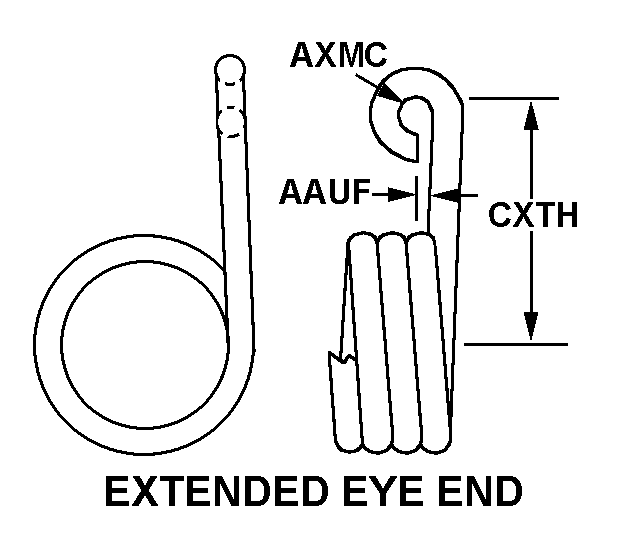

| END STYLE | G12 EXTENDED EYE END FIRST END G21 ANGULAR END SECOND END |
| COIL HELIX DIRECTION | LEFT-HAND |
| COIL QUANTITY | 5-3/4 |
| END ANGULAR RELATIONSHIP | ENDS ANGLED ONE TO OTHER |
| MANUFACTURERS CODE | 82796 |
| DESIGN CONTROL REFERENCE | 6-9E801686 |
